Module

Name: Module
Brand: Dahua
SKU: VTO4103F-MK

Stock Code: VTO4103F-MK

Black panel module with a mechanical keypad

A module that adds a mechanical keypad to a modular panel system. The black aluminum alloy body measures 100 × 100 mm and combines IK07 impact resistance with IP65 dust and water protection. It draws power from the other modules and passes 5 V DC to the modules on the same line.

IP65Protection Grade

IK07Impact Resistance

-30 °C to +60 °COperating Temperature

5 V DCPower Supply

100 × 100 mmDimensions

Key features

Mechanical keypadThe module brings a mechanical keypad to the panel.

Black aluminum bodyThe aluminum alloy casing comes in black on this model.

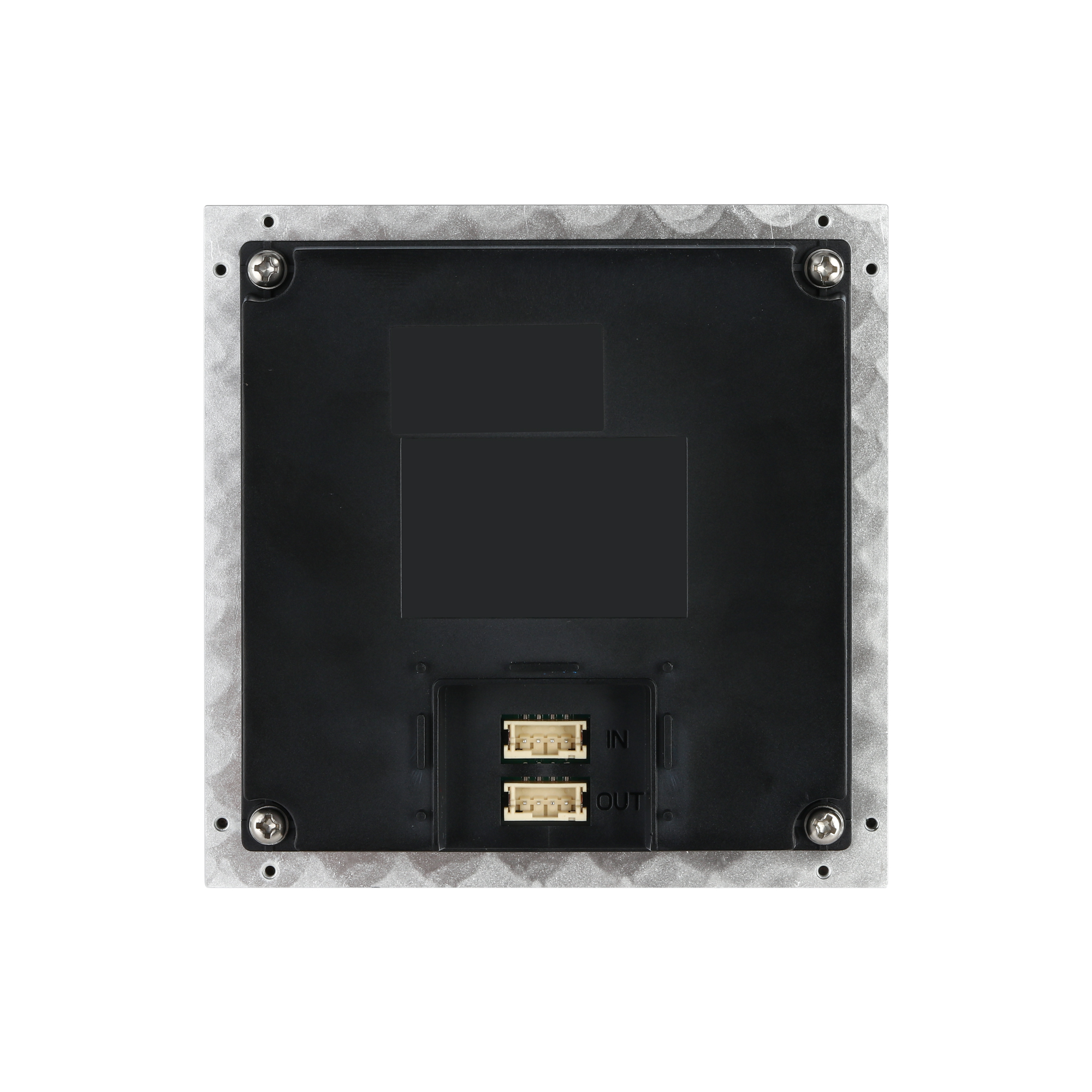

Modular powerIt draws power from the other modules and feeds 5 V DC to the modules on the same line.

Flush and surface mountIt supports both flush mount and surface mount installation.

Operating conditionsIt works between -30 °C and +60 °C and withstands 10% to 90% relative humidity.

Installation requires silicone sealant; the IP65 rating depends on it.

General Specifications
Casing Material	Aluminum Alloy
Appearance Color	Silver / Black (MK Model)
Power Input	5V DC (Supplied by other modules)
Power Output	5V DC (To power other modules)
Protection Rating	IP65 (Silicone sealant required); IK07
Operating Temperature	–30 °C to +60 °C
Mounting Type	Flush Mount / Surface Mount
Operating Humidity	10% – 90% (RH)
Module Models and Specific Functions
MB1 / MB2 / MB5	1 / 2 / 5 Mechanical Call Button (Size: 100 × 50, MB5: 100 × 100 mm)
MDB2 / MDB4 / MDB10	Multi-button Modules (Size: 100 × 50, MDB10: 100 × 100 mm)
MR (IC) / MR1 (ID)	Card Reader (Mifare 13.56 MHz / ID 125 kHz) - 100 × 50 × 28.5 mm
MK / MF	MK: Mechanical Keypad / MF: Fingerprint Reader - 100 × 100 mm
MI / ML / MN	MI: Indicator / ML: Status / MN: Blank Panel (Variable Width)
MV	Vigik Module Mounting Panel - 100 × 50 × 6 mm

Datasheet

VTO4103F-MK DATA

12/11/2026

Kullanım Kılavuzu

VTO4103F-MK KULLANIM KILAVUZU

12/11/2026

Teknik Çizim

VTO4103F-MK TEKNİK ÇİZİM

12/11/2026
