It watches the doorway at a wide angle and carries the call to the apartment.

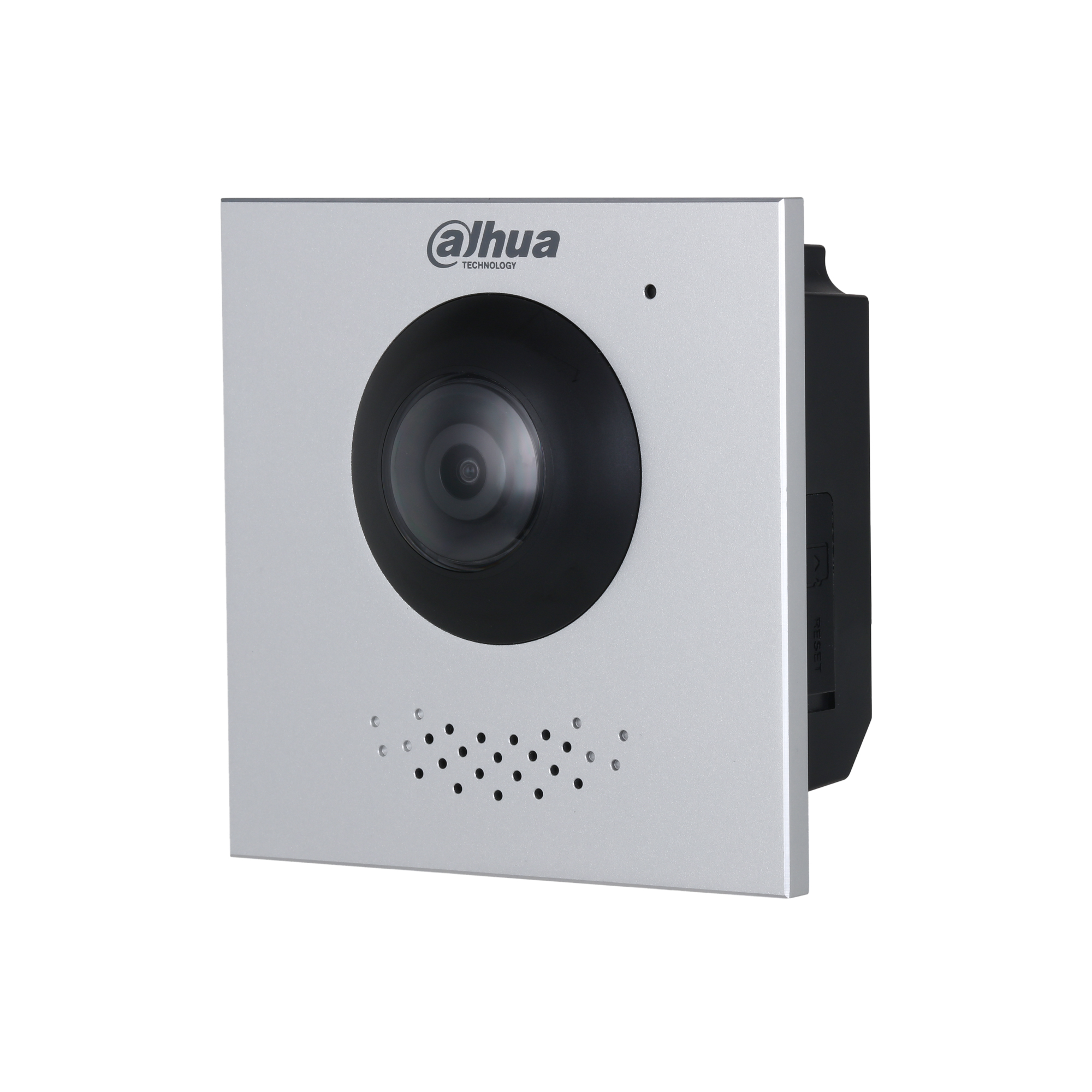

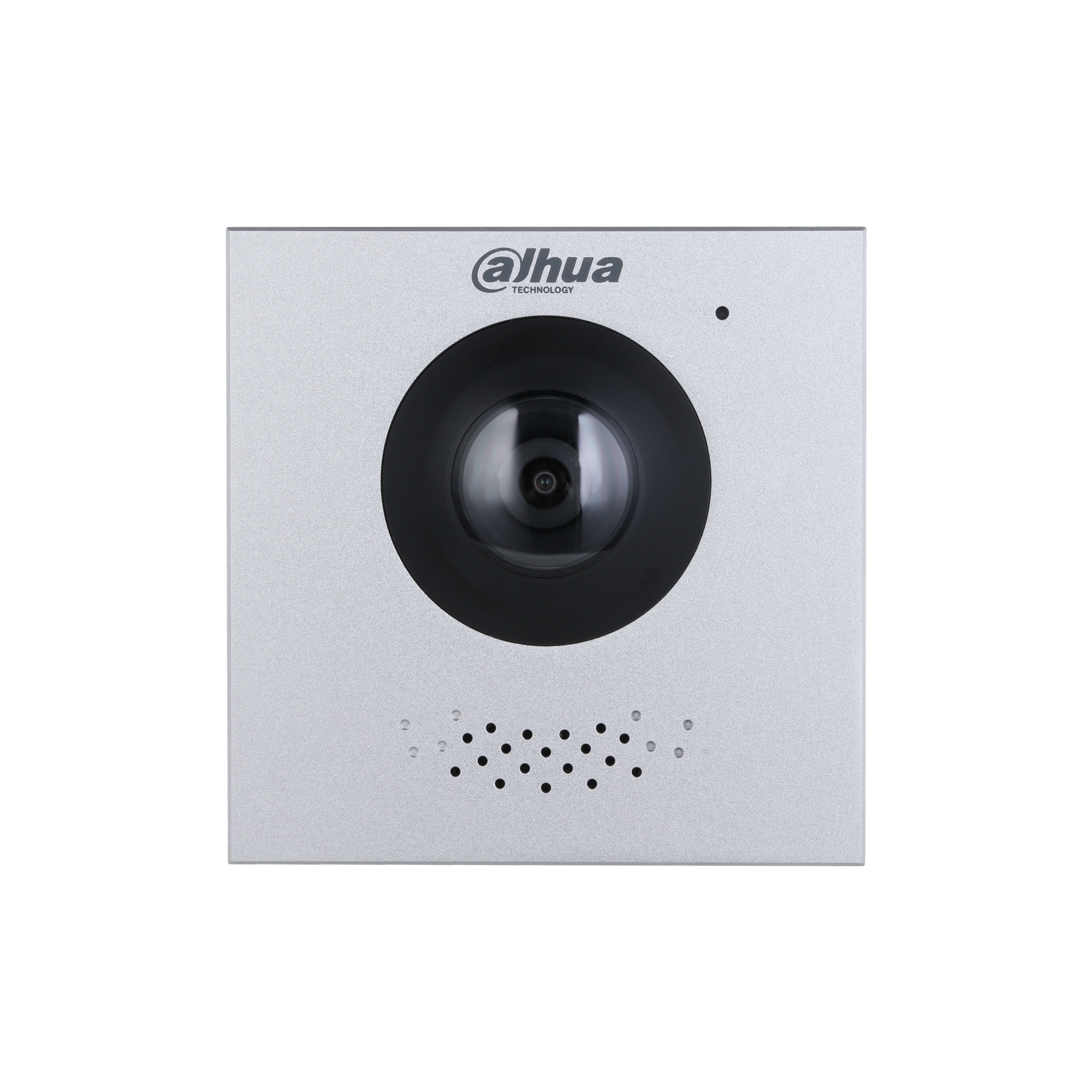

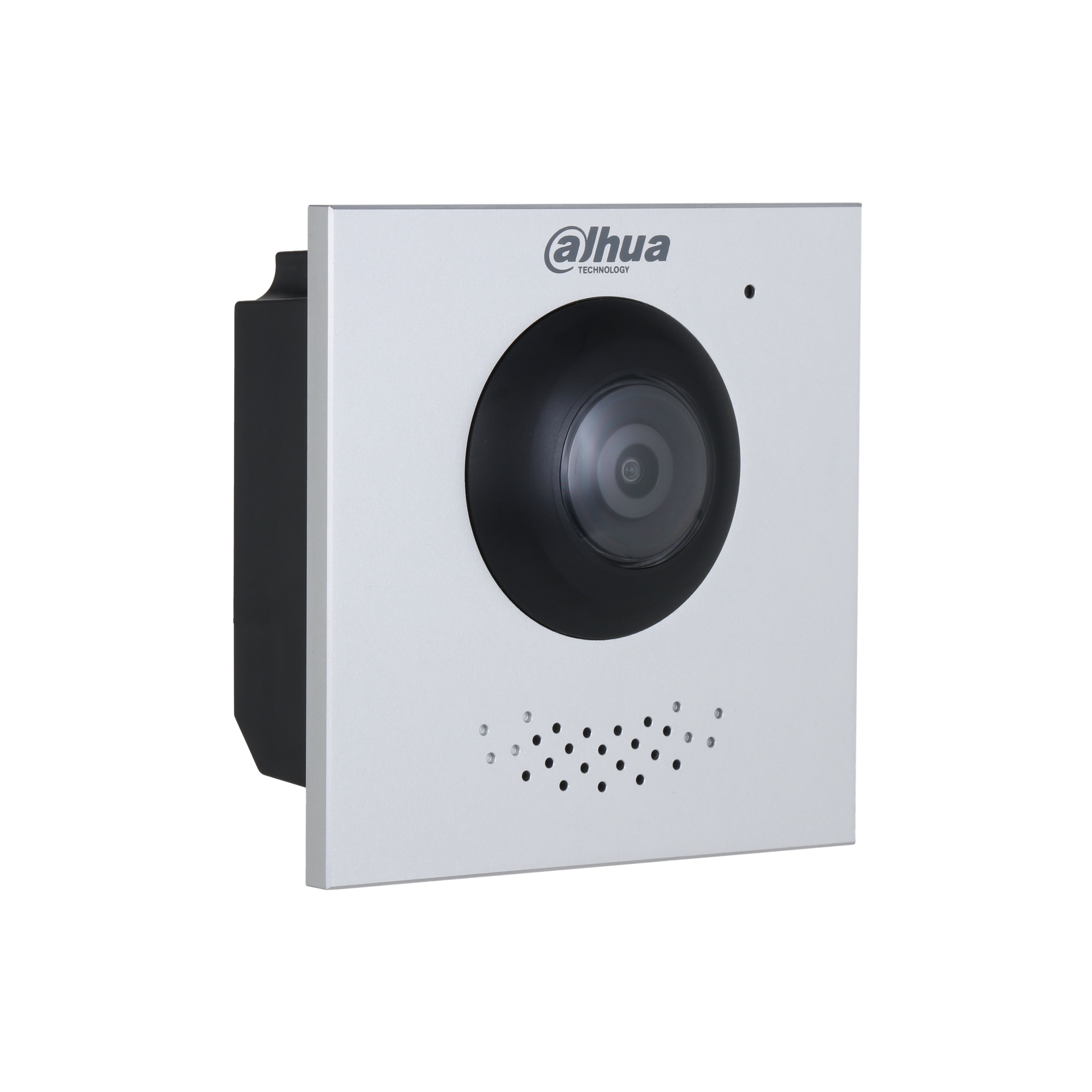

The video intercom unit of the modular apartment panel. With its anodized aluminum front panel and a 168.6-degree 2 MP camera it watches the doorway and passes the visitor call to the apartment and to the mobile app.

2 MPColor camera

168.6°Horizontal field of view

120 dBWDR

IP65 · IK07Protection Grade

PoEPower Options

600 mAModule power output

Key features

Wide-angle cameraA 1/2.9-inch 2 MP CMOS sensor covers a wide area in front of the door at a 168.6-degree horizontal angle.

Night viewAuto ICR turns from color to black and white in low light.

Remote unlockingThe resident talks to the visitor from the mobile app and unlocks the door remotely.

Module powerA 12 VDC 600 mA output powers the extension module or the card reader.

Video messageIf nobody answers, it leaves a video message, and it supports Micro SD cards up to 256 GB.

Rugged housingThe silver anodized aluminum casing protects the unit at IP65 and IK07 level. It supports surface and flush mounting.

Silicone sealant is required on the housing for the IP65 rating; if a load is powered from the 12 V output, a PSE switch compliant with 802.3.at is required.

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Interoperability

CGI; ONVIF

Network Protocol

UDP; TCP; IPv4; DNS; RTSP; UPnP; SIP; P2P; RTP

Camera

Image Sensor

1/2.9" 2 MP CMOS

Field of View

H: 168.6°; V: 87.1°; D: 176.7°

WDR / Noise Reduction

120 dB / 3D NR

Day/Night

Auto (ICR) / Color / B/W

Video & Audio

Compression

Video: H.265; H.264 | Audio: G.711a; G.711u; PCM

Audio Features

Two-way audio; Echo cancellation; Noise reduction

Function & Capacity

Unlock Mode

Remote unlock

Storage

Supports Micro SD card (up to 256 GB)

Card Capacity

3,000 cards

Special Functions

Leave videos; Tamper alarm

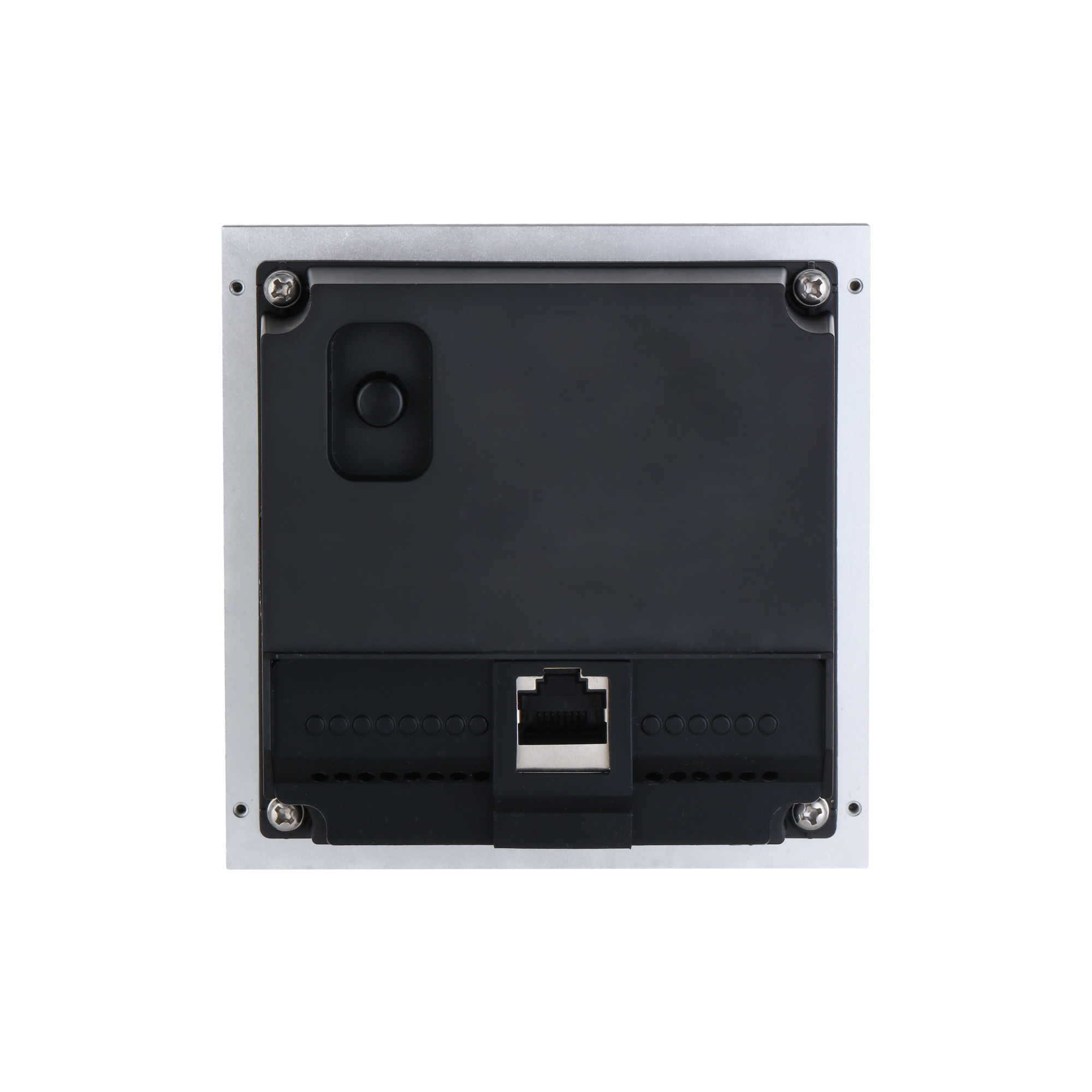

Ports & Power

Connectivity

1x RS-485; 1x RJ-45 (10/100 Mbps); 1x Alarm Out; 1x Lock

Control Ports

1x Exit Button; 1x Door Status; 1x Tamper Alarm

Power Supply

12 V DC, 2 A; PoE (802.3af/at)

General

Protection / Material

IP65; IK07 / Aluminum Casing (Silver)

Operating Temperature

–30°C ~ +60°C (–22°F ~ +140°F)

Dimensions / Weight

100.0 mm × 100.0 mm × 49.4 mm / 0.43 kg
