| LCD |
|---|

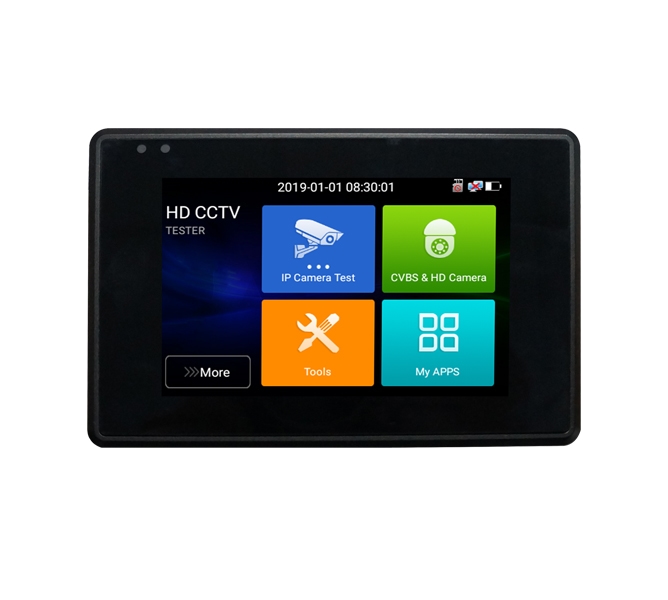

| Item Series | IPC-2000 Plus |
| Display | New 4 inch IPS input, NTSC/PAL (Auto adapt) |
| Video Mode |
| CVBS |
| 1 channel BNC input, NTSC/PAL (Auto adapt) |
| PTZ control, RS485 control, Vaud 600-115200bps, compatible with more than 30 protocols such as PELCI-D/P, Samsung, Panasonic etc. |
|
IP Camera Test
4K/H.265/H.264 |
| IP Discovery / Quick ONVIF/IPC test / RTSP play / Client APK |
| Rapid Video | Auto view the video, create testing report |
| Hik test tool | Pressing just one key to activate hikvision camera, image test, can modify the user name, password and IP parameters |
| Dahua test tool | Dahua camera test, modify the user name, password and IP parameters |
|
| IP/CVBS Test | IP/CVBS test at the same time, converter test from analog to digital with dual test window |
| Coaxial HD Test |
| 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control & call OSD menu |
| 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu |
| 8MP AHD test, 3840x2160P 15 FPS, UTC control & call OSD menu |
|
| Zoom Image | 4 x zoom, to enlarge image, screen snapshot, record, save, view, record and play back |
|
| Power Output |
| 12V 3A power output | DC12V 3A power out, supply temporarily power for the camera |
| PoE power output | 48V PoE power output, max power 24W |
|
| Network Test | Link monitor, port flashing, Ping test |
| Audio Test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data Monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal |
| Drop-down Menu | You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface |
| External Power Supply | DC 12V/1A |
| Battery | Built-in 7.4V Lithium polymer battery, 2400mAh |
| Rechargeable | After charging 4~5 hours, normal working time 7 hours |
| Operation Setting | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish etc. |
| Auto Off | 1-30 (mins) |
| Working Humidity | 30%-90% |
| Dimension/Weight | 126mm x 83mm x 33mm / 0.7kg |
