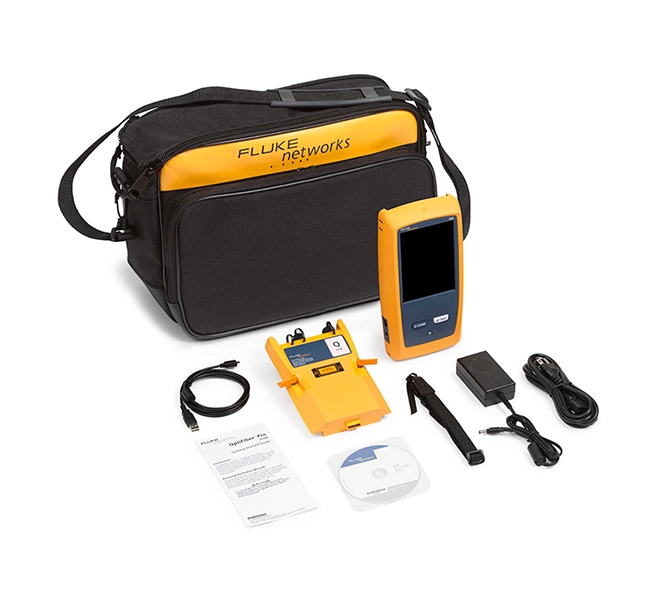

Stock Code: OFP2-100-Q INT
| Key OptiFiber Pro OTDR Specifications | |
|---|---|
| Specifications | Multimode Module / Singlemode Module |
| Wavelengths | Multimode: 850 nm +/- 10 nm; 1300 nm +35/-15 nm Singlemode: 1310 nm +/- 25 nm; 1550 nm +/- 30 nm |
| Compatible fiber types | Multimode: 50/125 µm; 62.5/125 µm Singlemode: Singlemode |
| Event dead zone 1 | Multimode: 850 nm: 0.5 m typical; 1300 nm: 0.7 m typical Singlemode: 1310 nm: 0.6 m typical; 1550 nm: 0.6 m typical |
| Attenuation dead zone 2 | Multimode: 850 nm: 2.5 m typical; 1300 nm: 4.5 m typical Singlemode: 1310 nm: 3.6 m typical; 1550 nm: 3.7 m typical |
| Dynamic range 3, 5, 6 | Multimode: 850 nm: 28 dB typical; 1300 nm: 30 dB typical Singlemode: 1310 nm: 32 dB typical; 1550 nm: 30 dB typical |
| Max distance range setting | Multimode: 40 km Singlemode: 130 km |
| Distance measurement range 4, 5, 7, 8, 9, 10 | Multimode: 850 nm: 9 km; 1300 nm: 35 km Singlemode: 1310 nm: 80 km; 1550 nm: 130 km |
| Reflectance range 4, 5 | Multimode: 850 nm: -14 dB to -57 dB (typical); 1300 nm: -14 dB to -62 dB (typical) Singlemode: 1310 nm: -14 dB to -65 dB (typical); 1550 nm: -14 dB to -65 dB (typical) |
| Sample resolution | Multimode: 3 cm to 400 cm Singlemode: 3 cm to 400 cm |
| Pulse widths (nominal) | Multimode: 850 nm: 3, 5, 20, 40, 200 ns; 1300 nm: 3, 5, 20, 40, 200, 1000 ns Singlemode: 1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns |
| Test time (per wavelength) | Multimode: Auto setting: 5 sec (typical) Quick test setting: 2 sec (typical) Best resolution setting: 2 to 180 sec FaultMap setting: 2 sec (typical), 180 sec (max) DataCenter OTDR setting: 1 sec (typical at 850 nm), 7 sec (max) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 sec Singlemode: Auto setting: 10 sec (typical) Quick test setting: 5 sec (typical) Best resolution setting: 5 to 180 sec FaultMap setting: 10 sec (typical), 180 sec (max) DataCenter OTDR setting: 20 sec (typical), 40 sec (max) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 sec |
| Key OptiFiber Pro HDR Specifications | |
| Specifications | Multimode Module / Singlemode Module |
| Wavelengths | Multimode: 1310 nm +/- 25 nm; 1550 nm +/- 20 nm Singlemode: 1310 nm +/- 25 nm; 1490 nm +/- 20 nm; 1550 nm +/- 20 nm |
| Compatible fiber types | Multimode: Singlemode Singlemode: Singlemode |
| OTDR Port Connector | Multimode: Cleanable APC ferrule with removable SC adapter Singlemode: Cleanable APC ferrule with removable SC adapter |
| Event dead zone 1 | Multimode: 0.7 m (typical) Singlemode: 0.7 m (typical) |
| Attenuation dead zone 2 | Multimode: 4 m (typical) Singlemode: 4 m (typical) |
| PON dead zone 2 | Multimode: 30 m (typical) Singlemode: 30 m (typical) |
| Dynamic range | Multimode: 1310 nm: 42 dB typical; 1550 nm: 41 dB typical Singlemode: 1310 nm: 32 dB typical; 1490 nm: 41 dB (typical); 1550 nm: 30 dB typical |
| Max distance range setting | Multimode: 260 km Singlemode: 260 km |
| Reflectance range | Multimode: -14 dB to -70 dB (typical) Singlemode: -14 dB to -70 dB (typical) |
| Sampling resolution | Multimode: 3 cm to 2 m Singlemode: 3 cm to 2 m |
| Sampling points | Multimode: Up to 129000 Singlemode: Up to 129000 |
| Pulse widths (nominal) | Multimode: 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns Singlemode: 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns |
| Reflectance uncertainty | Multimode: ±2 dB Singlemode: ±2 dB |
| Test time (per wavelength) | Auto setting: 5 seconds/wavelength (typical) Auto PON setting: 10 seconds/wavelength (typical) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Manual PON setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Quick test setting: 3 seconds/wavelength (typical) Best resolution setting: 5 to 180 seconds/wavelength |
| Laser Classification | Class 1 CDRH Complies to EN 60825-2, 3rd Edition |
| Calibration Period | 1 year |
| Additional Key Specifications | |
| Fiber Inspector Probe Specification | |
| Magnification | ~ 200X with OptiFiber Pro Display |
| Light source | Blue LED |
| Power source | Versiv mainframe |
| Field of View (FOV) | Horizontal: 425 µm Vertical: 320 µm |
| Minimum detectable particle size | 0.5 µm |
| Dimensions | Approximately 6.75 in x 1.5 in (1175 mm x 35 mm) without adapter tip |
| Weight | 200 g |
| Temperature range | Operating: 32°F to 122°F (0 °C to +50 °C) Storage: -4°F to +158°F (-20°C to +70°C) |
| Certifications | CE (when used with the mainframe) |
| VFL Specification | |
| On/Off control | Mechanical switch and a button on the touch screen |
| Output power | 316 µW (-5 dBm) = peak power = 1.0 mW (0 dBm) |
| Operating wavelength | 650 nm nominal |
| Spectral width (RMS) | ±3 nm |
| Output modes | Continuous wave / Pulsed mode (2 Hz to 3 Hz blink frequency) |
| Connector adapter | 2.5 mm universal |
| Laser safety (classification) | Class II CDRH Complies to EN 60825-2 |
| General Specification | |
| Weight | Mainframe with module and battery: 3 lbs, 5 oz (1.28 kg) |
| Dimensions | Mainframe with module and battery: 2.625 in x 5.25 in x 11.0 in (6.67 cm x 13.33 cm x 27.94 cm) |
| Battery | Lithium ion battery pack, 7.2 volts |
| Battery life | Eight hour Auto OTDR operation, dual wavelength, no video probe connected, 150 m of fiber |
| Integrated Wi-Fi | Meets IEEE 802.11 a/b/g/n; dual band (2.4 GHz and 5 GHz) |
| Charge Time | |
| Tester Off | Four hours to charge from 10% to 90% capacity |
| Tester On | Six hours to charge from 10% to 90% capacity with the tester on |
| Environmental Specification | |
| Operating temperature | -18ºC to 45ºC |
| Storage Temperature | -30ºC to +60ºC |
| Operating altitude | 4,000 m (13123 ft) 3200 m (10,500 ft) with ac adapter |
| Storage altitude | 12,000 m |
| EMC | EN 61326-1 |
