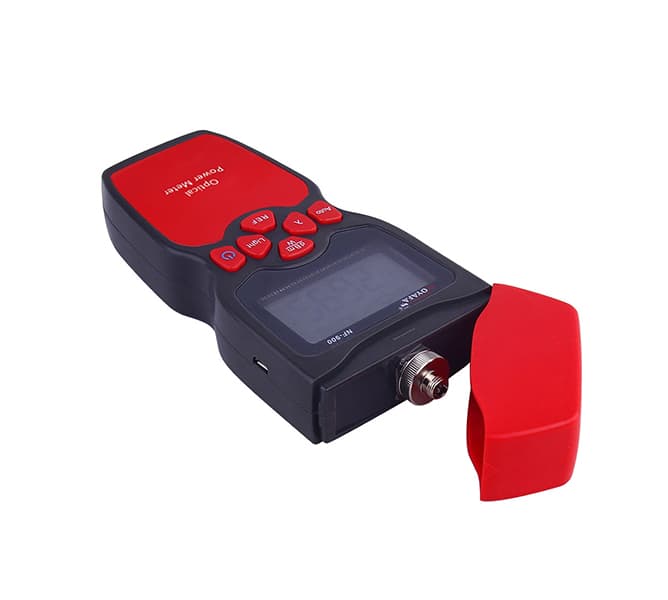

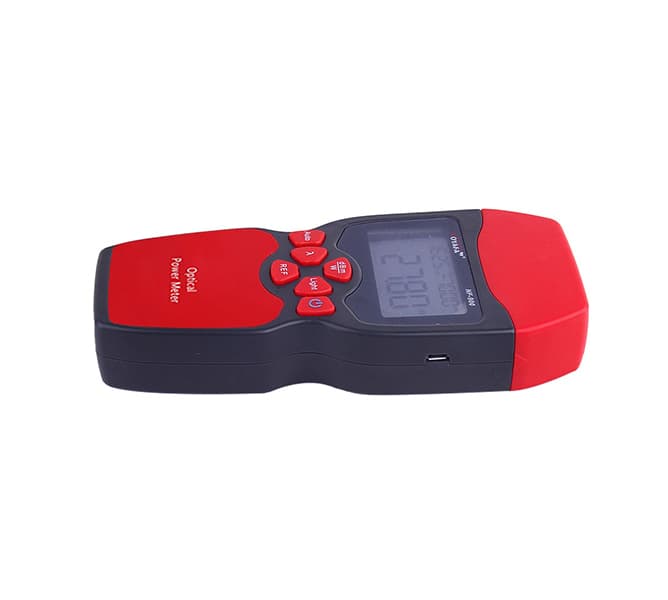

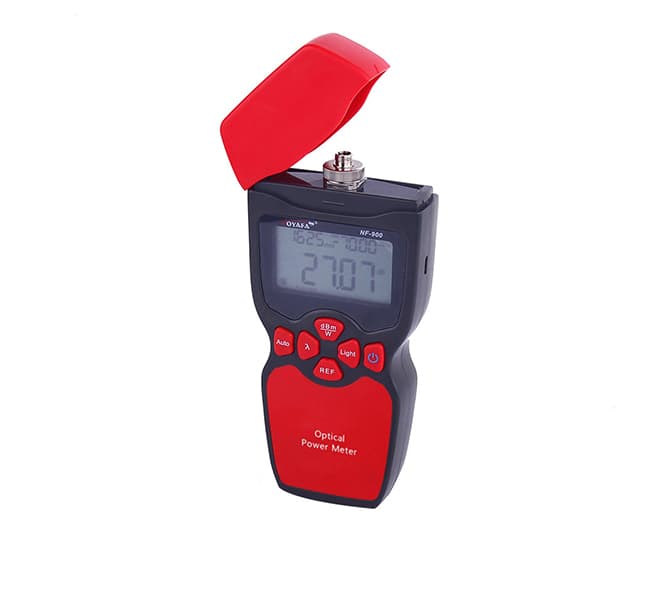

A handheld test instrument for optical power measurement. It reads the power of an optical sender in dBm and W and determines the insertion loss of optical devices.
Wide detecting rangeReads optical power from -50 ~ +26 dBm at 0.01 dBm resolution.
Six standard wavelengthsMeasures at 850, 1300, 1310, 1490, 1550 and 1625 nm.
InGaAs probeScans the 800-1700 nm band with a Ø1.0 mm detection limit.
Interface optionsShips with an FC interface and swaps to ST, SC and LC adapters.
Backlit displaySupports night operation and runs 240 hours with the backlight off.
Field bodyCarries a 160x75x32 mm body and runs on 1.5 V x 3 cells.
