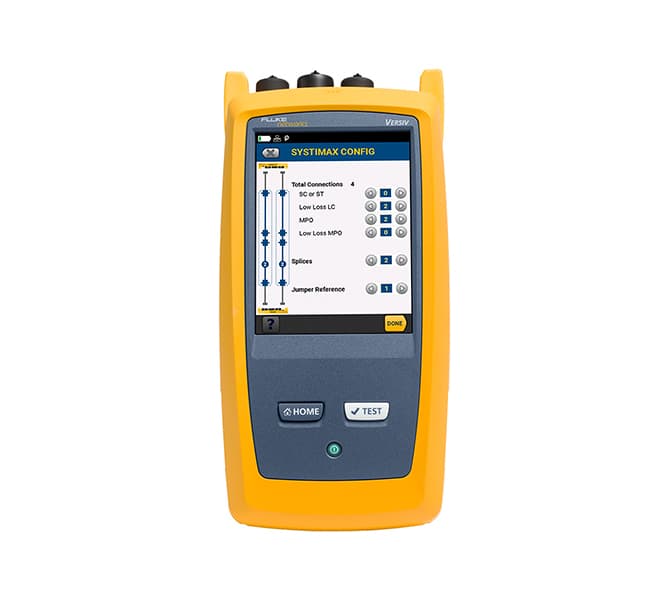

Stock Code: OptiFiber®
| Key OptiFiber Pro OTDR specifications | |||
|---|---|---|---|
| Multimode module | Singlemode module | Quad module | |
| Wavelength | 850 nm +/- 10 nm 1300 nm +35/-15 nm |
1310 nm +/- 25 nm 1550 nm +/- 30 nm |
850 nm +/- 10 nm 1300 nm +35/-15 nm 1310 nm +/- 25 nm 1550 nm +/- 30 nm |
| Compatible fiber types | 50/125 µm 62.5/125 µm |
Singlemode | 50/125 µm 62.5/125 µm Singlemode |
| Event dead zone 1 | 850 nm: 0.5 m typical 1300 nm: 0.7 m typical |
1310 nm: 0.6 m typical 1550 nm: 0.6 m typical |
850 nm: 0.5 m typical 1300 nm: 0.7 m typical 1310 nm: 0.6 m typical 1550 nm: 0.6 m typical |
| Attenuation dead zone 2 | 850 nm: 2.5 m typical 1300 nm: 4.5 m typical |
1310 nm: 3.6 m typical 1550 nm: 3.7 m typical |
850 nm: 2.5 m typical 1300 nm: 4.5 m typical 1310 nm: 3.6 m typical 1550 nm: 3.7 m typical |
| Dynamic range 3, 5, 6 | 850 nm: 28 dB typical 1300 nm: 30 dB typical |
1310 nm: 32 dB typical 1550 nm: 30 dB typical |
850 nm: 28 dB typical 1300 nm: 30 dB typical 1310 nm: 32 dB typical 1550 nm: 30 dB typical |
| Max distance range setting | 40 km | 130 km | MM: 40 km SM: 130 km |
| Distance measurement range 4, 5, 7, 8, 9, 10 | 850 nm: 9 km 1300 nm: 35 km |
1310 nm: 80 km 1550 nm: 130 km |
850 nm: 9 km 1300 nm: 35 km 1310 nm: 80 km 1550 nm: 130 km |
| Reflectance range 4, 5 | 850 nm: -14 dB to -57 dB (typical) 1300 nm: -14 dB to -62 dB (typical) |
1310 nm: -14 dB to -65 dB (typical) 1550 nm: -14 dB to -65 dB (typical) |
850 nm: -14 dB to -57 dB (typical) 1300 nm: -14 dB to -62 dB (typical) 1310 nm: -14 dB to -65 dB (typical) 1550 nm: -14 dB to -65 dB (typical) |
| Sample resolution | 3 cm to 400 cm | 3 cm to 400 cm | 3 cm to 400 cm |
| Pulse widths (nominal) | 850 nm: 3, 5, 20, 40, 200 ns 1300 nm: 3, 5, 20, 40, 200, 1000 ns |
1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns | 850 nm: 3, 5, 20, 40, 200 ns 1300 nm: 3, 5, 20, 40, 200, 1000 ns 1310/1550 nm: 3, 10, 30, 100, 300, 1000, 3000, 10000, 20000 ns |
| Test time (per wavelength) | Auto setting: 5 sec (typical) Quick test setting: 2 sec (typical) Best resolution setting: 2 to 180 sec FaultMap setting: 2 sec (typical), 180 sec (max) DataCenter OTDR setting: 1 sec (typical at 850 nm), 7 sec (max) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 sec |
Auto setting: 10 sec (typical) Quick test setting: 5 sec (typical) Best resolution setting: 5 to 180 sec FaultMap setting: 10 sec (typical), 180 sec (max) DataCenter OTDR setting: 20 sec (typical), 40 sec (max) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 sec |
Auto setting: MM – 5 sec (typical) SM – 10 sec (typical) Quick test setting: MM – 2 sec (typical) SM – 5 sec (typical) Best resolution setting: MM – 2 to 180 sec SM – 5 to 180 sec FaultMap setting: MM - 2 sec (typical), MM - 180 sec (max) SM - 10 sec (typical), SM - 180 sec (max) DataCenter OTDR setting: MM – 1 sec (typical at 850 nm), MM – 7 sec (max) SM – 20 sec (typical), SM – 40 sec (max) Manual setting: MM - 3, 5, 10, 20, 40, 60, 90, 120, 180 sec SM - 3, 5, 10, 20, 40, 60, 90, 120, 180 sec |
| Key OptiFiber Pro HDR Specifications | |||
| Wavelengths | 1310 nm +/- 25 nm 1550 nm +/- 20 nm |
1310 nm +/- 25 nm 1490 nm +/- 20 nm 1550 nm +/- 20 nm |
1310 nm +/- 25 nm 1550 nm +/- 20 nm 1625 nm +/- 20 nm |
| Compatible fiber types | Singlemode | Singlemode | Singlemode |
| OTDR Port Connector | Cleanable APC ferrule with removable SC adapter | Cleanable APC ferrule with removable SC adapter | Cleanable APC ferrule with removable SC adapter |
| Event dead zone 1 | 0.7 m (typical) | 0.7 m (typical) | 0.7 m (typical) |
| Attenuation dead zone 2 | 4 m (typical) | 4 m (typical) | 4 m (typical) |
| PON dead zone 3 | 30 m (typical) | 30 m (typical) | 30 m (typical) |
| Max distance range setting | 260 km | 260 km | 260 km |
| Dynamic range 4, 5 | 1310 nm: 42 dB (typical) 1550 nm: 41 dB (typical) |
1310 nm: 42 dB (typical) 1490 nm: 41 dB (typical) 1550 nm: 41 dB (typical) |
1310 nm: 42 dB (typical) 1550 nm: 41 dB (typical) 1625 nm: 40 dB (typical) |
| Reflectance range 4 | -14 to -70 dB (typical) | -14 to -70 dB (typical) | -14 to -70 dB (typical) |
| Sampling resolution | 3 cm to 2 m | 3 cm to 2 m | 3 cm to 2 m |
| Sampling points | Up to 129000 | Up to 129000 | Up to 129000 |
| Pulse widths (nominal) | 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns | 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns | 5, 10, 30, 50, 100, 300, 500, 1000, 3000, 5000, 10000, 20000 ns |
| Distance uncertainty | +/-(1 + 0.0005*distance + 0.5*resolution) | +/-(1 + 0.0005*distance + 0.5*resolution) | +/-(1 + 0.0005*distance + 0.5*resolution) |
| Linearity | ± 0.03 dB/dB | ± 0.03 dB/dB | ± 0.03 dB/dB |
| Reflectance uncertainty | ±2 dB | ±2 dB | ±2 dB |
| Test Time (per wavelength) | Auto setting: 5 seconds/wavelength (typical) Auto PON setting: 10 seconds/wavelength (typical) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Manual PON setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Quick test setting: 3 seconds/wavelength (typical) Best resolution setting: 5 to 180 seconds/wavelength |
Auto setting: 5 seconds/wavelength (typical) Auto PON setting: 10 seconds/wavelength (typical) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Manual PON setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Quick test setting: 3 seconds/wavelength (typical) Best resolution setting: 5 to 180 seconds/wavelength |
Auto setting: 5 seconds/wavelength (typical) Auto PON setting: 10 seconds/wavelength (typical) Manual setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Manual PON setting: 3, 5, 10, 20, 40, 60, 90, 120, 180 seconds/wavelength Quick test setting: 3 seconds/wavelength (typical) Best resolution setting: 5 to 180 seconds/wavelength |
| Laser Classification | Class 1 CDRH, Complies to EN 60825-2 3rd Edition | Class 1 CDRH, Complies to EN 60825-2 3rd Edition | Class 1 CDRH, Complies to EN 60825-2 3rd Edition |
| Calibration Period | 1 year | 1 year | 1 year |
