Brings serial devices onto the Ethernet network.
A compact device server that connects field equipment with RS-232, RS-422 and RS-485 interfaces to the TCP/IP network. It pairs a single serial port with 2 10/100Base-T(X) Ethernet ports and runs in Virtual COM, Serial Tunnel, TCP Server, TCP Client and UDP modes.

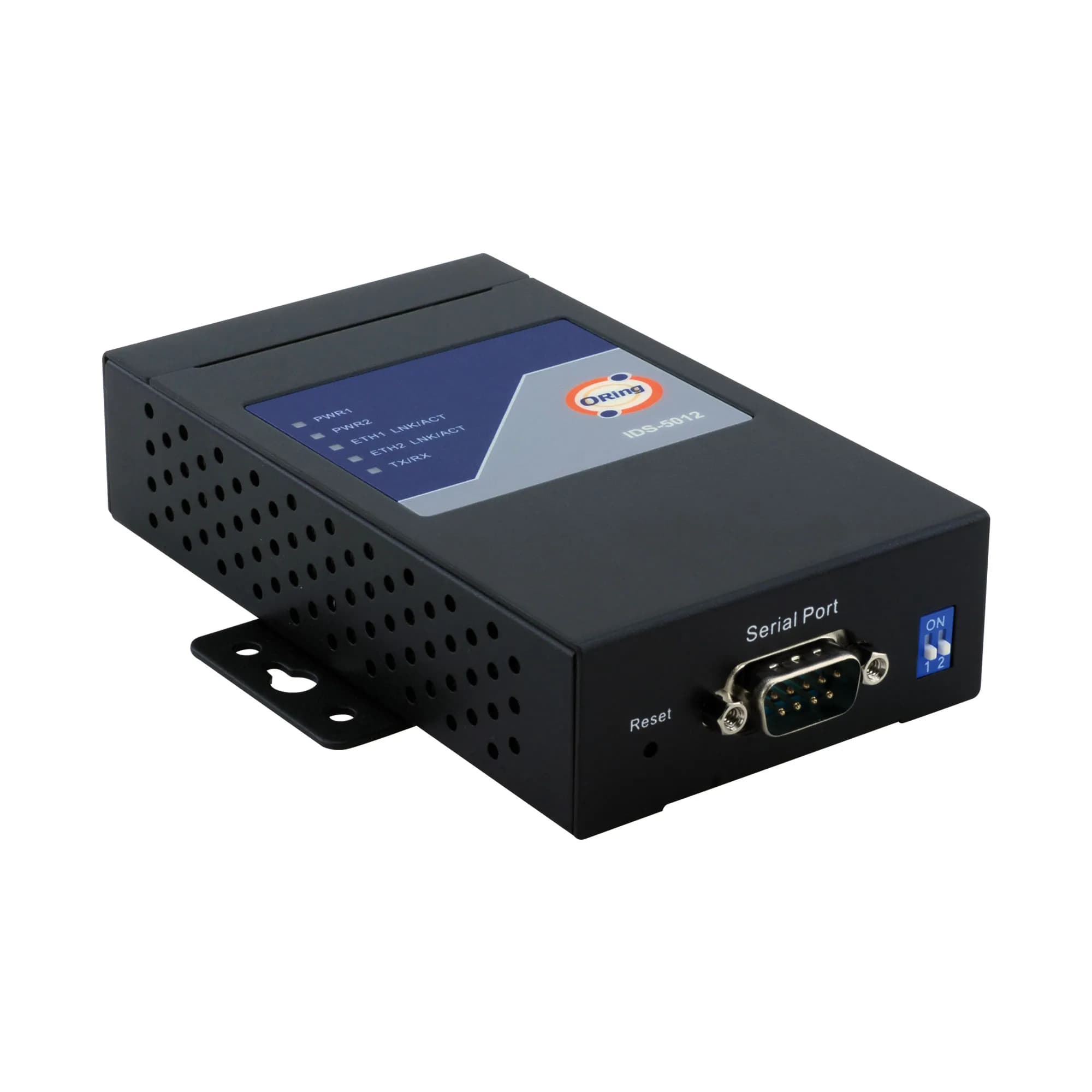

1x RS-232/422/485Serial port
2x 10/100Base-T(X)Ethernet ports
10 msRedundant link recovery time
IP-30Protection Grade
12~48 VDCInput power
-10 to 60 °COperating Temperature
Key features
Redundant dual EthernetWhen the main link drops, traffic moves to the second port within 10 ms.
Switch modeA Daisy Chain connection reduces port usage on the switch.
Multiple host devicesIt sustains 5 simultaneous host connections in Virtual COM, TCP Server, TCP Client and UDP modes.
NAT pass-throughIt opens the device behind a NAT router to remote management interfaces.
Secure managementHTTPS and SSH sessions encrypt configuration traffic, and SSL protects data transfer.

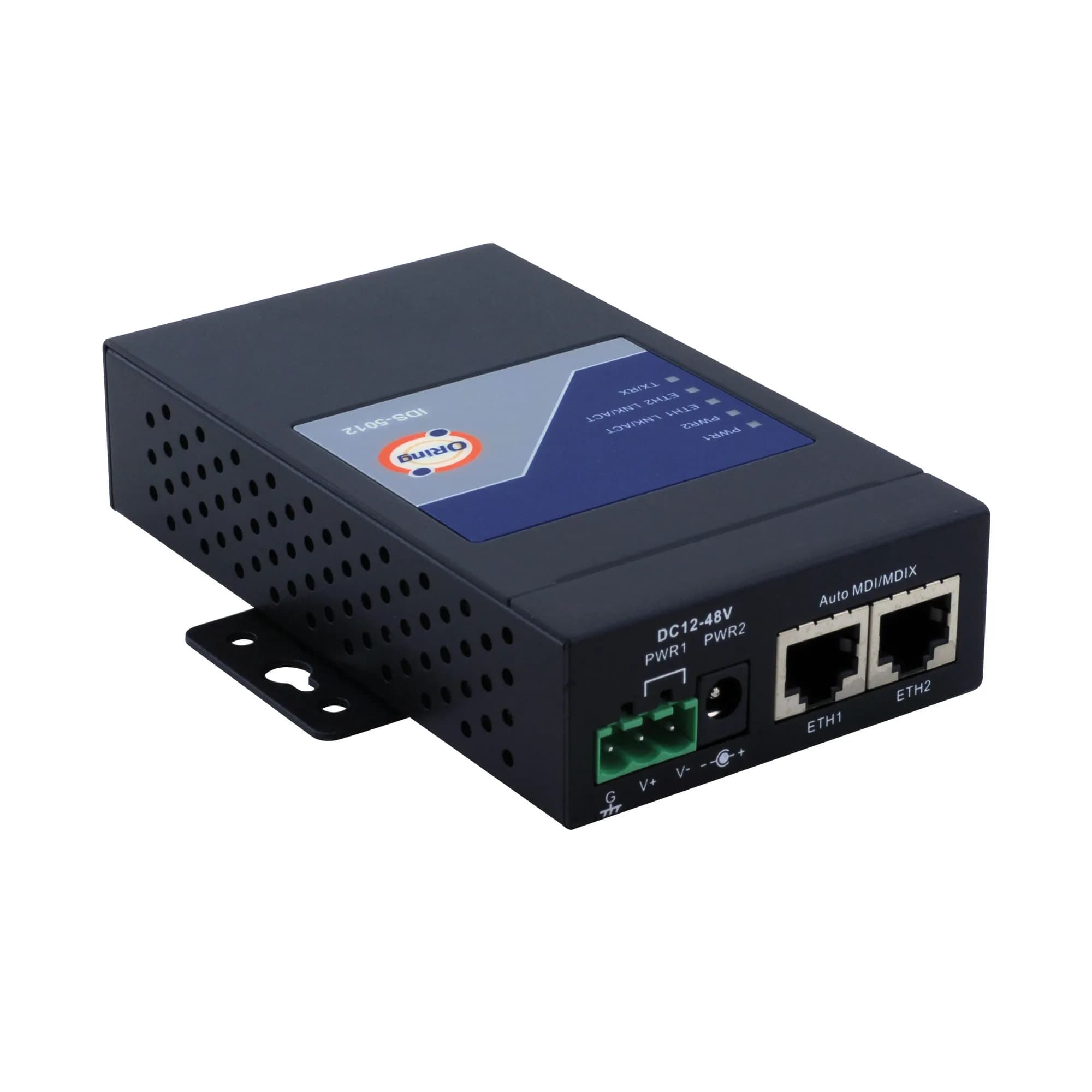

Redundant power inputThe terminal block and the power jack accept two separate 12~48 VDC feeds.
