Watches motion across a 90° field from the wall.

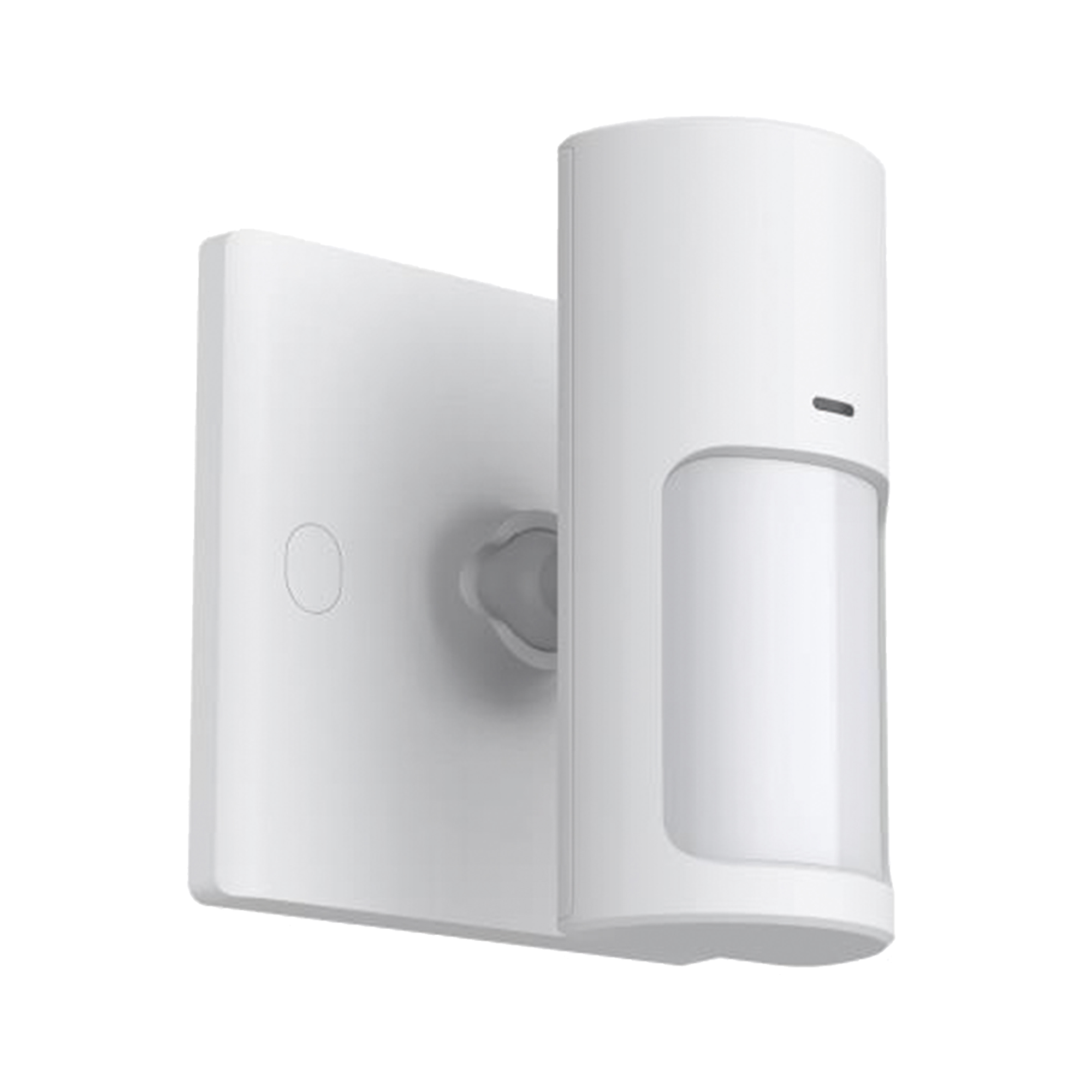

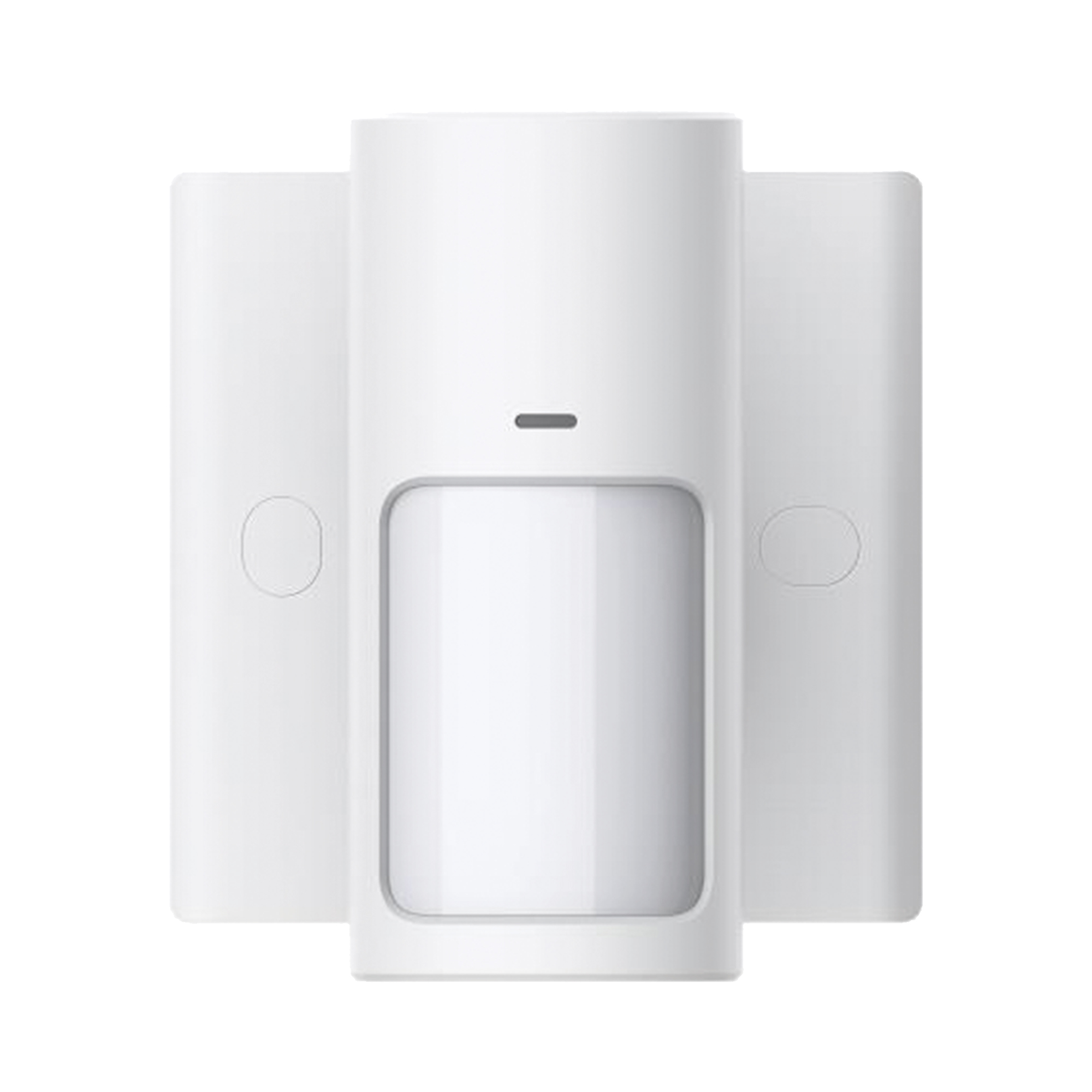

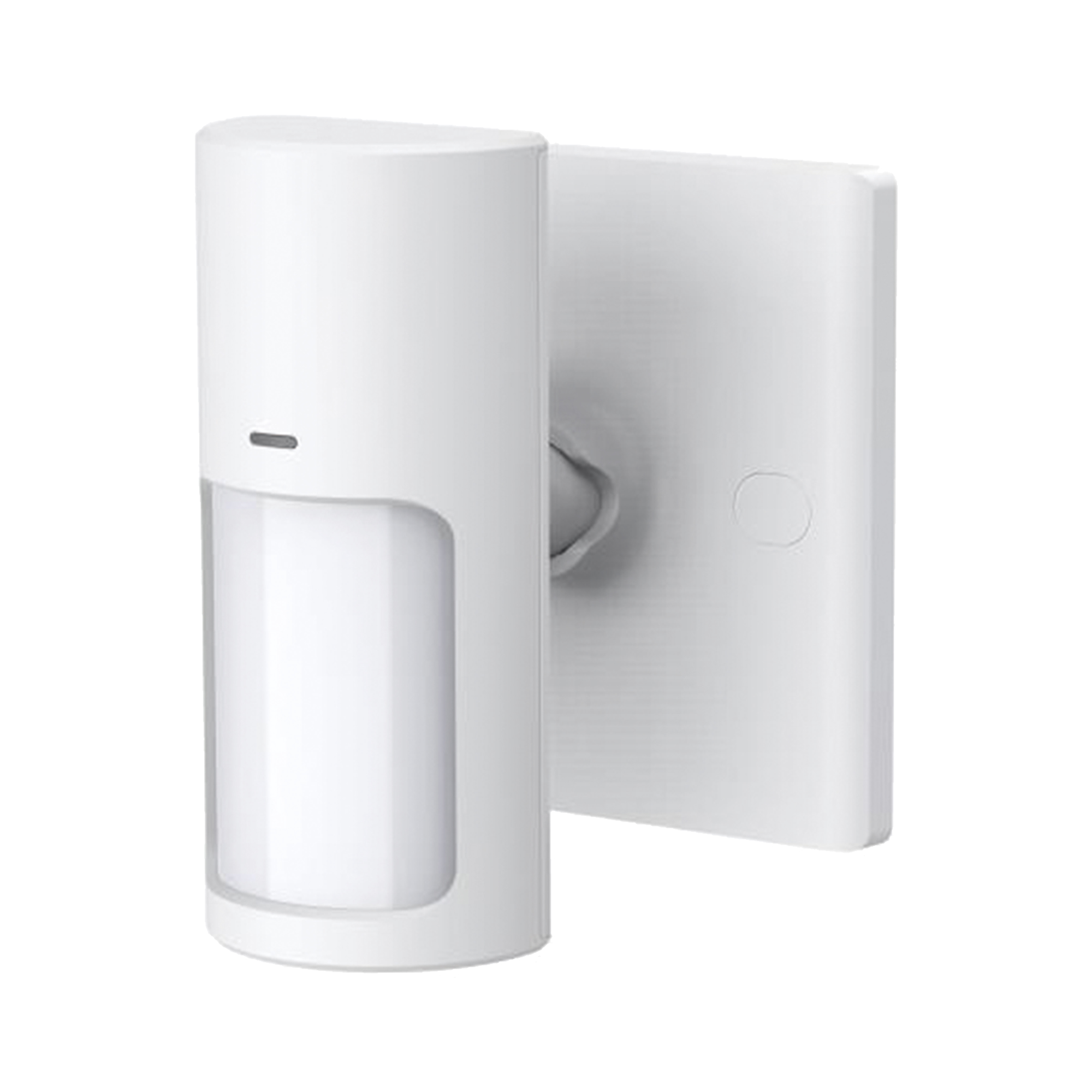

A passive infrared motion detector that mounts on a wall at 2.2 m. It detects movement up to 12 meters, and automatic temperature compensation keeps detection steady.

12 mDetection Range

90°Detection Angle

9–24 VDCSupply Voltage

–10 °C ~ +55 °COperating Temperature

Wall mount (2.2 m)Mounting Type

Key features

Passive infrared detectionPIR sensing catches movement up to 12 meters across a 90° field.

Motion speedIt detects movement between 0.3 m/s and 3 m/s.

Temperature compensationAutomatic temperature compensation keeps detection steady as the ambient temperature changes.

Interference immunityThe circuit design prevents RF interference from affecting the PCB.

Relay and tamperThe relay runs NC by default with an optional NO setting (28 VDC / 80 mA), and the tamper output is an NC dry contact.

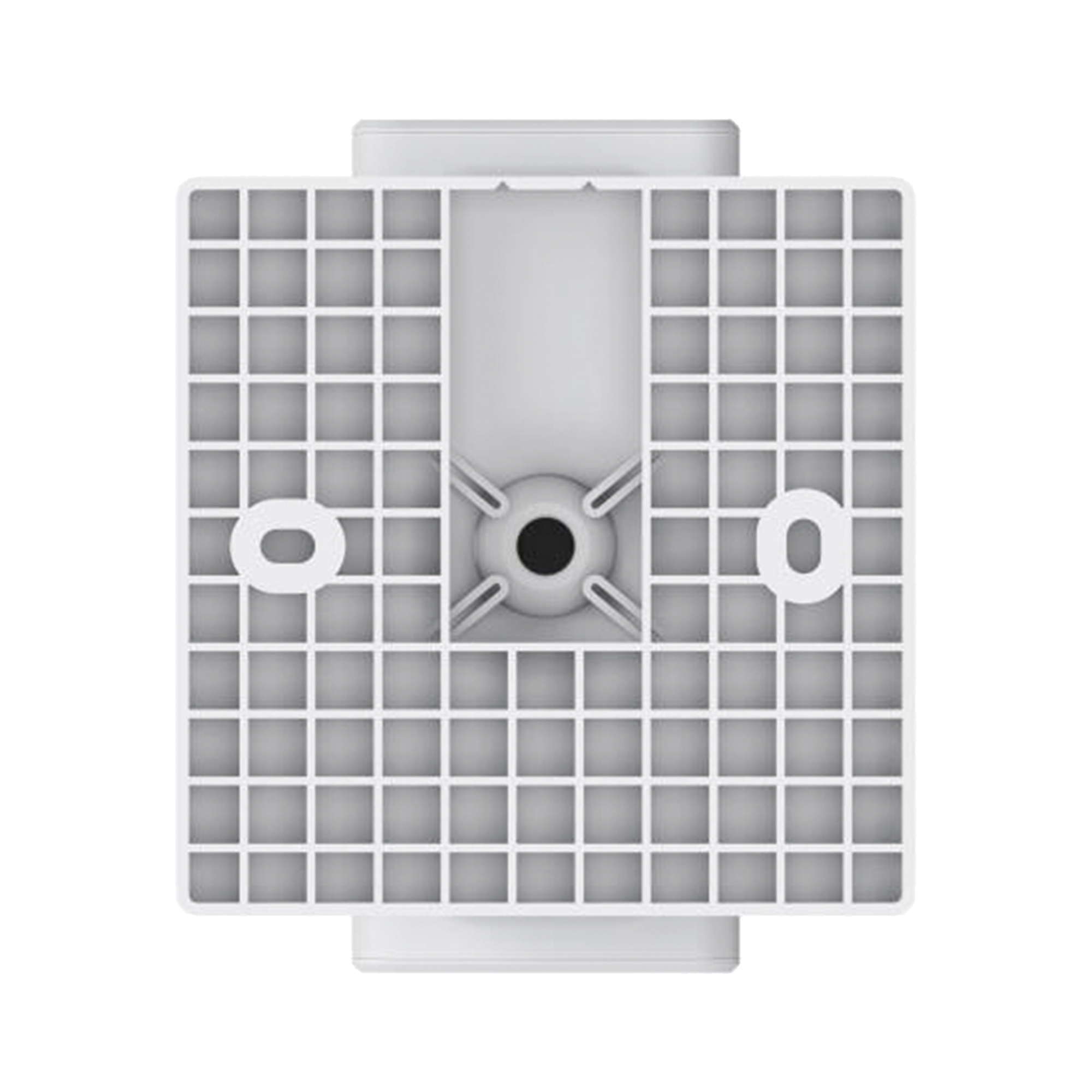

Body and mountingThe fireproof ABS body measures 45 × 35 × 99 mm and sits on a wall at 2.2 m.

Technical Specifications

Tamper

NC output, dry contact (contact capacity: 28 VDC, 80 mA)

Power Supply

9–24 VDC

Operating Temperature

–10 °C to +55 °C

Operating Humidity

≤95% (RH)

Product Dimensions

45 × 35 × 99 mm (1.77\" × 1.38\" × 3.9\")

Packaging Dimensions

102 × 46 × 100 mm (L × W × H)

Net Weight

50 g (0.11 lb)

Installation

Wall mount (2.2 m / 7.22 ft)

Casing Material

Fireproof ABS

Operating Current

≤25 mA

Relay

NC by default, optional NO (28 VDC / 80 mA)

Detection Speed

0.3 – 3 m/s (0.98 – 9.84 ft/s)

Detection Range

90° / 12 m
