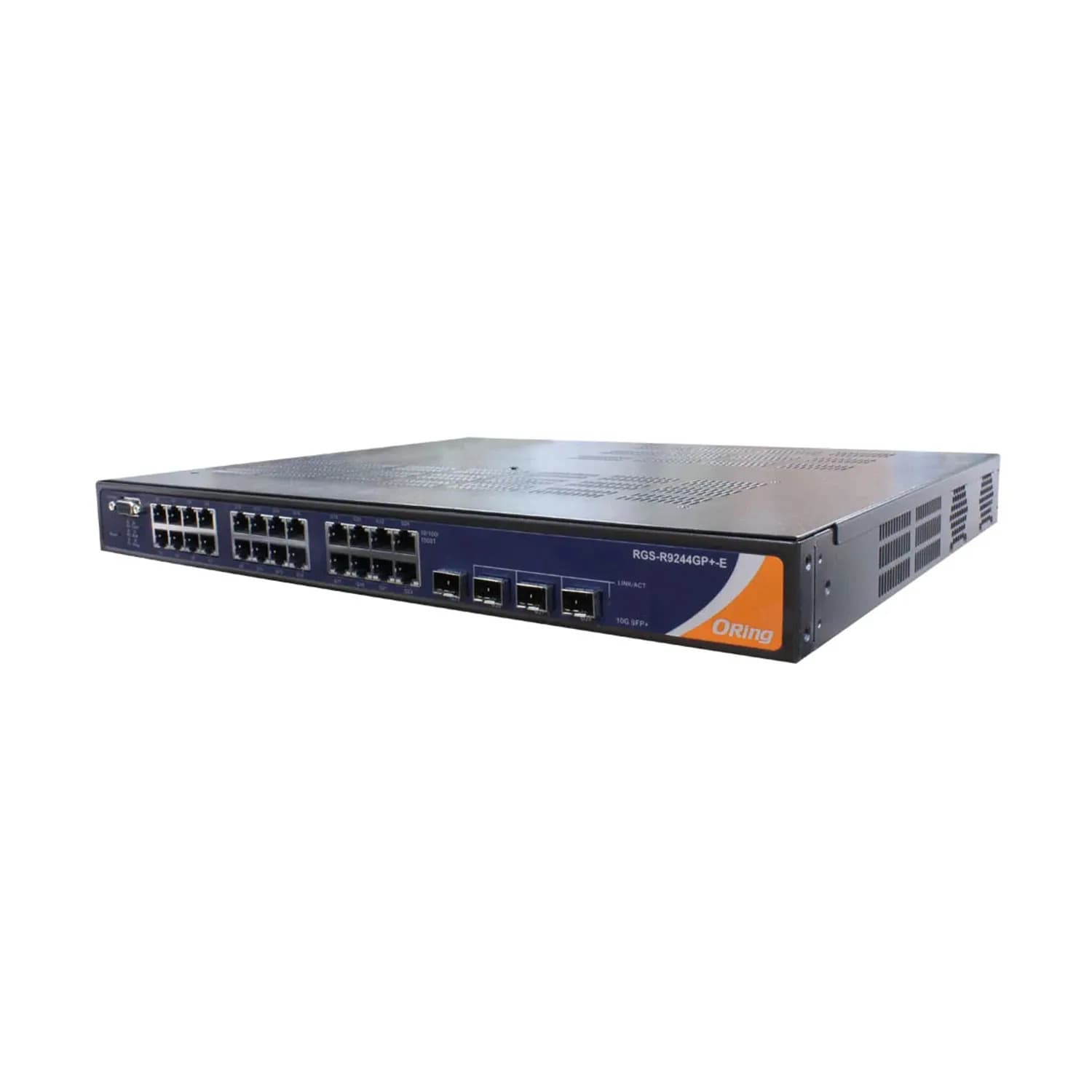

Stock Code: RGPS-R9244GP+-P
| Technical Specifications | |
|---|---|
| Physical Ports | |
| 10/100/1000Base-T(X) with P.S.E. Ports in RJ45 | 24 |
| 1G/10GBase-X with SFP+ port | 4 |
| LED Indicators | |
| Power Indicator (Power) | Green: Power indicator |
| Ring Master Indicator (R.M.) | Green: Indicates that the system is operating in O-Ring Master mode |
| O-Ring Indicator (Ring) | Green: Indicates that the system operating in O-Ring mode Green Blinking: Indicates that the Ring is broken. |
| Fault Indicator (Fault) | Amber: Indicate unexpected event occurred |
| 10/100/1000Base-T(X) RJ45 port indicator | Dual color LED for Link/Act/Speed indicator Green (1G Link/Act) / Amber (10/100M Link/Act) |
| PoE Indicator | Green: PoE enabled LED x 24 |
| Power | |
| Power consumption (Typ.) | 75 Watts (PoE output not included) |
| Power Input | 100~240VAC with AC socket |
| Total PoE Output Power | 720 Watts (-20°C~50°C) 320 Watts (50°C~60°C) |
| Overload current protection | Present |
| Physical Characteristic | |
| Dimensions (mm) | 431 (W) x 342 (D) x 44 (H) mm (16.97 x 13.46 x 1.73 inch) |
| Weight (g) | 6,270 g |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10Gigabit Ethernet IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1p for COS (Class of Service) IEEE 802.1Q for VLAN Tagging IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol) IEEE 802.1x for Authentication IEEE 802.1AB for LLDP (Link Layer Discovery Protocol) IEEE 802.1AS for Timing and Synchronization IEEE 802.1Qat for Stream Reservation IEEE 802.1Qav for Forwarding and Queuing Enhancements for Time-Sensitive Streams IEEE 802.3af/at PoE specification |
| MAC Table | 32K |
| Packet buffer Size | 32Mbits |
| Priority Queues | 8 |
| Processing | Store-and-Forward |
| Switch Properties | Switching latency: 7 us Switching bandwidth: 128Gbps Max. Number of Available VLANs: 4095 VLAN ID range: VID 1 to 4094 IGMP multicast groups: 128 for each VLAN Port rate limiting: User Define |
| Jumbo frame | Up to 10K Bytes |
| Security Features | Device Binding security feature Enable/disable ports, MAC based port security Port based network access control (802.1x) MAC-based authentication (802.1x) VLAN (802.1Q) to segregate and secure network traffic Radius centralized password management SNMPv3 encrypted authentication and access security Https / SSH enhance network security Web and CLI authentication and authorization IP source guard |
| Software Features | IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) Multiple Registration Protocol (MRP) MSTP (RSTP/STP compatible) Redundant Ring (O-Ring) with recovery time less than 30ms TOS/Diffserv supported Quality of Service (802.1p) for real-time traffic VLAN (802.1Q) with VLAN tagging IGMP v2/v3 Snooping IP-based bandwidth management Application-based QoS management DOS/DDOS auto prevention Port configuration, status, statistics, monitoring, security DHCP Server/Client DHCP Relay Modbus TCP DNS client proxy SMTP Client NTP server |
| Network Redundancy | O-Ring Open-Ring O-Chain MRP MSTP (RSTP/STP compatible) |
| Environmental | |
| Storage Temperature | -40 to 85°C |
| Operating Temperature | -20 to 60°C |
| Operating Humidity | 5% to 95% Non-condensing |
| Warranty | |
| Warranty | 5 years |
