Protects a single-phase line against residual current up to 40 A.

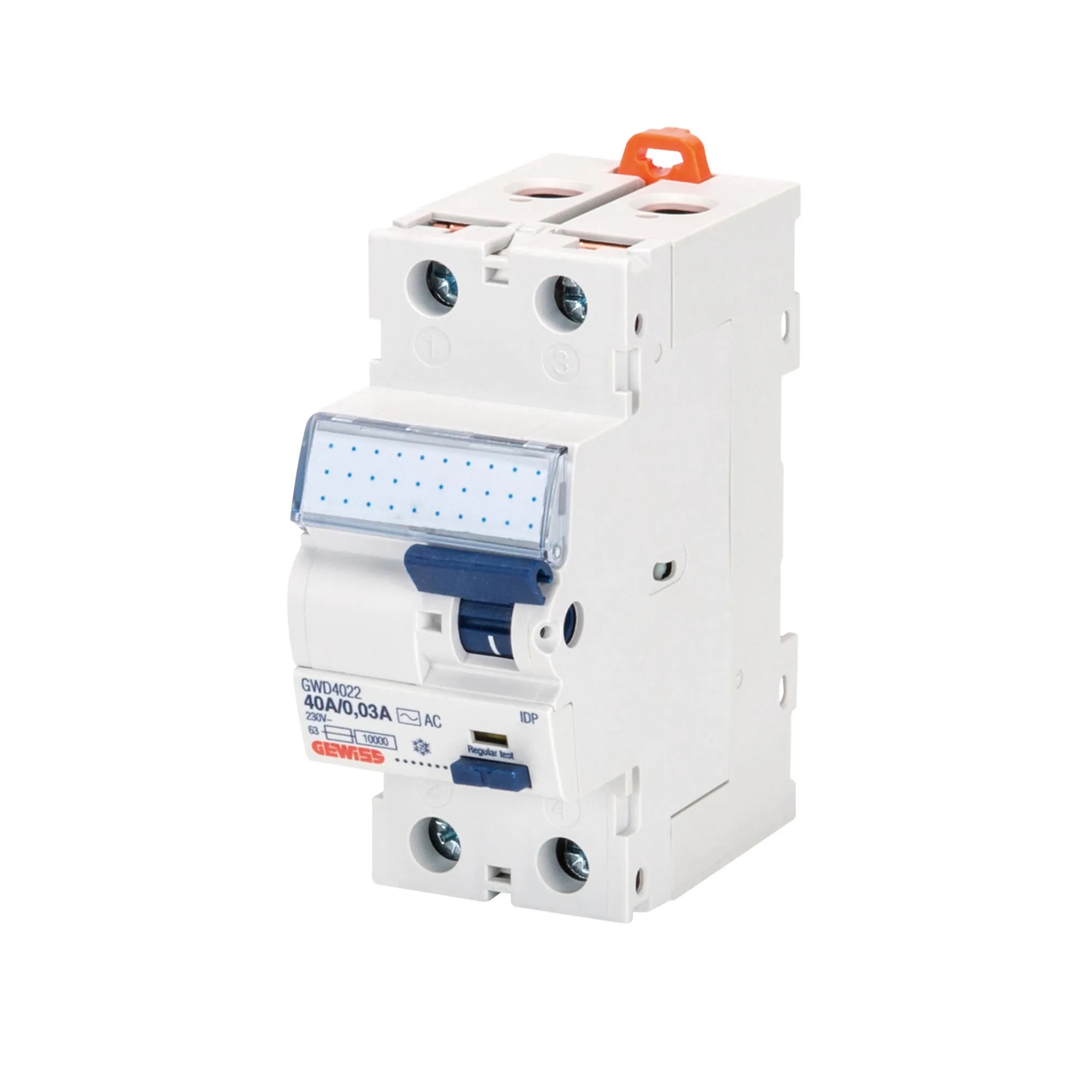

This two-pole residual current circuit breaker protects single-phase circuits up to 40 A and opens its contacts at a 30 mA leakage. It takes up 2 modules of width in the board and runs at a 50/60 Hz supply frequency.
Earth leakage protectionMonitors earth leakage and opens the circuit at the 30 mA threshold.
Load currentCarries up to 40 A across two poles.
Sensitivity typeWorks with A[IR] type residual current detection.
Space in the boardA 2 module wide modular housing fits the distribution board.
Supply compatibilityOperates at a 50/60 Hz supply frequency.
Insulation voltageWithstands up to a 500 V insulation voltage.
