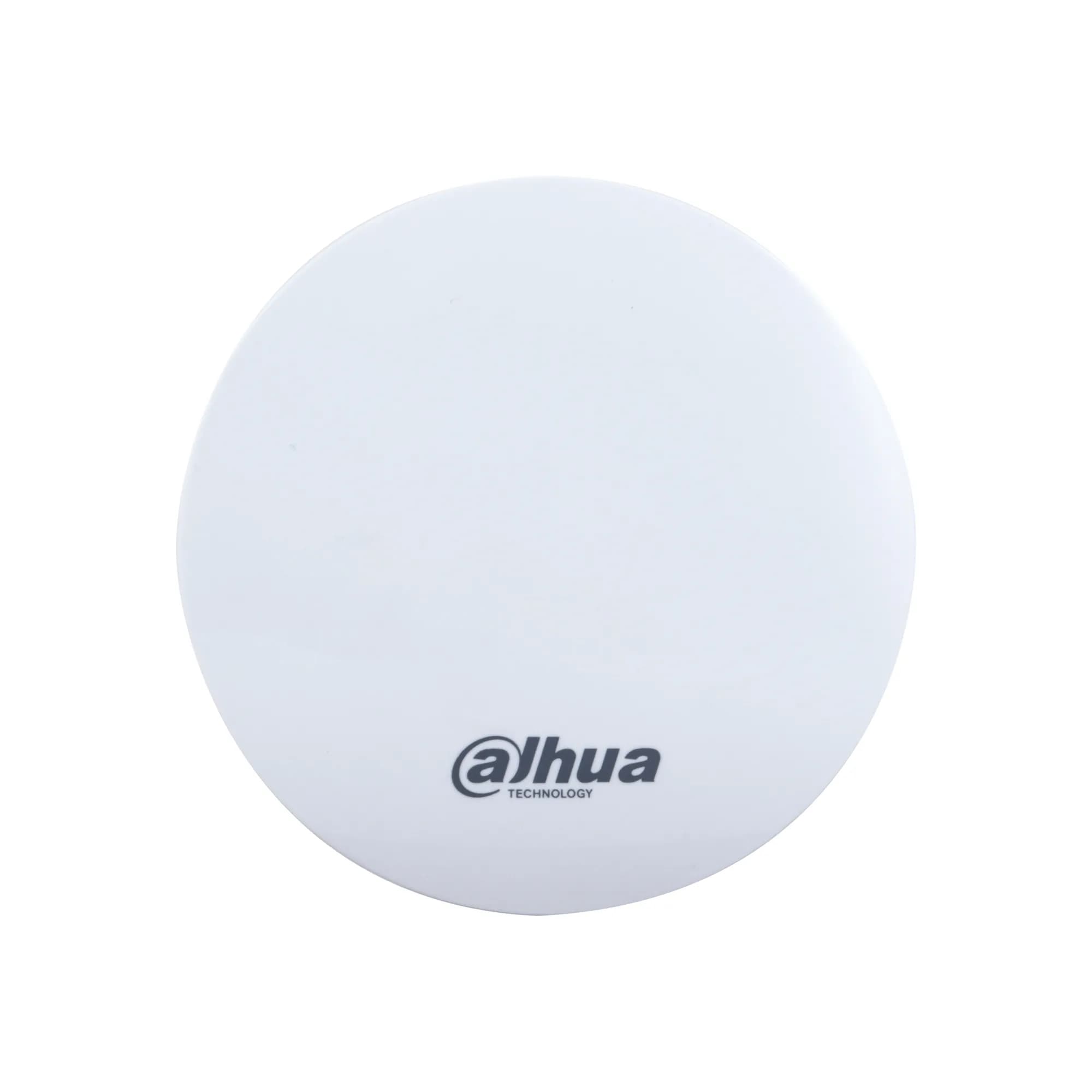

Stock Code: ARD1112C
| Technical Specifications | |
|---|---|
| Sensor | Dual-element low-noise pyroelectric infrared sensor |
| Detection Mode | Passive Infrared Detection (PIR) |
| Sensitivity | Adjustable |
| Detection Range | Φ7 m (22.97 ft) when installed 2.5 m (8.20 ft) above the floor Φ12 m (39.37 ft) when installed 3.6 m (11.81 ft) above the floor Φ13 m (42.65 ft) when installed 4.5 m (14.76 ft) above the floor |
| Detection Angle | 360° |
| Detection Speed | 0.3 m/s – 3 m/s |
| White Light Resistance | 6,500 lux |
| Temperature Compensation | Two-way digital temperature compensation |
| Pulse Count | 1P / 2P |
| Alarm Output | 1 × alarm output, NC/NO, 60 VDC, Max. 400 mA |
| Tamper Output | 1 × tamper output, NC, 28 VDC, Max. 100 mA |
| Indicator Light | Red LED indicator |
| Power Supply | 9 – 18 VDC |
| Power Consumption | 0.54 W (Max.) |
| Operating Temperature | –10 °C to +55 °C |
| Installation | Ceiling mount at a height of 2.5 m – 4.5 m |
| Dimensions | 33.0 mm × Φ115.0 mm |
| Casing Material | ABS and PE |
| Certifications | CE |
