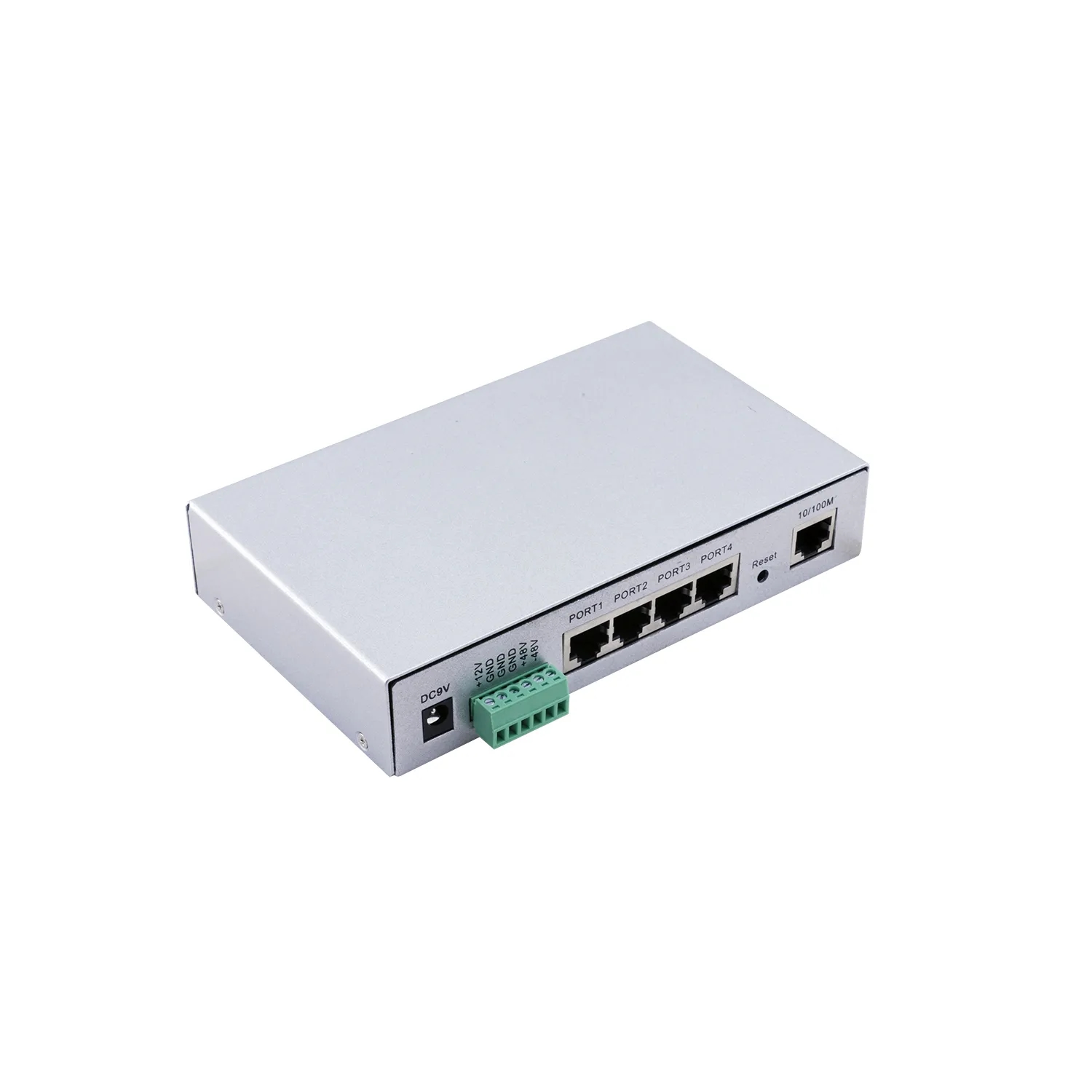

Stock Code: ATC-2004
| Serial Interface | |
|---|---|
| Baud Rate | 1,200 bps - 230,400 bps |
| Data Bits | 5, 6, 7, 8 |
| Parity | Odd, Even, None, Mark, Space |
| Stop Bits | 1 or 2 |
| Flow Control | XON / XOFF, RTS / CTS |
| Connector | Removable 6-pin Terminal Block |
| Network Interface | |
| Interface | Ethernet 10Base-T or 100Base-TX (Auto Sensing), Half/Full Duplex |
| Connector | RJ45 |
| Protocol | TCP/IP, UDP, Telnet, ARP, DHCP, PPPoE, ICMP, HTTP, DDNS, and SMTP |
| Indicators (LED) | |
| 10/100Base-TX link and activity indicator | |
| Transmit / Receive data between Serial and Ethernet indicator | |
| Power indicator | |
| Management | |
| Support TCP/UDP Server/Client mode | |
| Protected username and password for Web management | |
| Built-in HTTP server for easy setup and remote management via any browser | |
| Support backup and restore of system configuration data | |
| Support Windows 95/98/ME/NT/2000/XP/2003 virtual COM drivers | |
| Architecture | |
| CPU | 16 bit CPU, 100MHz |
| Memory | 256KB ROM, 768KB SDRAM |
| Physical Characteristics | |
| Dimensions | 160 x 87 x 32 mm (6.3 x 3.43 x 1.26 in) |
| Weight | 1.0 kg |
| Installation | DIN-Rail Mounting |
| Operating Temperature | -4° to 158° F (-20° to 70° C) |
| Power | |
| Input Voltage | 8-24 VDC @ 500mA |
| Supported Operating Systems | |
| Windows 95/98 ME, Windows 2000, Windows XP/7/8/10, Windows NT | |
