Name: TCP/IP - RS232/422/485 Evaluation Kit
Brand: Atc
SKU: ATC-2000EVB

Runs the embedded serial server module on a ready-made board

An evaluation board for the embedded module that connects RS-232/422/485 devices to a network over Ethernet. It tests the TTL-interface module on a single board that carries its own power unit and ready connectors.

RS-232/422/485Serial Interface

TTLModule Interface

DB-9Connector Type

RJ-45Network Interface

Key features

Embedded moduleThe TTL-interface serial port module sits on the board.

Serial connectorThe RS-232 side comes out on a DB-9 pin connector.

Network connectorA standard RJ-45 Ethernet interface takes the network cable directly.

PowerThe board runs on its built-in power unit and needs no separate adapter.

Software and hardwareA complete kit gets the solution running quickly.

TCP/IP - RS232/422/485 Evaluation Kit

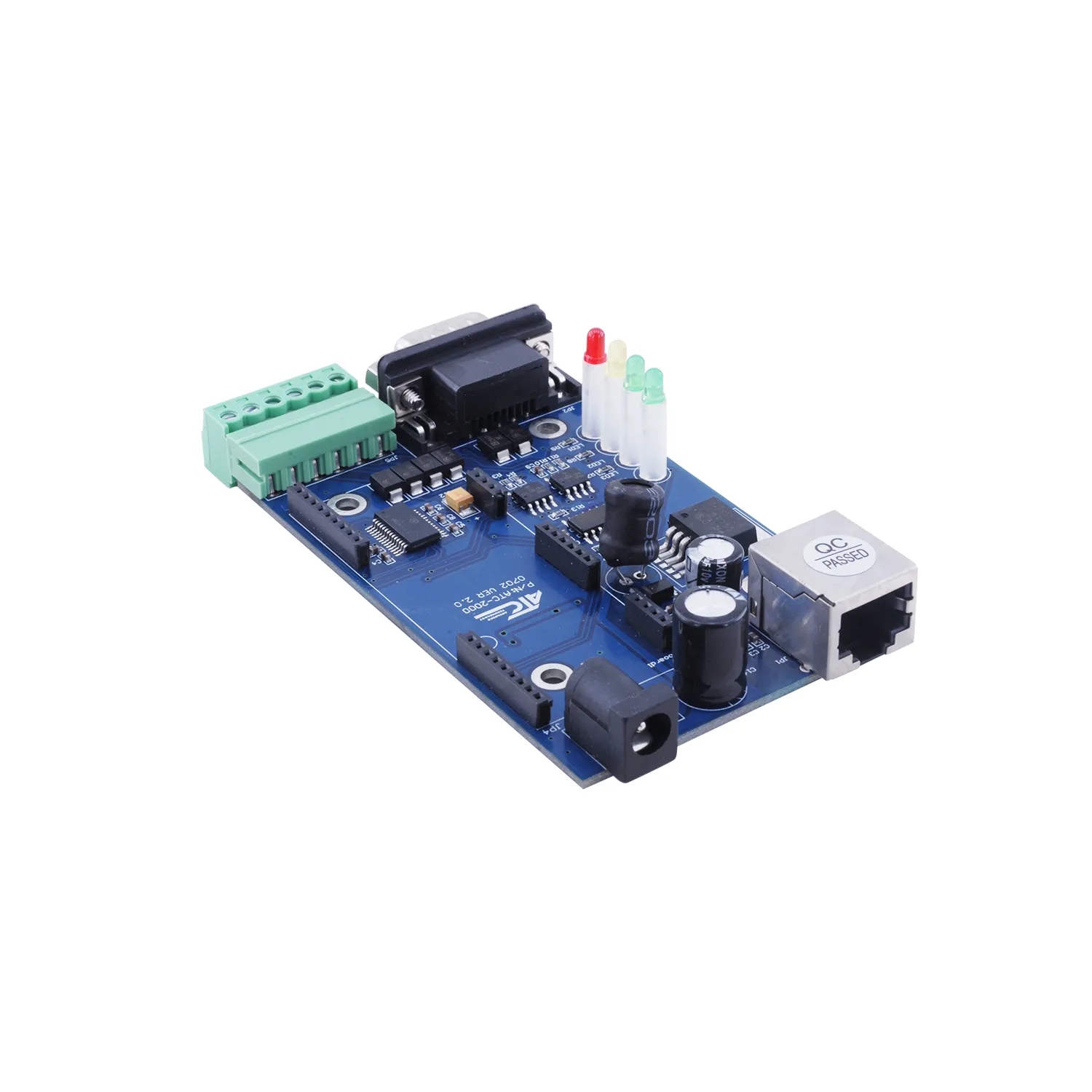

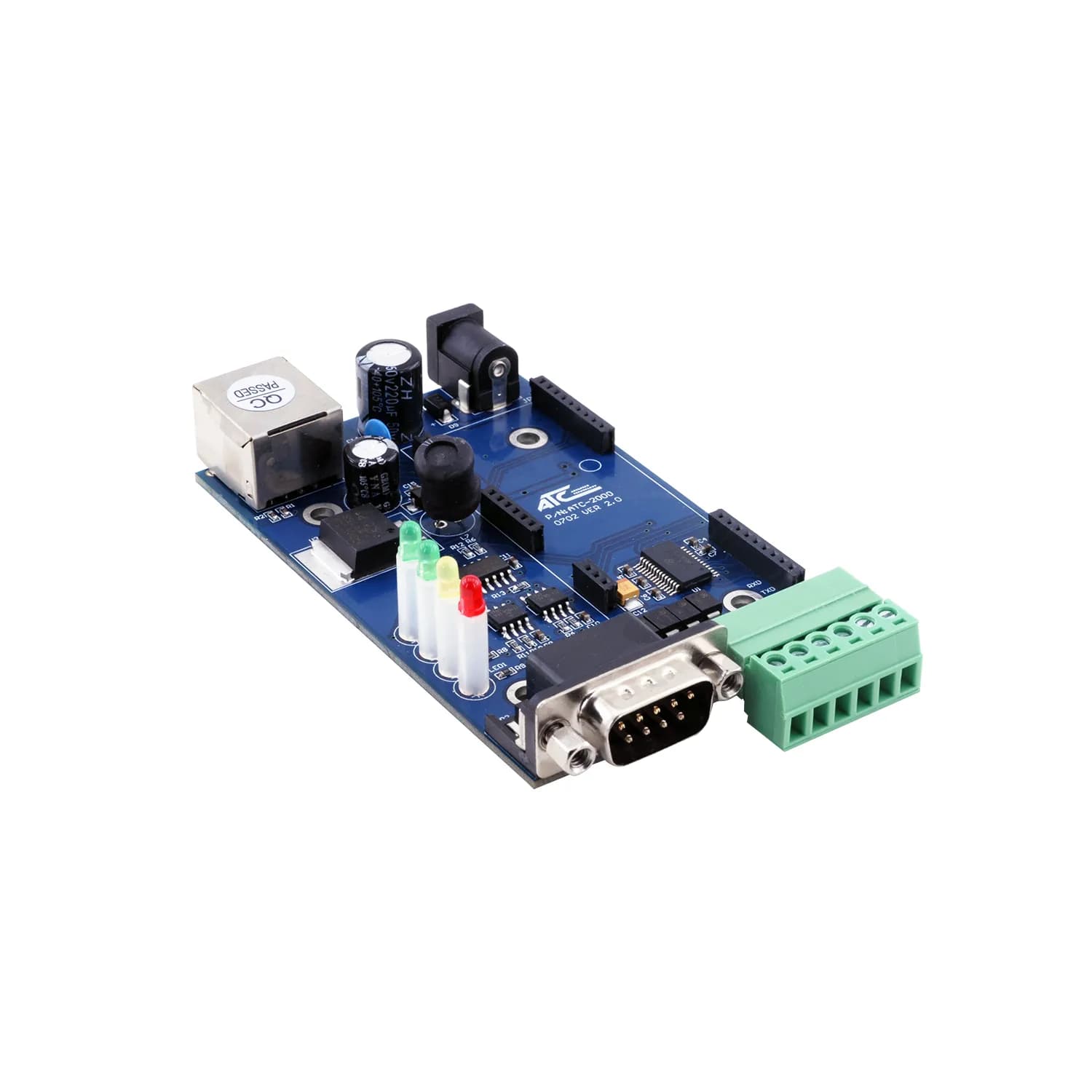

The ATC-2000EVB is a module used to connect RS-232/422/485 devices to a network via Ethernet.

Features

• ATC-2000EVB TTL interface serial port embedded module
• DB-9 (pin) RS-232 connector
• RJ-45 standard Ethernet interface
• Built-in power unit
• Comprehensive software & hardware fast-access solution

Runs the embedded serial server module on a ready-made board

RS-232/422/485Serial Interface

TTLModule Interface

DB-9Connector Type

RJ-45Network Interface

Key features

Embedded moduleThe TTL-interface serial port module sits on the board.

Serial connectorThe RS-232 side comes out on a DB-9 pin connector.

Network connectorA standard RJ-45 Ethernet interface takes the network cable directly.

PowerThe board runs on its built-in power unit and needs no separate adapter.

Software and hardwareA complete kit gets the solution running quickly.

TCP/IP - RS232/422/485 Evaluation Kit

Similar Products

RS232/422/485 to Multi-Mode Fiber Optic Converter

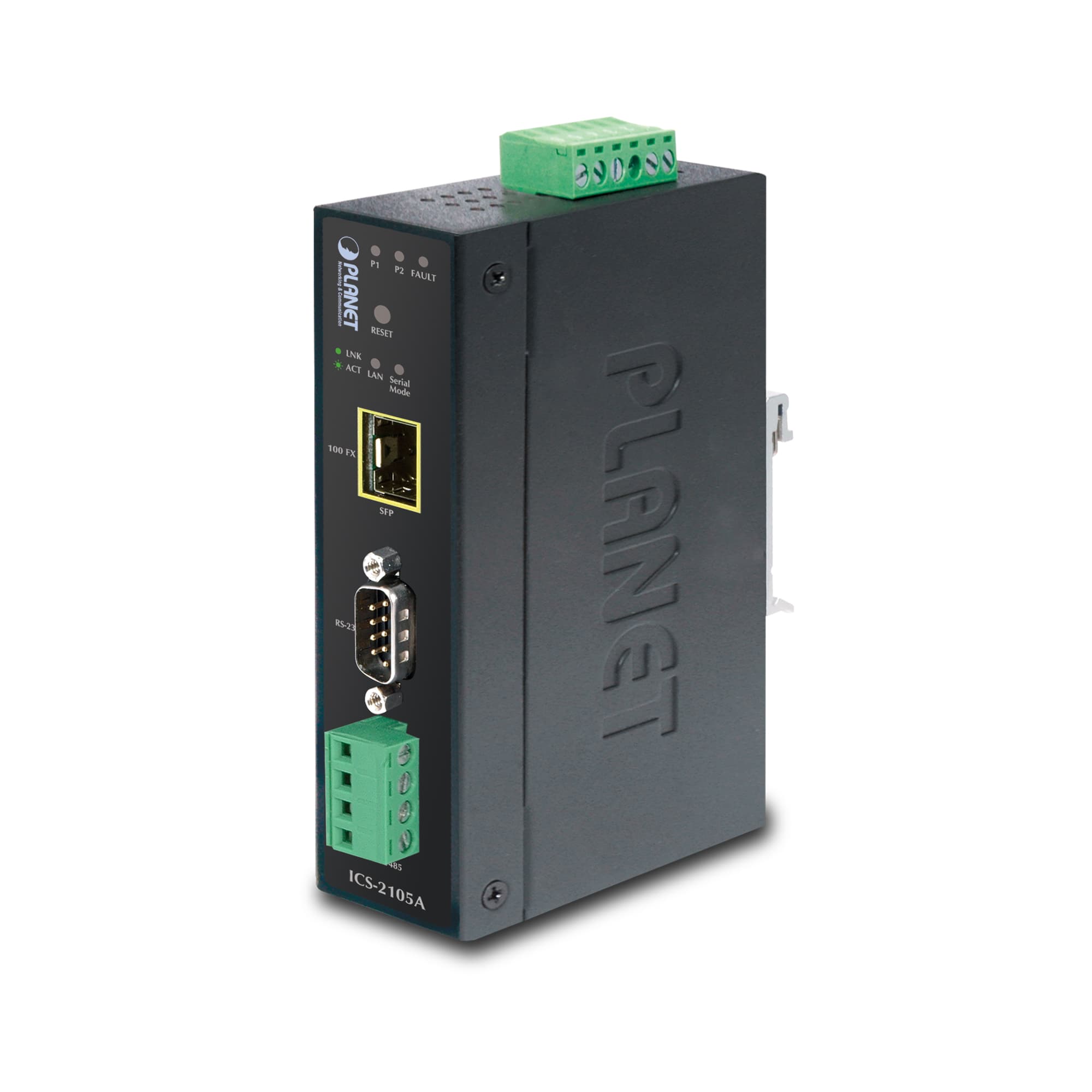

IP30 Industrial RS232/RS-422/RS485 to 100Base-FX Fiber Optic (SFP) Converter
