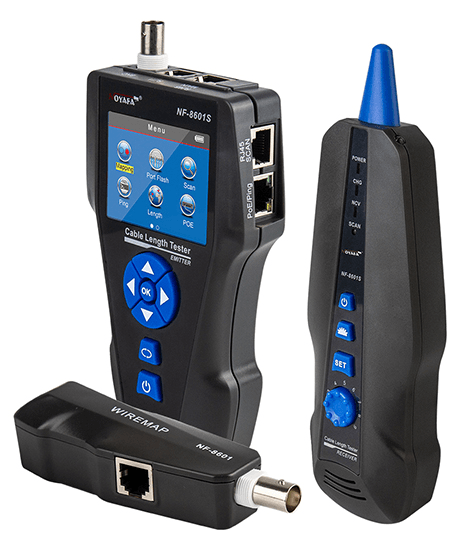

Upgraded from the NF-8601, the NF-8601S provides full cable testing for network, coaxial, or telephone cables of different categories. Its smart cable mapping feature tests for length, shorts, and split pairs, or displays the fault location via an intuitive graphical interface (using TDR technology: Time Domain Reflectometry). Additionally, it can locate and trace cables more easily with an AC filter or find network ports using the hub blink feature. It can also test for the presence of PoE and PING functions, making it an indispensable tool for any network technician.
Measures cable length and displays the distance to a fault.
PoE presence: identifies which pins provide power and detects voltage levels.
PING function to test network performance, data packets, and minimum/maximum latency.
Tone tracing cable with full AC interference rejection, easier to use than other trackers on the market.
Hub blink feature locates the network port via the flashing port light on a server/switch/hub/router.
Basic troubleshooting functions: length, distance to fault, graphical cable mapping, open circuits, shorts.
Includes TF card for transferring data to a computer (50 sets, txt format) or for online updates.
Roughly locate break or short positions using the tone function.
Voltage detector included in the receiver (90–1000V).
Benefits:
Dual-tone tracing mode: standard switch and PoE switch.
Large 320×240 color LCD with backlight for dark environments.
Storage and memory functions.
Low voltage alarm function and automatic power on/off delay.
