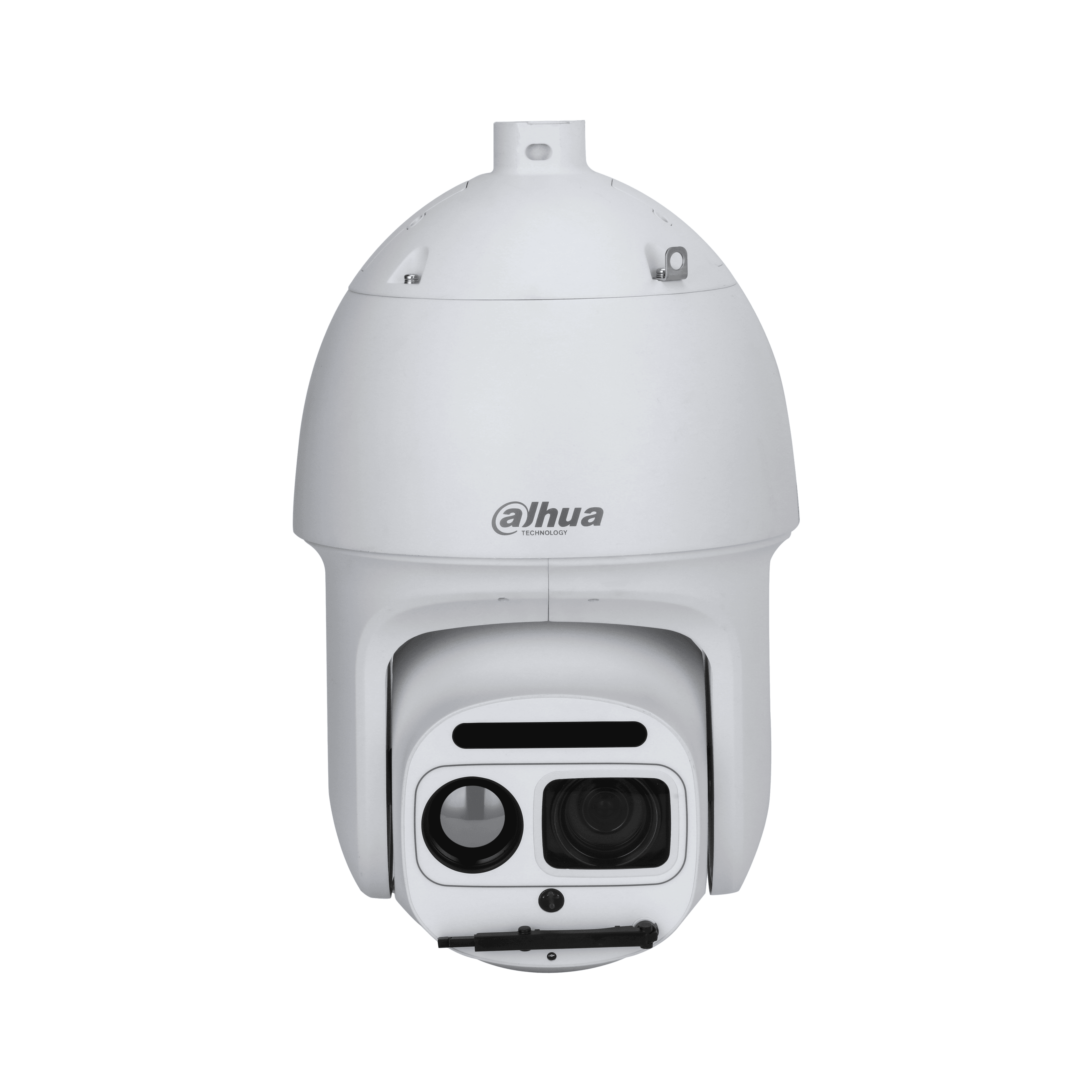

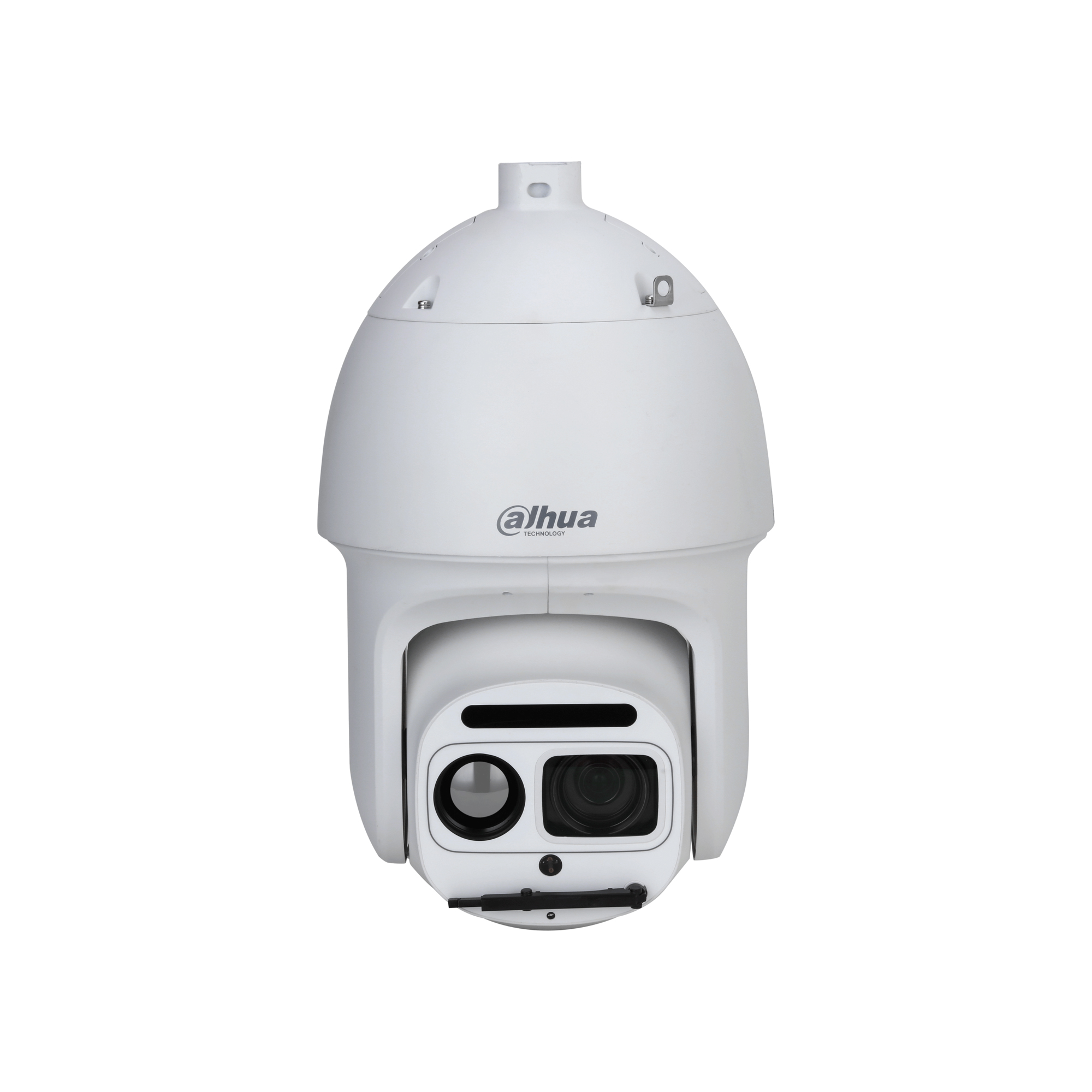

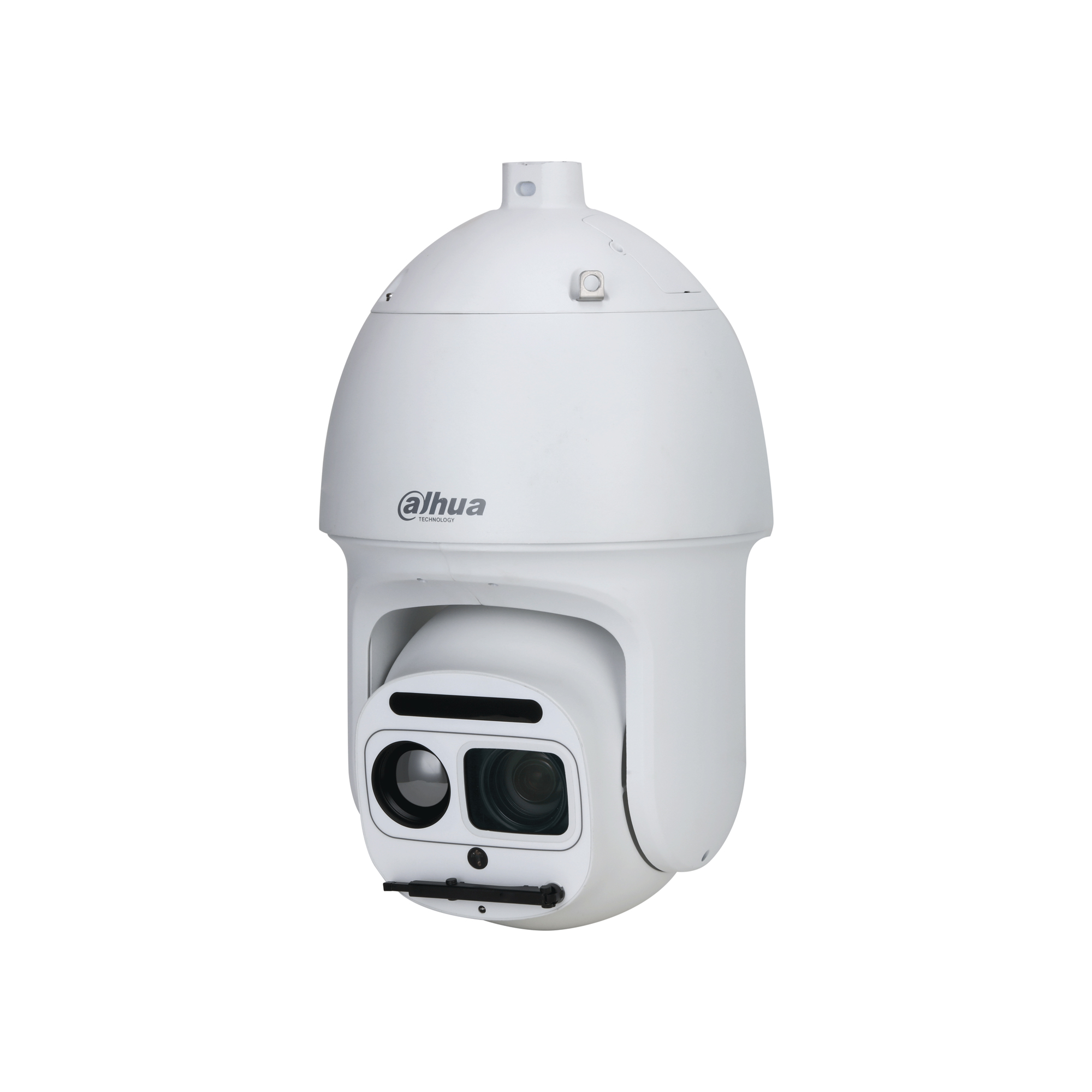

Name: Thermal Network Hybrid Speed Dome Camera
Brand: Dahua
SKU: TPC-SD8441B

Covers long-range surveillance with a thermal and a visible camera in a single housing.

The thermal detector picks up heat signatures in darkness and smoke, while the 4 MP visible camera delivers a color image of the same scene. AI rules tell boats, engineering trucks and heat sources apart and separate people from vehicles. The IP66 housing works outdoors from –40 °C to +70 °C.

4 MPVisible camera resolution

1/1.8" CMOSSensor

45×Optical zoom

150 mIR LED Distance

IP66Protection Grade

512 GBMicro SD card

Key features

45×

Optical zoom

The visible lens brings a distant target into close view at the tele end.

150m

Infrared illumination

The illuminator switches on in the dark and shows the scene up to 150 m.

300presets

Position memory

It stores frequently watched points; 8 tours step through 32 presets each.

18palettes

Thermal color palettes

It switches between palettes such as white hot, iron red and fusion.

512GB

Local recording

A micro SD card keeps footage on the camera itself.

7alarm inputs

External alarm wiring

Seven alarm inputs and two alarm outputs tie external sensors to the camera.

IN DAILY USE

Two images on one screenIt shows the thermal and visible streams side by side in a picture-in-picture layout.

Built for the weatherAn automatic rain sensor runs the wiper and keeps the window clear.

Fast on targetThree-dimensional positioning turns the camera straight to the area the operator picks on screen.

Usage AreasPerimeter protection and border monitoring·Port and coastline surveillance·Heat source and fire risk monitoring

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 µm

Spectral Range

8 µm – 14 µm

Sensitivity (NETD)

<35 mK (@f/1.0)

Focal Length

25 mm; 35 mm; 50 mm

Field of View

25 mm: H: 15.5°; V: 11.6°
35 mm: H: 11.1°; V: 8.3°
50 mm: H: 7.8°; V: 5.8°

Thermal Focus Control

Fixed-focal

Close Focus Distance

25 mm: 1 m (3.28 ft)
35 mm: 1 m (3.28 ft)
50 mm: 1 m (3.28 ft)

Detection Distance①

25 mm: Vehicle: 2,262 m (7,422.71 ft); Human: 735 m (2,411.42 ft)
35 mm: Vehicle: 3,167 m (10,391.80 ft); Human: 1,029 m (3,375.98 ft)
50 mm: Vehicle: 4,525 m (14,845.43 ft); Human: 1,471 m (4,826.12 ft)

Recognition Distance②

25 mm: Vehicle: 555 m (1,820.67 ft); Human: 189 m (620.08 ft)
35 mm: Vehicle: 777 m (2,548.93 ft); Human: 265 m (869.42 ft)
50 mm: Vehicle: 1,110 m (3,641.33 ft); Human: 378 m (1,240.16 ft)

Identification Distance③

25 mm: Vehicle: 280 m (919.00 ft); Human: 95 m (311.68 ft)
35 mm: Vehicle: 392 m (1,286.60 ft); Human: 132 m (433.07 ft)
50 mm: Vehicle: 560 m (1,838.01 ft); Human: 189 m (620.08 ft)

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°; Mirror

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald/spring/summer/autumn/winter)

Visible

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixels

4 MP

Horizontal Resolution

≥1200 TVL

Minimum Illumination

Color: 0.001 lux@F1.4
B/W: 0.0001 lux@F1.4
IR on: 0 lux

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

≥55 dB

White Balance

Auto; Manual; Indoor; Outdoor; Tracking; Sodium Lamp; Street Lamp; Natural

Defog

Electronic defog

Visible Image Stabilization

Electronic Image Stabilization (EIS)

Electronic Shutter Speed

1 s – 1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Digital Zoom (Visible)

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Auto

Image Flip (Visible)

Yes

Exposure Compensation

Yes

Visible Focus Control

Auto/semi-auto/manual

Focal Length (Visible)

5.5 mm – 248 mm

Zoom Speed

<7 s

Field of View (Visible)

H: 62.32° – 1.71°
V: 36.55° – 1.0°

Close Focus Distance (Visible)

0.5 m – 2 m (1.64 ft – 6.56 ft)

Optical Zoom

45×

Aperture

F1.4 – F4.5

Illuminator On/Off Control

Auto/Manual

Illumination Distance

150 m (492.13 ft)

Audio and Video

Video Compression

H.265; H.264; H.264H

Resolution (Thermal)

Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default)
Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default)

Resolution (Visible)

Main stream: 4 MP (2688 × 1520); 4 MP (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 1080p (default)
Sub stream: D1 (704 × 576); CIF (352 × 288); D1 (704 × 576) (default)

Video Frame Rate (Thermal)

50 Hz: (main stream) 1 fps – 25 fps adjustable, 25 fps by default; (sub stream) 1 fps – 25 fps adjustable, 15 fps by default
60 Hz: (main stream) 1 fps – 30 fps adjustable, 30 fps by default; (sub stream) 1 fps – 30 fps adjustable, 15 fps by default

Video Frame Rate (Visible)

Audio Compression

G.711a; G.711mu; AAC

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to +360°
Tilt: –27° to +90°

Manual Control Speed

Pan: 0.1°/s – 200°/s
Tilt: 0.1°/s – 120°/s

Preset Speed

Pan: 0.1°/s – 240°/s
Tilt: 0.1°/s – 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power-off Memory

Yes

Privacy Masking

4 by default

Idle Motion

Preset; Pattern; Tour; Scan; Horizontal Rotation

Timing Task

Preset; Pattern; Tour; Scan; Horizontal Rotation

Position Display

On/Off

Wiper

Auto rain-sensing. Supports setting wiper running times, frequency, and period.

3D Positioning

Yes

Function

Two-way Audio

Yes

Network Protocol

HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Region of Interest (RoI)

Yes (customizable)

Storage

Micro SD card

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI; Dahua SDK

Browser

IE: IE8 and later
Chrome: 42 and earlier
Firefox: 42 and earlier

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

PIP

Yes

Intelligence

Heat Detection

Yes

Cold/Hot Spot Trace

Yes

IVS (Perimeter Protection)

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Target Tracking

Yes

Target Filtering

Yes

Smoking Detection

Yes

Call Detection

Yes

Smoke Detection

Yes

Boat Detection

Yes

Engineering Truck Detection

Yes

Panoramic PTZ

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

Alarm Output

Audio Input

Audio Output

RS-485

Power

Power Supply

36 VDC ± 25%, Hi-PoE

Power Consumption

Basic: 30 W
Max: 50 W (illuminator)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–50 °C to +80 °C (–58 °F to +176 °F)

Physical Characteristics

Protection

IP66

Reliability

Surge protection: 6 kV
Air discharge: 15 kV
Contact discharge: 8 kV

Structure

Product Dimensions

300 mm × 300 mm × 500 mm (11.81" × 11.81" × 19.69") (L × W × H)

Packaging Dimensions

435 mm × 435 mm × 666 mm (17.13" × 17.13" × 26.22") (L × W × H)

Net Weight

≤13 kg (28.66 lb)

Gross Weight

≤16 kg (35.27 lb)

Heat Detection Distance

Focal Length	Max. Distance
25 mm	1,548 m (5,078.74 ft)
35 mm	2,167 m (7,109.58 ft)
50 mm	3,096 m (10,127.48 ft)

Perimeter Protection Distance

Focal Length	Distance (Human)	Distance (Vehicle)
25 mm	175 m (574.15 ft)	525 m (1,722.44 ft)
35 mm	245 m (803.81 ft)	735 m (2,411.42 ft)
50 mm	350 m (1,148.29 ft)	1,050 m (3,444.88 ft)
