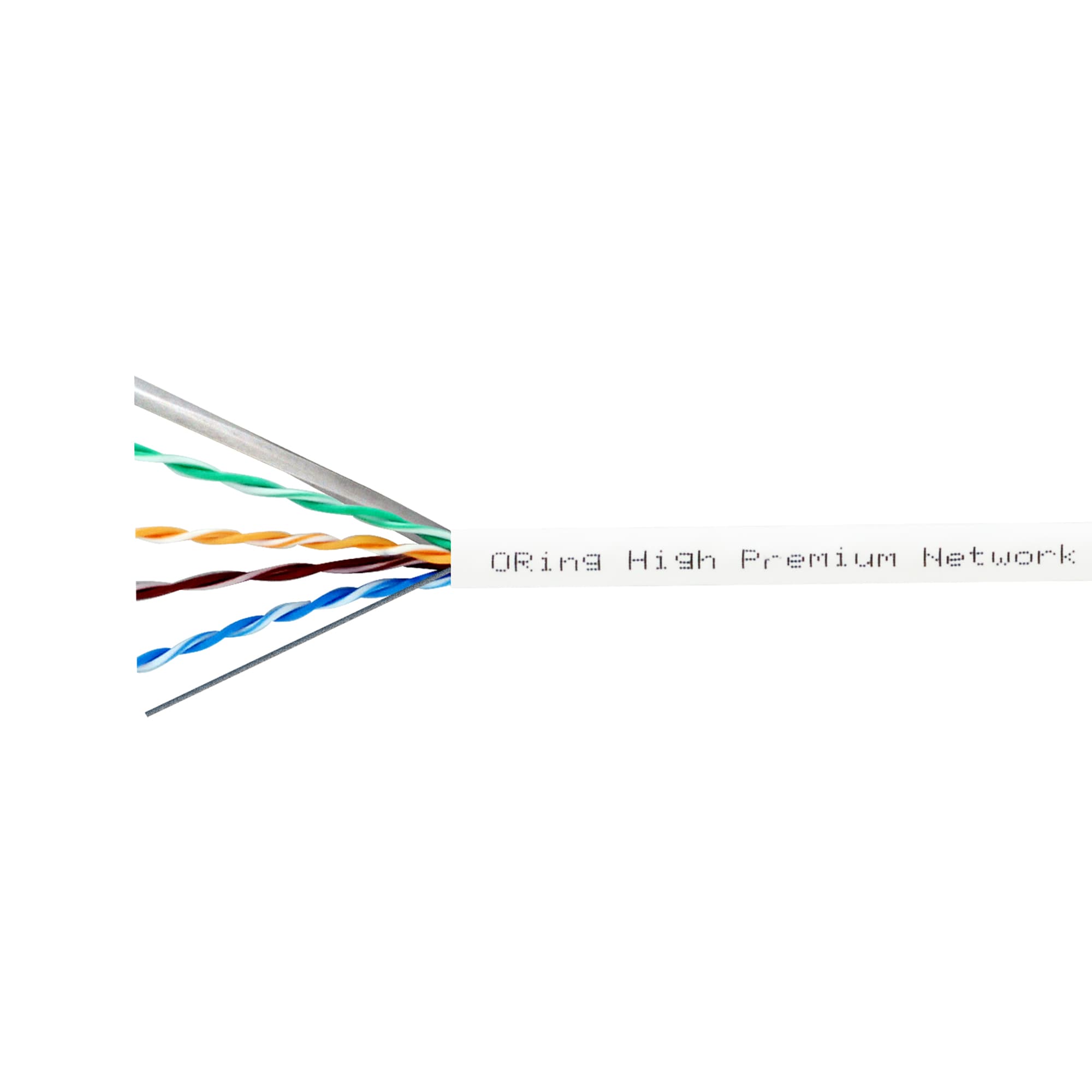

U/UTP CAT6 23AWG LSZH Network Cable 305mt
Oring Networking
U/UTP CAT6 23AWG LSZH Network Cable 305mt
Stock Code: RW-U0601WH
Request Quote
Features
Technical
Downloads
Manufactured according to ANSI/TIA/EIA 568-C.2, ISO/IEC, and CENELEC EN standards
Supports ANSI/TIA T568A and T568B connection types
Complies with ISO/IEC 11801 Class E, 2nd Edition CENELEC EN 50173-1 standards
Complies with IEC 61156-5, CENELEC EN 50288-6-1 standards
250MHz bandwidth support at a distance of 100 meters
Complies with flame retardance IEC 60332-1-2 standards
Separator to prevent signal interference between twisted-pair strands
23AWG copper solid conductor
Cable outer diameter (O.D.) is 6.2mm
LSZH (Low Smoke Zero Halogen)
1000 Base-TX Gigabit Ethernet
10Base-T, 100Base-TX Fast Ethernet
(IEEE 802.3) 100 VG – AnyLAN
(IEEE 802.12) 155/622 Mbps ATM
100MHz Broadband Video
Voice, T1, ISDN
Operating temperature: -20°C to 60°C
White (RAL9010)
305m
