Traces de-energized cables behind walls and underground.

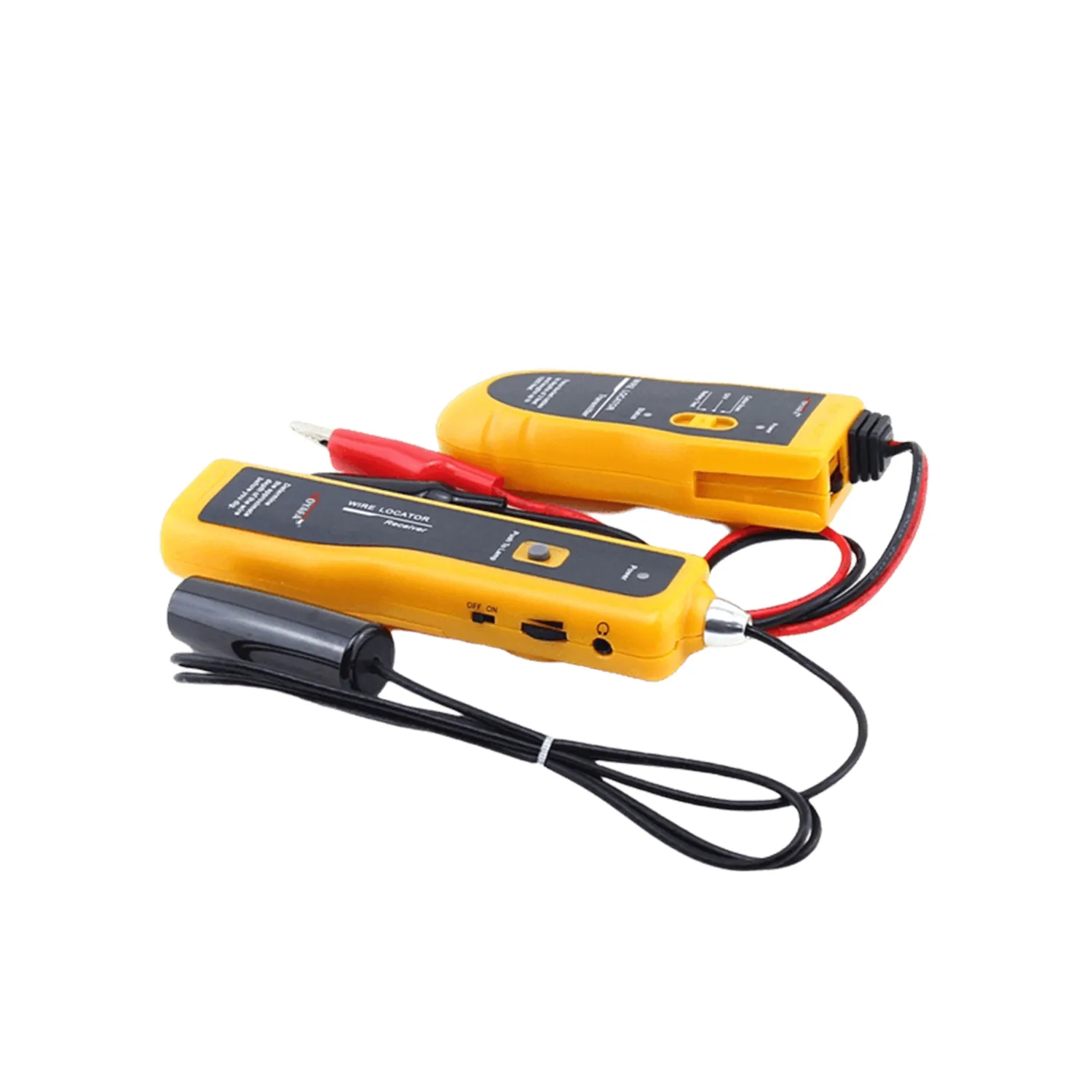

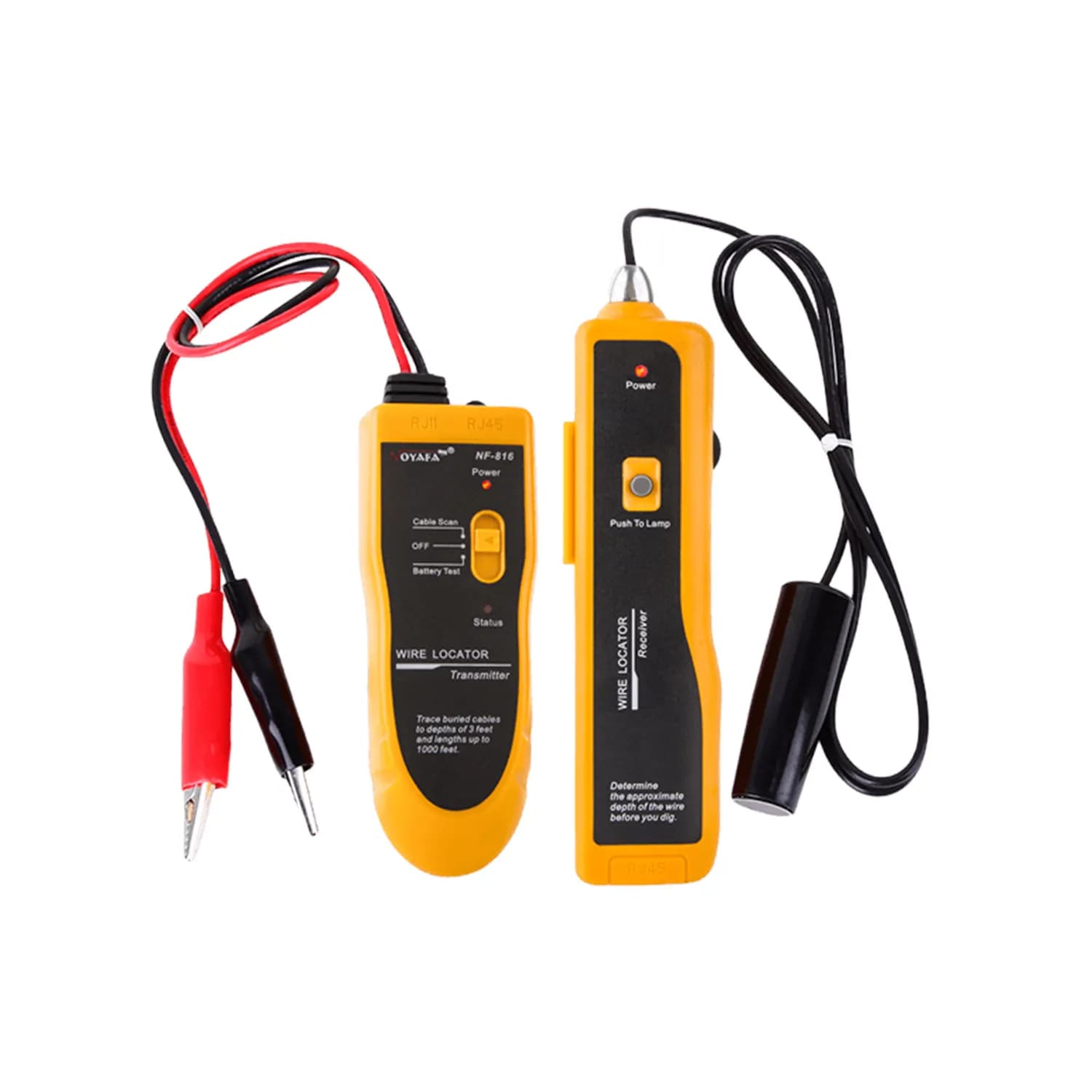

The transmitter injects a 200 kHz tone onto the line and the receiver follows that tone from the surface to map the cable route. Clip tips attach to electrical wires, CATV coax, telephone drops, irrigation control pipes or metallic pipes. It verifies where a line runs before any drilling or digging starts.
200 kHzTone frequency
15 V p-pMax. signal voltage
Below 70 mAMax. working current
DC 9.0 VTransmitter and receiver supply
49 × 135 × 33 mmTransmitter dimensions
43 × 168 × 27 mmReceiver dimensions
Key features
De-energized wire tracingFinds the path of de-energized cables behind walls and underground.
Circuit breaker matchingTells the line feeding one specific circuit breaker apart from the rest.
Check before drillingVerifies the cable route before drilling a wall or starting an excavation.
Wide connection choiceClip tips connect to CATV coax, telephone drops, irrigation control pipes and metallic pipes.
Audible trackingThe receiver reports the signal as a tone, and the earphone jack helps on noisy sites.
