Stock Code: KTX02

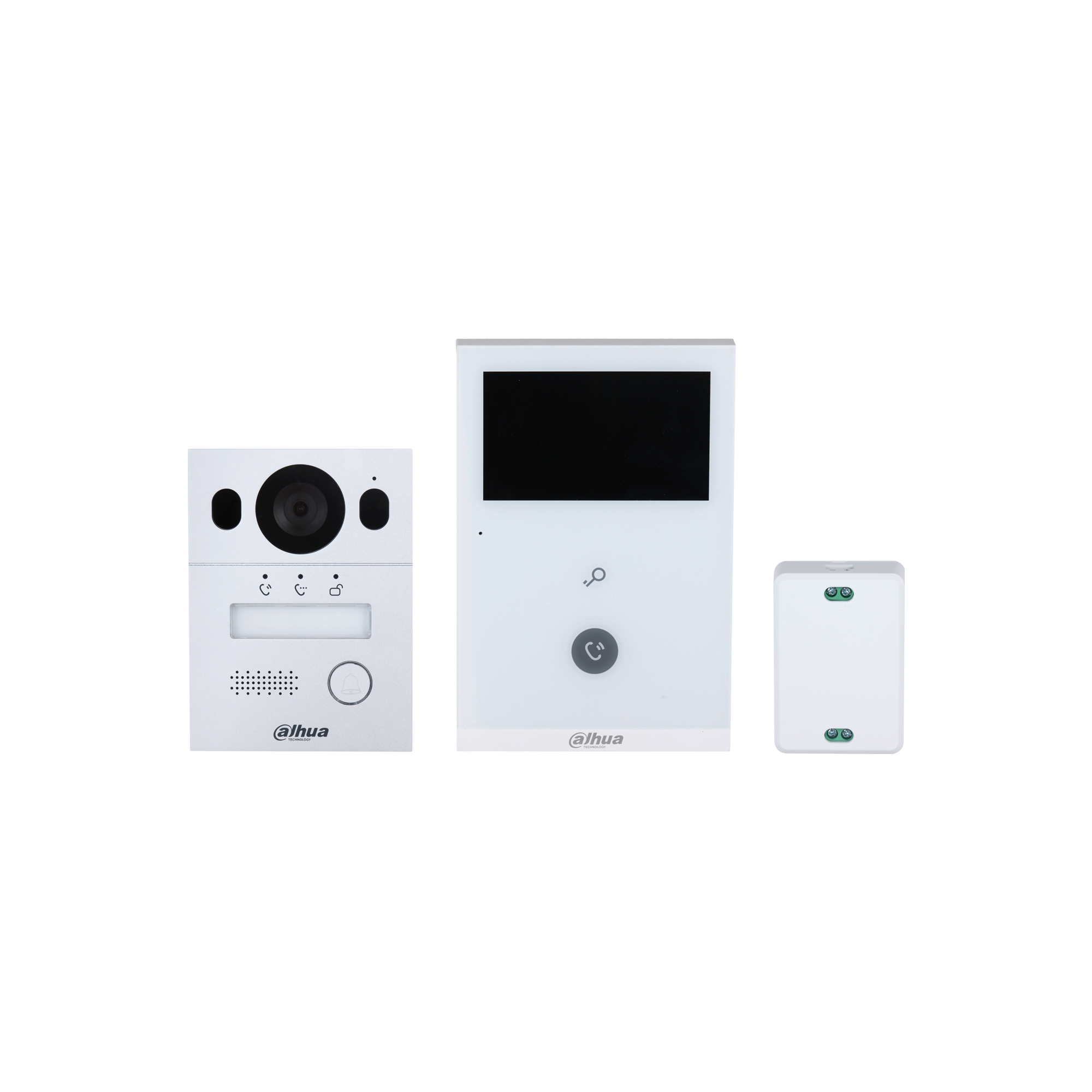

| Technical Specifications: Indoor Monitor (DHI-VTH5113H-W) | |
| Display | 4.3" TFT Capacitive Touch Screen (480 × 272) |
| Audio Mode | Two-way audio with VTO (half-duplex); with app (full-duplex) |
| Wi-Fi / Storage | Yes (2.4 GHz, IEEE 802.11b/g/n) / Micro SD card (up to 64 GB) |
| Ports | 4-ch Alarm Input, 1-ch Alarm Output, Door Bell support |
| Power Consumption | ≤2.2 W (standby), ≤9 W (working) |
| Dimensions / Weight | 176.3 mm × 119.3 mm × 20.0 mm / 548.5 g |
| Technical Specifications: Outdoor Station (DHI-VTO2003F) | |
| Camera | 1/2.8" 2 MP CMOS HDR Camera (H: 110°; V: 60°) |
| Protection | IP65; IK07; Tamper Alarm |
| Ports | RS-485, Alarm Output, 12 V Output (200 mA), Lock Control |
| Power Consumption | ≤1.5 W (standby), ≤10 W (working) |
| Technical Specifications: 2-Wire Controller (VTNC1003C) | |
| Power Output | 48 V / 0.9 A (48 VDC supply) |
| Dimensions / Weight | 65.2 mm × 46.2 mm × 23.2 mm / 130 g |
