Shows breaks and sharp bends in a fiber link to the naked eye.

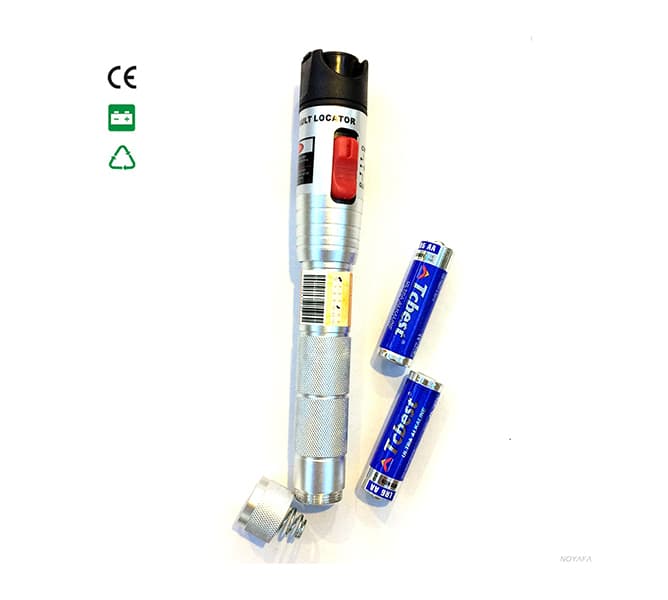

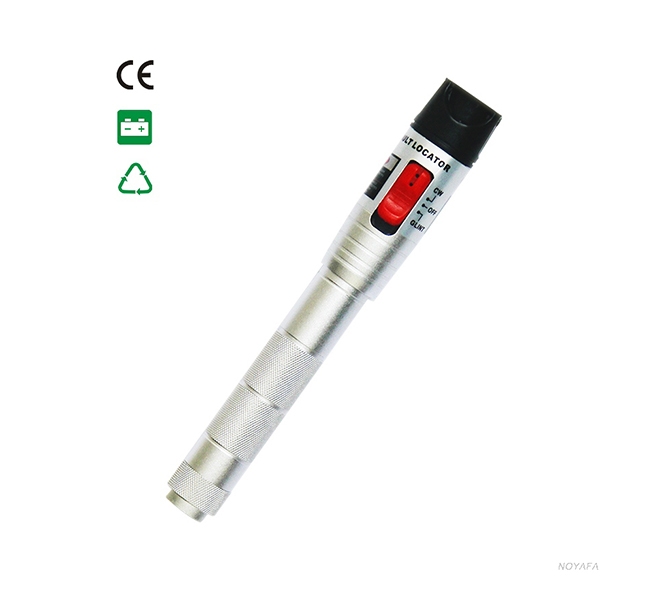

A visual fault locator for fiber optic installation and splicing work. It sends light into jacketed or bare fiber, and the break or excessive bend glows through the jacket.
10 mWOutput power
2.5 mmUniversal connector
SM / MMFiber Type
FCInterface type
-20 °C ~ +60 °COperating Temperature
Key features
Fault locationMarks the position of defects such as fiber breakage and winding in a visible way.
End-to-end fiber recognitionTells connectors apart inside a patch panel and shows which fiber is which during splicing.
Two operating modesRuns in continuous wave (CW) mode as well as 2 Hz pulsed mode.
Universal connectorThe FC interface accepts ST, SC and LC ends, and the 2.5 mm universal connector needs no complex adapter.
Rugged bodyThe weatherproof case works in the field between -20 °C and +60 °C.

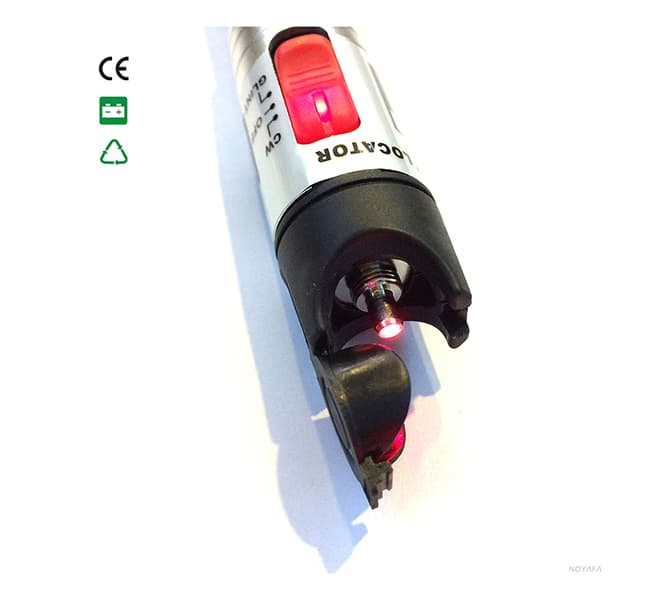

Looking directly into the laser output while the unit operates harms the eyes. The dust cap protects the fiber head from dust when the unit is not in use.
