    Noyafa

    Wall Pipe Blockage Detector

    Stock Code: NF-5140

    Marks a blockage inside a pipe without opening the wall

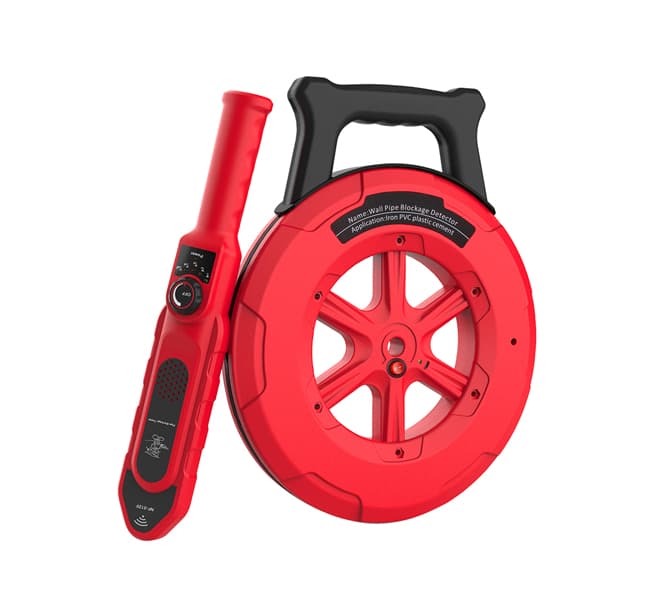

    A pipe blockage detector made up of a transmitter and a receiver. The waterproof probe travels inside the pipe while the receiver shows the blockage with a buzzing alert.
    40 mSignal length
    300 HzWorking frequency
    0-60 cmDetection in metal pipe
    0-15 cmDetection in non-metal pipe
    0-40°COperating Temperature
    Key features
    Waterproof probeTells wall studs, metal pipes, PVC pipes and water pipes apart.
    Wireless detectionFinds hidden blockage inside the pipe and reports it with a buzzing sound.
    Sensitivity adjustChanges the sensitivity of the receiver and picks up weak signals as well.
    Detection depthReaches 0-60 cm in metal pipe and 0-15 cm in non-metal pipe.
    Work hoursThe transmitter runs 10 hours and the receiver 20 hours; the USB cable charges both from a computer or a power bank.
    BatteryThe transmitter carries a 3.7 V 2600 mAh cell and the receiver a 3.7 V 1400 mAh cell.
    Transmitter Specification
    Signal Length 40m
    Scope of Application PVC / plastic / cement / iron / metal pipe
    Working Frequency 300Hz
    Work Hours 10H
    Working Temperature 0-40°C
    Power Supply 3.7V, 2600mAh

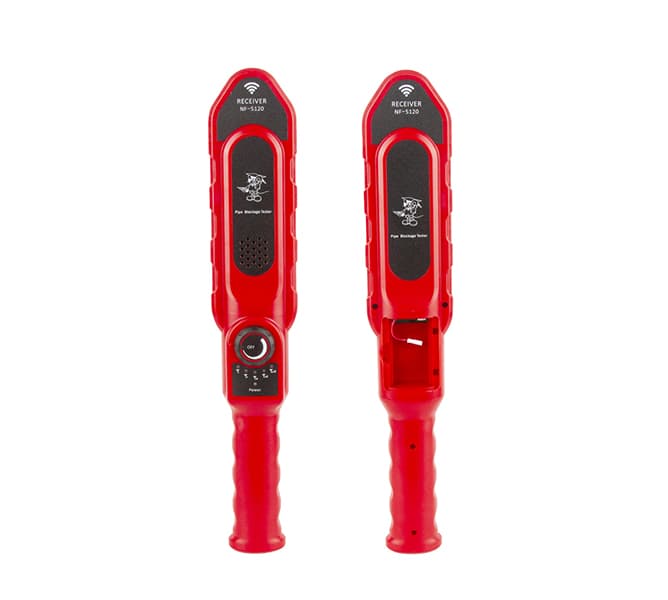

    Receiver Specification
    Distance Range 0-60cm (Metal pipe)
    0-15cm (Non-metal pipe)
    Sensitivity Adjust YES
    Working Frequency 300Hz
    Work Hours 20H
    Power Supply 3.7V, 1400mAh
