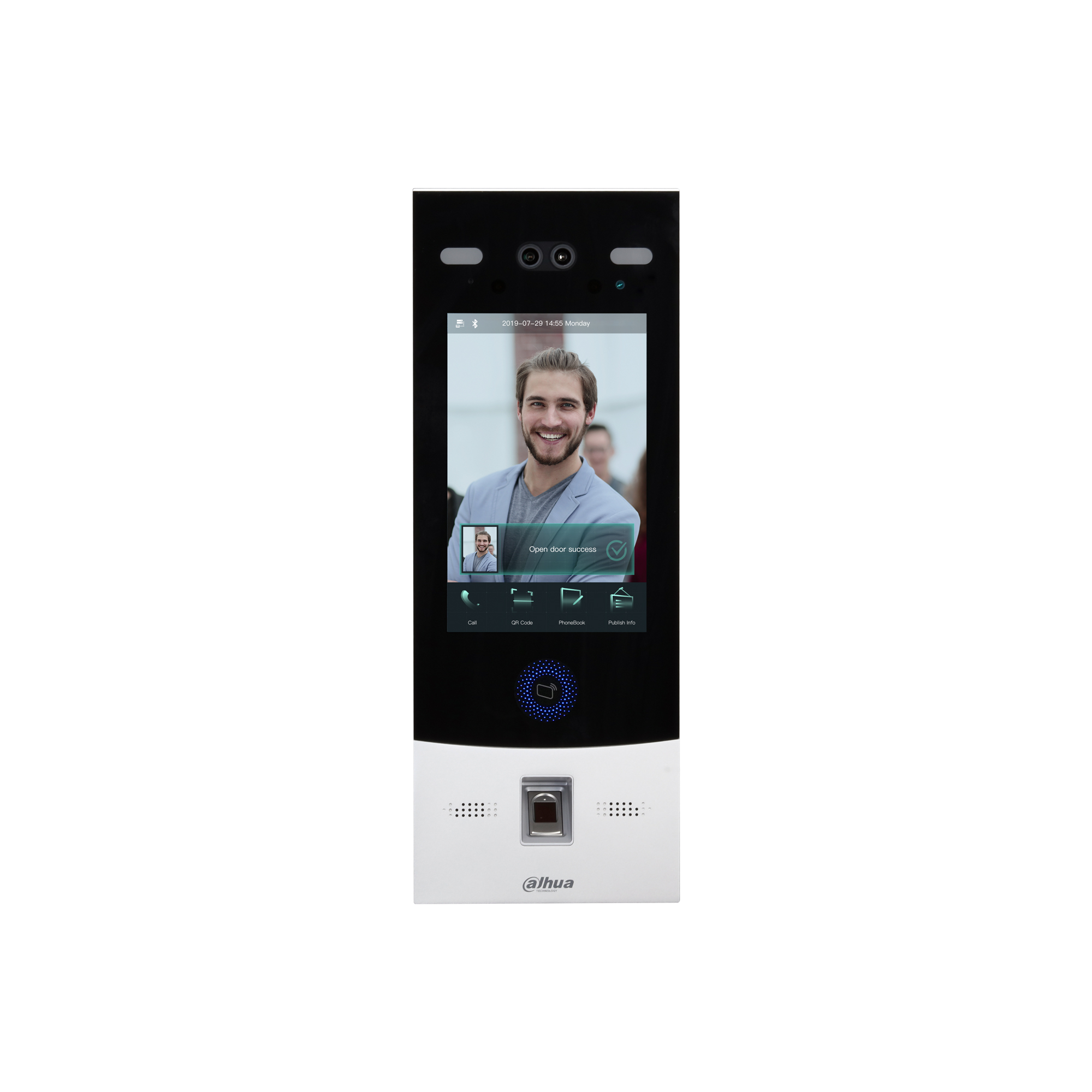

It recognizes faces in the dark and also unlocks by fingerprint.

Installed at the apartment entrance, this door station greets visitors with an 8-inch touchscreen and a dual-lens 2 MP camera. A white light illuminator lights the face in the dark, and face recognition, fingerprint, IC card, password or QR code opens the door.

8-inchTouchscreen

800 × 1280Resolution

2 MPDual-lens camera

50000Face record capacity

IP65Protection Grade

PoEPower Options

Key features

0.2s

Fast face verification

It compares one face against the enrolled records within this time per person.

99.9%

High recognition accuracy

It recognizes faces 0.3 m to 1.5 m away at this accuracy.

120dB

Clear image against backlight

WDR keeps the face visible at a sunlit entrance.

500mA

Module power output

It supplies 12 VDC power to the extension module or the card reader.

10000records

Fingerprint capacity

It keeps fingerprint records in the device memory and reads them in under one second.

EVERYDAY USE

Hands fullIt recognizes the resident approaching the door and releases the lock.

A visitor at the doorIt calls the apartment and starts a video call; if nobody answers, it leaves an audio and video message on the SD card.

Away from homeIt unlocks the door from the mobile app, and the indoor monitor and the management center open the same door.

Usage AreasApartment entrances·Building entrance doors

Silicone sealant is required on the housing for the IP65 rating; if a load is powered from the 12 V output, a PSE switch compliant with 802.3.at is required.

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Button Type / Interoperability

Touch Button / CGI; ONVIF

Network Protocol

TCP; RTMP; HTTP/HTTPS; DNS; RTSP; ONVIF; SIP; RTP

Display & Camera

Display

8-inch Capacitive Touchscreen (800 × 1280)

Camera

1/2.8" 2MP CMOS high-definition, low illumination, dual cameras

Field of View

H: 95°; V: 50°; D: 110°

WDR / Noise Reduction

120 dB / 3D NR

Video & Audio

Compression Format

Video: H.264, H.265; Audio: G.711a, G.711u, PCM

Video Bit Rate

1,024 kbps – 8,192 kbps (25 fps)

Audio Mode

Two-way audio; Echo suppression / digital noise reduction

Verification & Capacity

Verification Method

Fingerprint; Remote; Face Recognition; Card; Password

Performance

Face Recognition: 0.2 s; Fingerprint: ≤1 s; Card: 0–4 cm

Capacity

Card: 50,000; Face: 50,000; Fingerprint: 10,000

Ports & Functions

Interfaces

1 × RS-485; 1 × Wiegand; 1 × RJ-45 (10/100 Mbps)

Alarm In/Out

2 channels Input / 2 channels Output

Door Control

1 × Exit Button; 1 × Door Status; 1 × Lock Control

Special Functions

Tamper Alarm; Auto Snapshot; Leave Videos (SD Card)

General

Power Supply

12 V DC, 3 A; Standard PoE

Protection / Material

IP65 (Silicone sealant is required) / Metal Casing

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Dimensions / Weight

389 mm × 145 mm × 43.5 mm / 1.91 kg
