It recognizes the face, opens the door and authorizes the elevator floor.

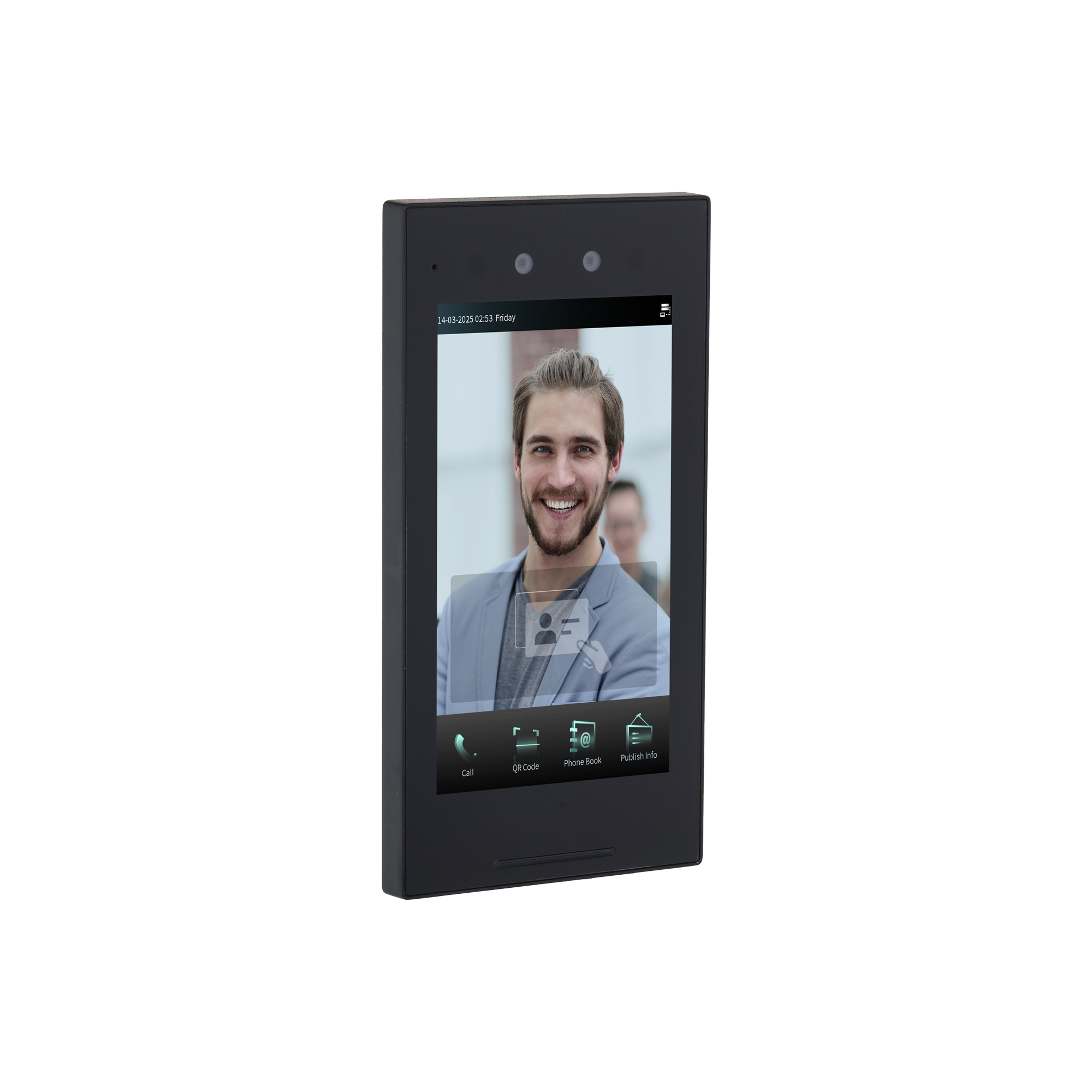

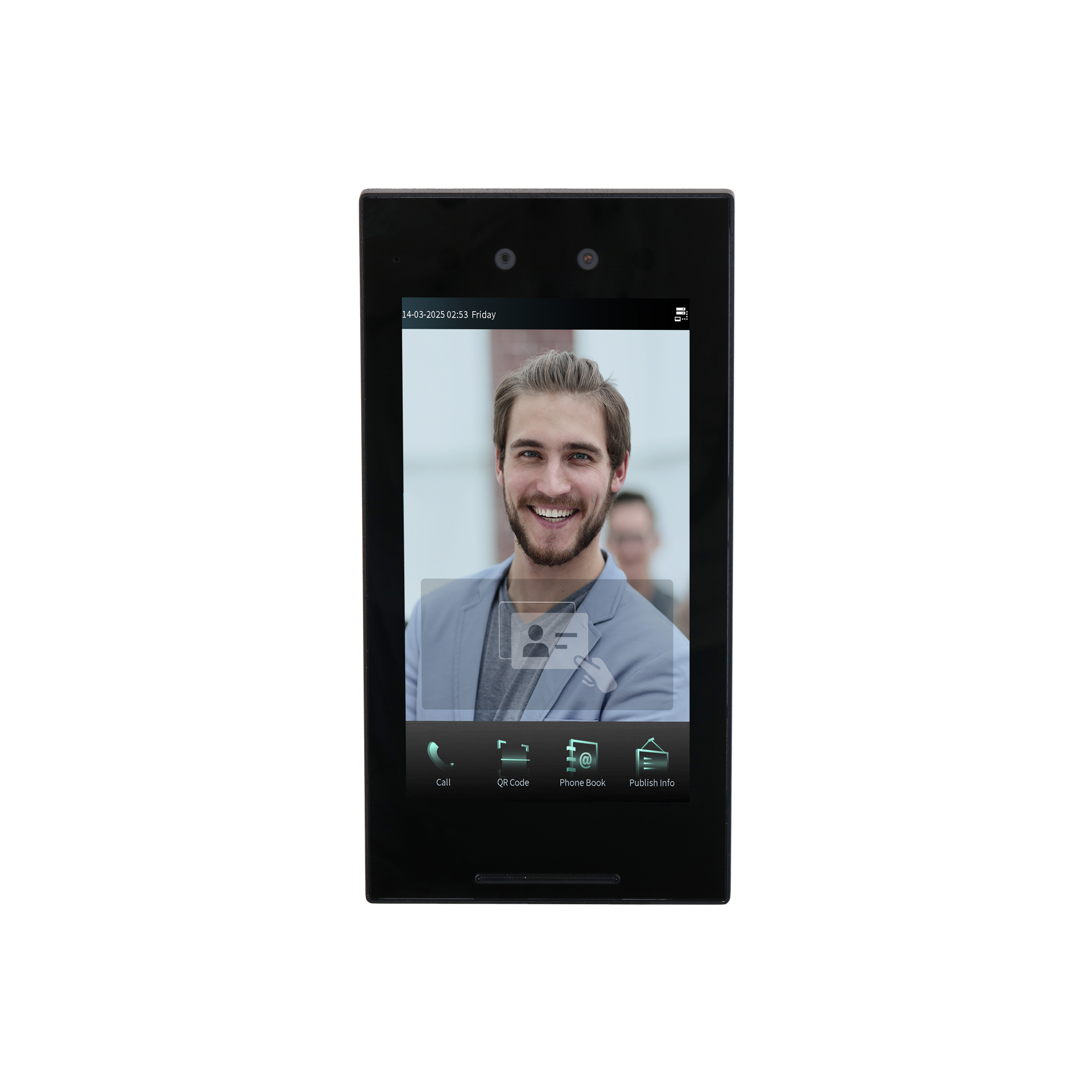

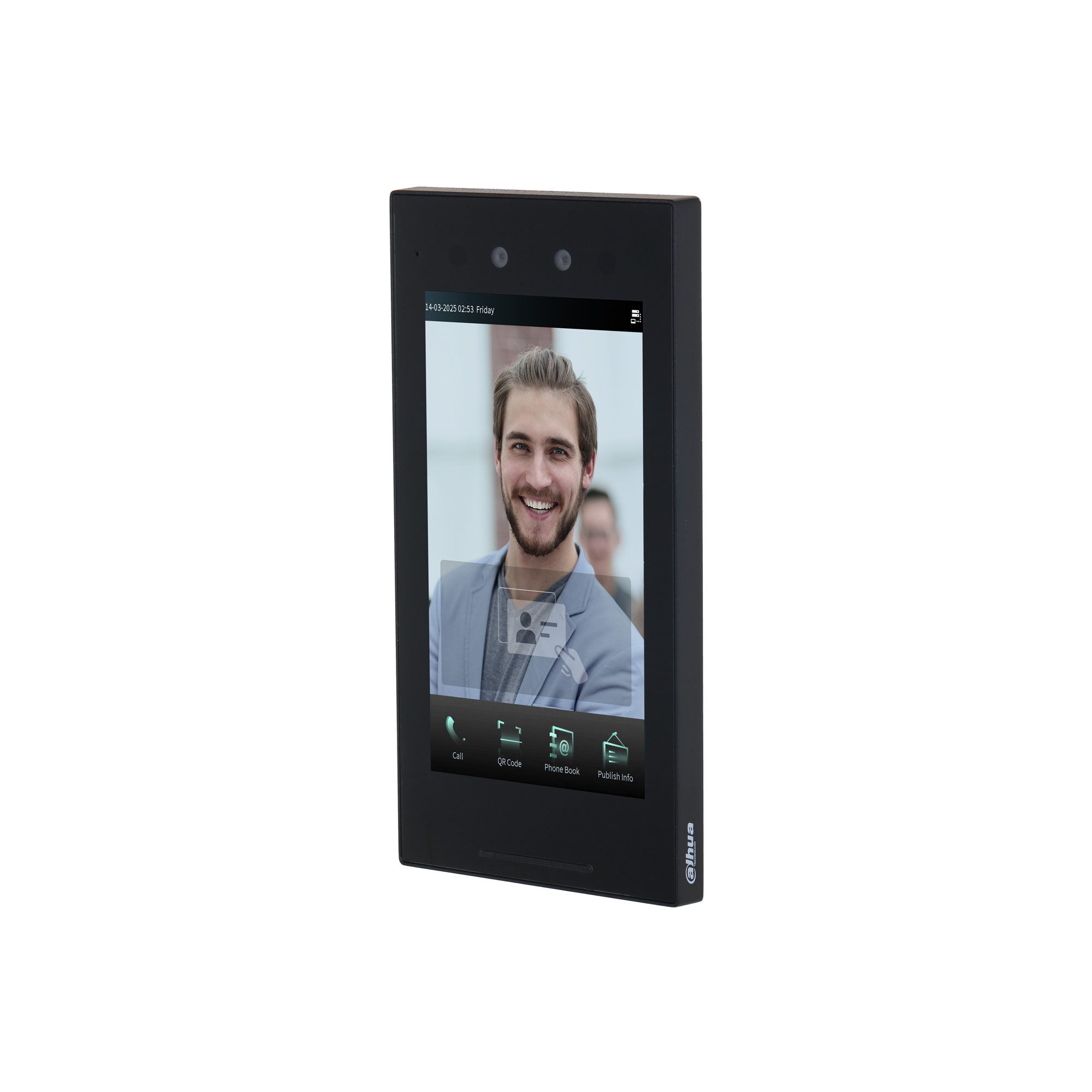

Installed at the apartment entrance, this door station greets visitors with a 7-inch touchscreen and a dual-lens 2 MP camera. It unlocks the door by face recognition, IC card and password, and it calls the elevator and authorizes the floor according to access rights.

7-inchTouchscreen

600 × 1024Resolution

2 MPDual-lens camera

50000Face record capacity

IP65Protection Grade

12 VDCPower supply

Key features

0.2s

Fast face verification

It compares one face against the enrolled records within this time per person.

99.9%

High recognition accuracy

It recognizes faces 0.3 m to 1.5 m away at this accuracy.

100000users

Large user capacity

It enrolls building residents and authorized visitors on a single device.

700mA

Module power output

It supplies 12 VDC power to the access control module or the card reader.

128GB

Local storage

It saves automatic snapshots on a Micro SD card.

EVERYDAY USE

Access up to the elevatorFor the resident who opens the door, it also releases the button of that resident floor according to access rights.

A visitor at the doorIt calls the apartment and starts a video call; if nobody answers, it leaves an audio and video message on the indoor monitor.

Recognition after darkAutomatic IR illumination steps in and picks out the face at night as well.

Usage AreasApartment entrances·Building entrance doors

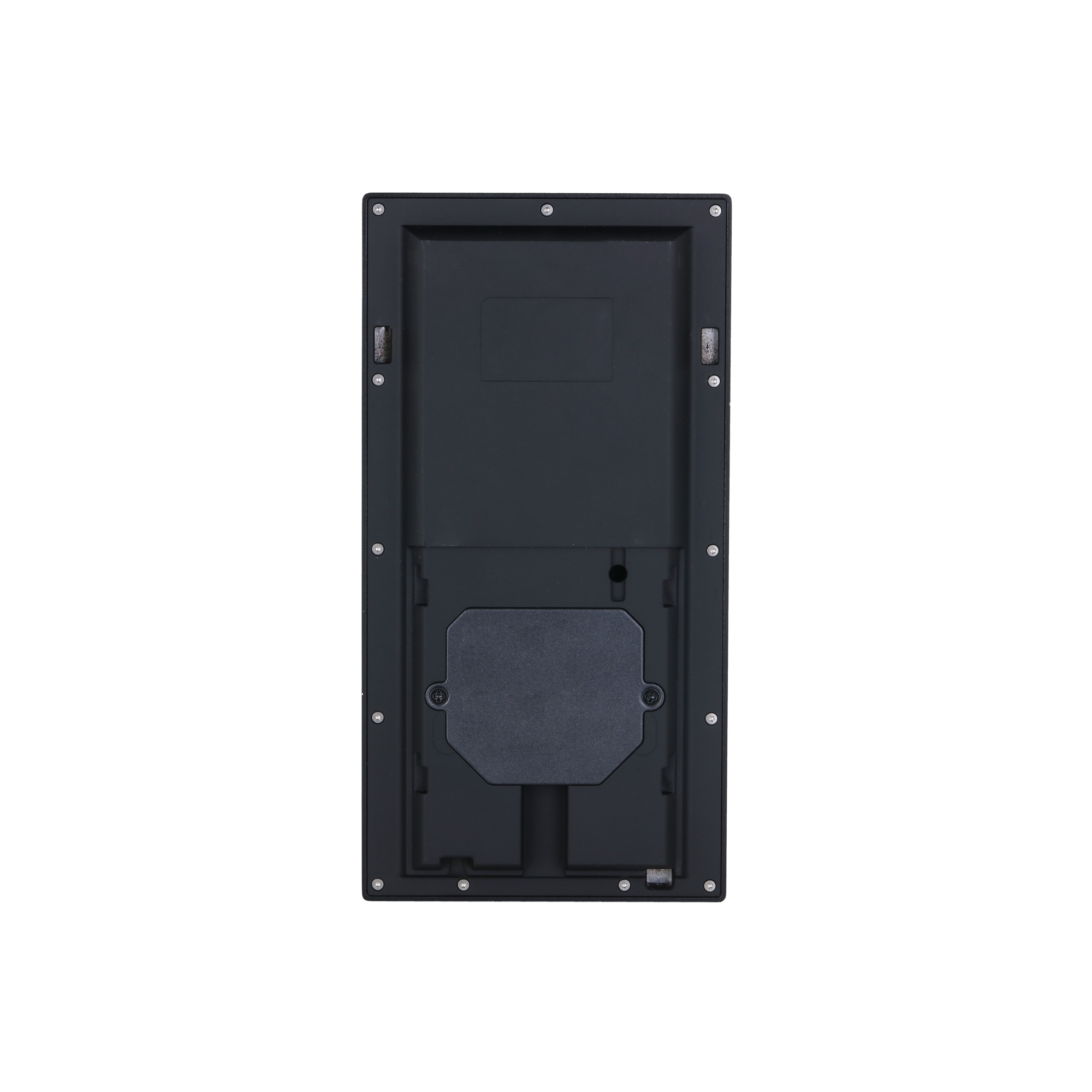

Silicone sealant is required on the flush mount plate for the IP65 rating.

System

Main Processor

Embedded Processor

Operating System

Embedded Linux OS

Interoperability

ONVIF; CGI

Network Protocol

RTP; SIP; DNS; SSH; RTSP; RTMP; FTP; HTTP/HTTPS; ONVIF

Display & Camera

Display Screen

7-inch Capacitive Touchscreen (600 (H) × 1024 (V))

Camera

1/2.8" 2 MP CMOS high-definition, low illumination, dual cameras

Field of View / WDR

H: 65°; V: 40°; D: 73° / DWDR

Light Compensation

Auto IR

Video & Audio

Compression Format

Video: H.264, H.265; Audio: G.711a, G.711u, PCM

Audio Mode

Two-way audio; Echo suppression; Digital noise reduction

Verification & Capacity

Verification Method

Remote; Face Recognition; Password; Card (IC Card)

Performance

Face Recognition: 0.2 s (0.3 m–1.5 m); Accuracy: 99.9%

Capacity

Card: 50,000; Face: 50,000; User: 100,000

Ports & Special Functions

Interfaces

1x RS-485; 1x Wiegand; 1x RJ-45 (10/100 Mbps)

Alarm In/Out

2 ch Input / 2 ch Output; Tamper Alarm

Elevator Control

Call elevator; Access floors via access control

Storage

Micro SD Card (up to 128 GB); Auto Snapshot

General

Power Supply

12 VDC, 3 A

Protection / Material

IP65 / Tempered glass & Aluminum alloy

Operating Temp.

–30 °C to +60 °C

Dimensions / Weight

219.7 mm × 113.4 mm × 24.3 mm / 0.82 kg
