Артикул: POE-173
PLANET POE-173 Ultra Power over Ethernet Injector provides a maximum of up to 60-watt power and high speed Ethernet data connection anywhere in your network infrastructure. PLANET Ultra Power over Ethernet solution contains two brand-new products:
■ POE-173: 60-watt Ultra Power over Ethernet Injector
■ POE-171S: 12V / 19V / 24V DC Power over Ethernet Splitter
Quick and Easy Gigabit Ultra Power PoE Network Deployment
The POE-173 is a Single-Port, Ultra Power over Ethernet Injector with a maximum of up to 60 watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment such as:
■ PTZ Speed Dome
■ AIO(All-in-One) touch PC
■ Remote digital signage display
■ Other network devices that need higher power to work normally.
The POE-173 delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 60-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter – the POE-171S – will separate the digital data and the power into three optional outputs (12V / 19V / 24V DC) with distance up to 100 meters.
60 watts of Power over 4-Pair UTP
The POE-173 and POE-171S Ultra PoE solution use the same cabling standard as IEEE 802.3at / af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-Span (Pin 1,2,3 and 6) or Mid-Span (Pin 4,5,7 and 8), it provides the capability to source up to 60 watts of power by using all the four pairs of standard Cat5e / Cat6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.
|
PoE Standard
|
IEEE 802.3af
(802.3at Type 1) |
IEEE 802.3at
(802.3at Type 2) |
Ultra PoE
(POE-173) |
|
Maximum Power
delivered by PSE |
15.4 watts
|
30 watts
|
60 watts
|
|
Power Available at PD
|
12.95 watts
|
25.5 watts
|
50 watts
|
|
Voltage Range
|
48V
|
50~57V
|
50V
|
|
Twisted Pair Used
|
2-Pair
|
4-Pair
|
|
|
Supported Modes
|
End-Span or Mid-Span
|
End-Span + Mid-Span
|
|
|
Supported Cabling
|
Cat 3/5/5e/6
|
Cat5e/6
|
|
All-in-One and Compact Size Design

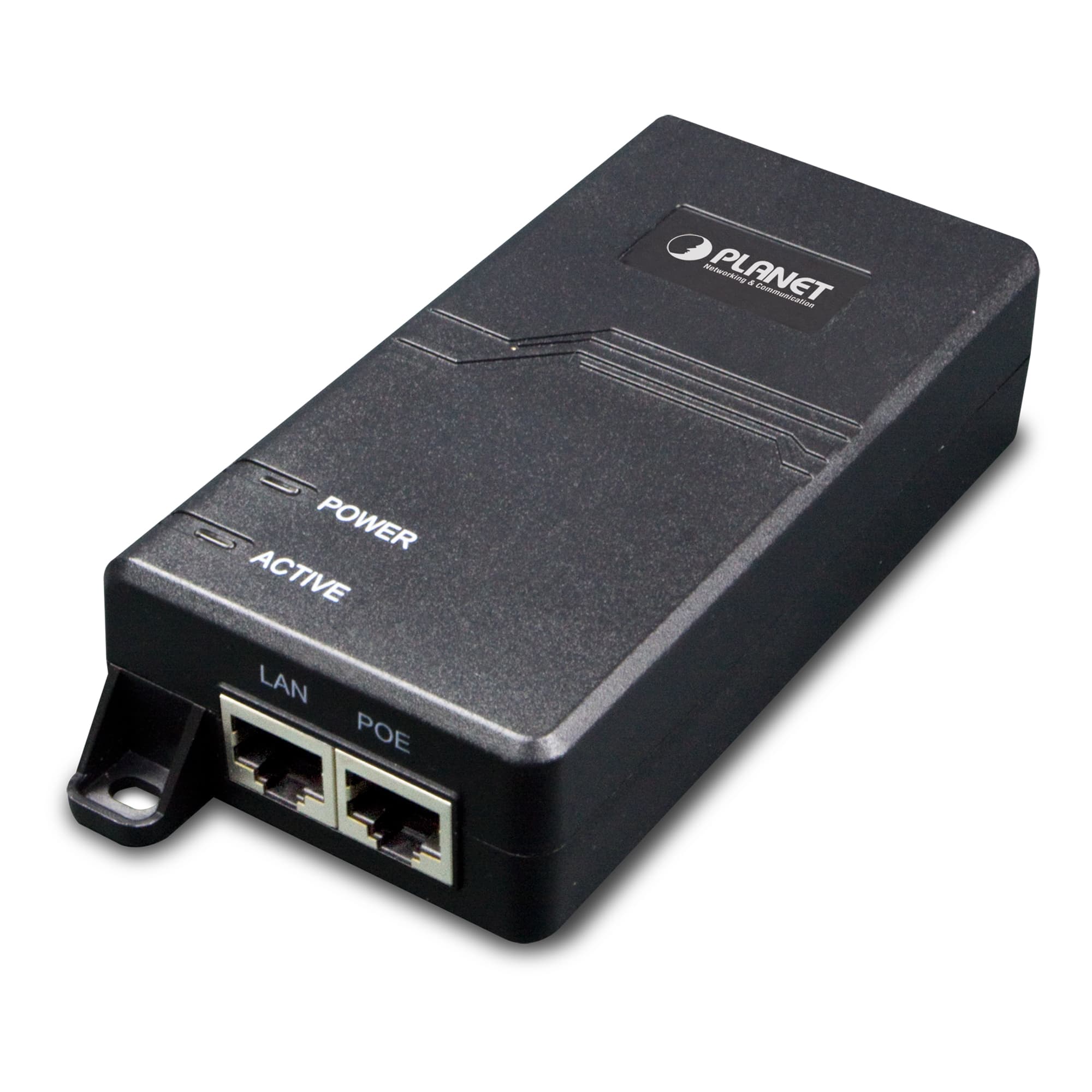

With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE-173 is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE-173 provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE ) on the top side and two RJ-45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE-173 is ready to provide high speed network communication and ultra power PoE injector functions simultaneously with no need of software configuration.
Quick and Easy Cabling Installation for PoE Network Deployment
Backward compatible with both 802.3af and 802.3at PoE standards, the POE-173 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-173 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
