Carries power to PoE devices over the Ethernet cable.

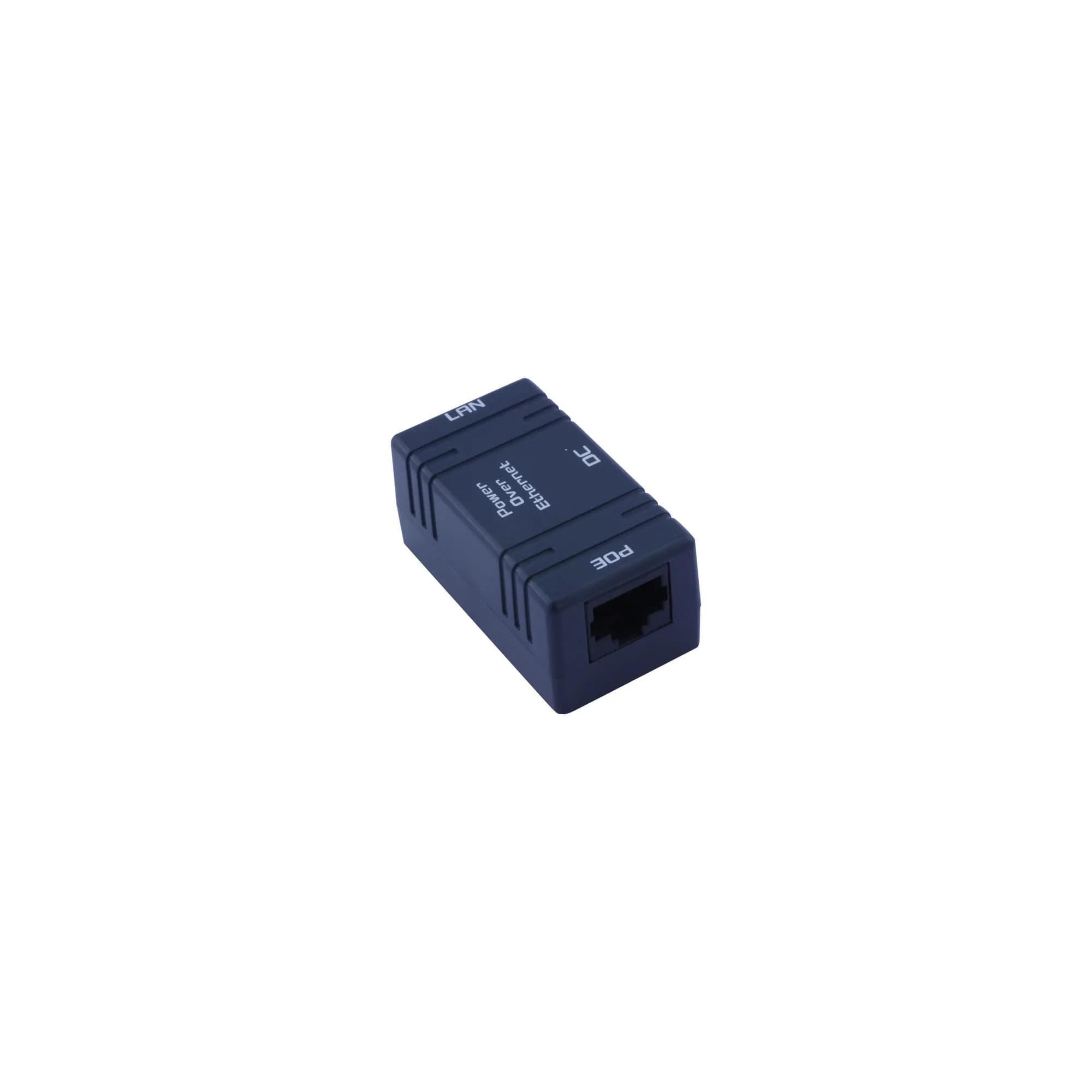

The passive PoE adapter puts power on the pins of the Ethernet cable that carry no data and delivers it to the device at the far end. It fits PoE capable equipment such as IP cameras, access points and VoIP phones at points with no power outlet.
6~57VInput Voltage
800 mAMax. Output Current
10/100 MbpsData Rate
RJ45Connector Type
0°C ~ 50°COperating Temperature
49 × 27 × 23.5 mmDimensions
Key features
Pin separationData runs on pins 1/2 and 3/6, power runs on pins 4/5 and 7/8.
CablingConnects over TIA/EIA 568 Cat5 Ethernet cable and an RJ45 connector.
Input and outputWorks across a 6~57V input range and delivers up to 800 mA of output current.
Operating environmentRuns at 10% ~ 80% relative humidity and withstands -40°C ~ 70°C in storage.
