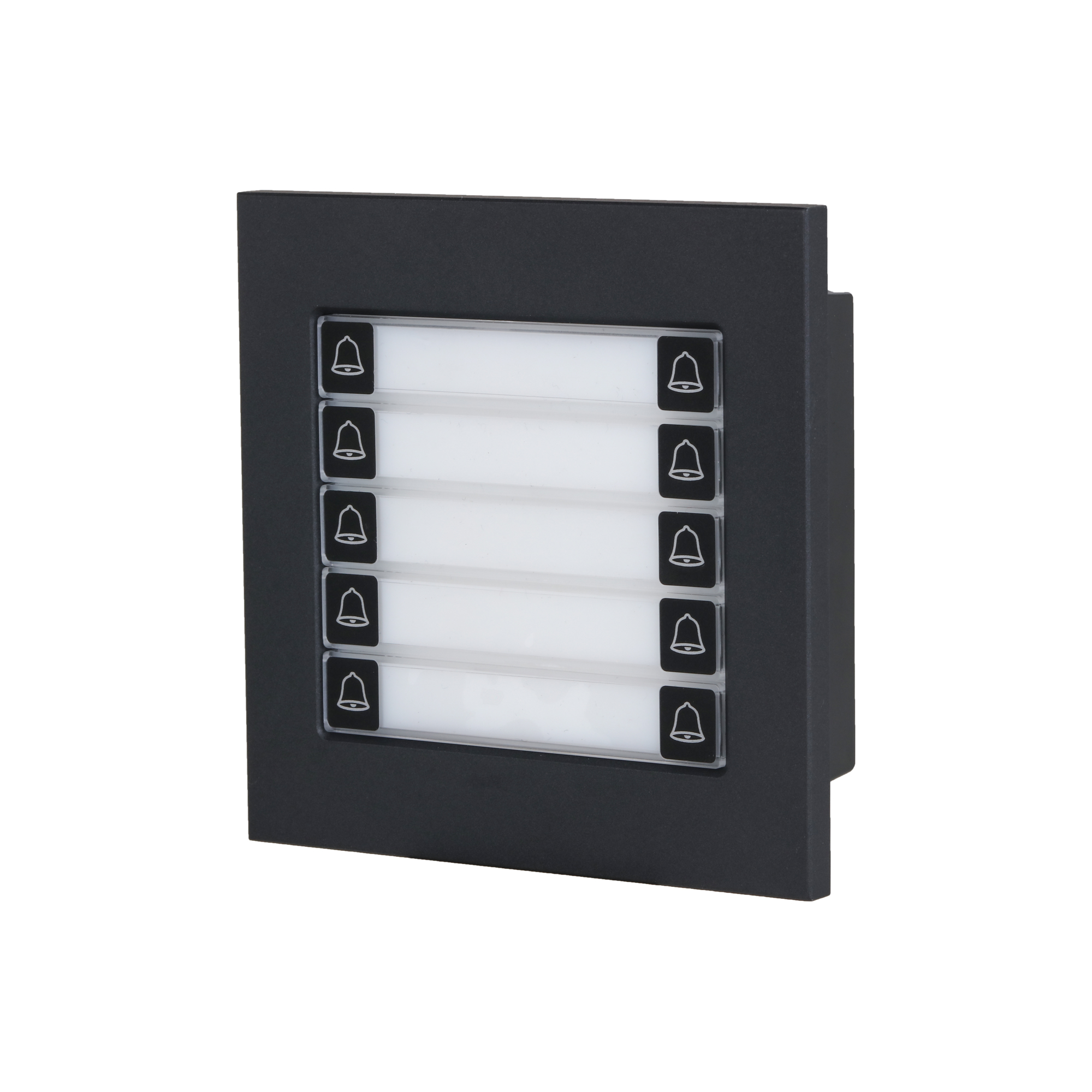

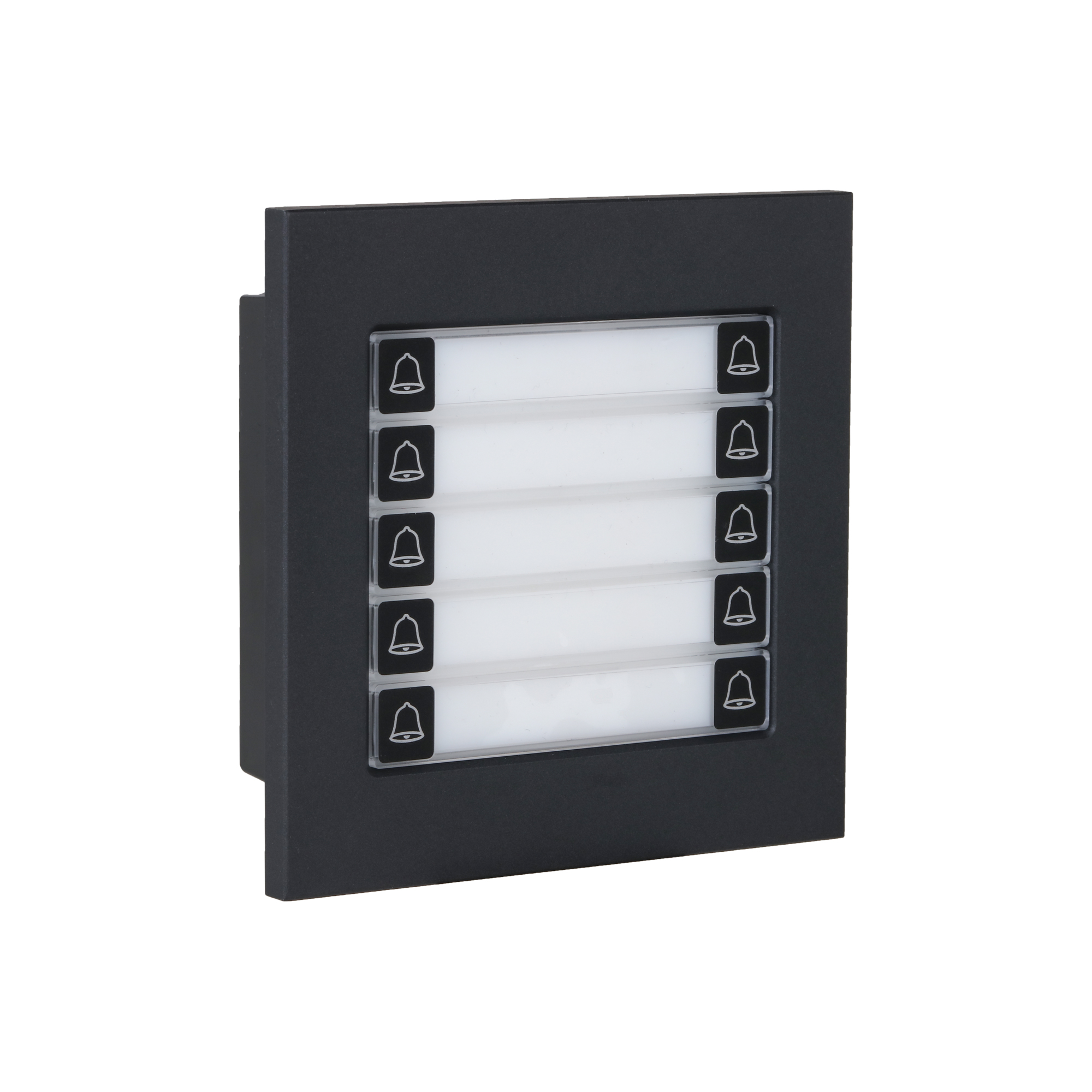

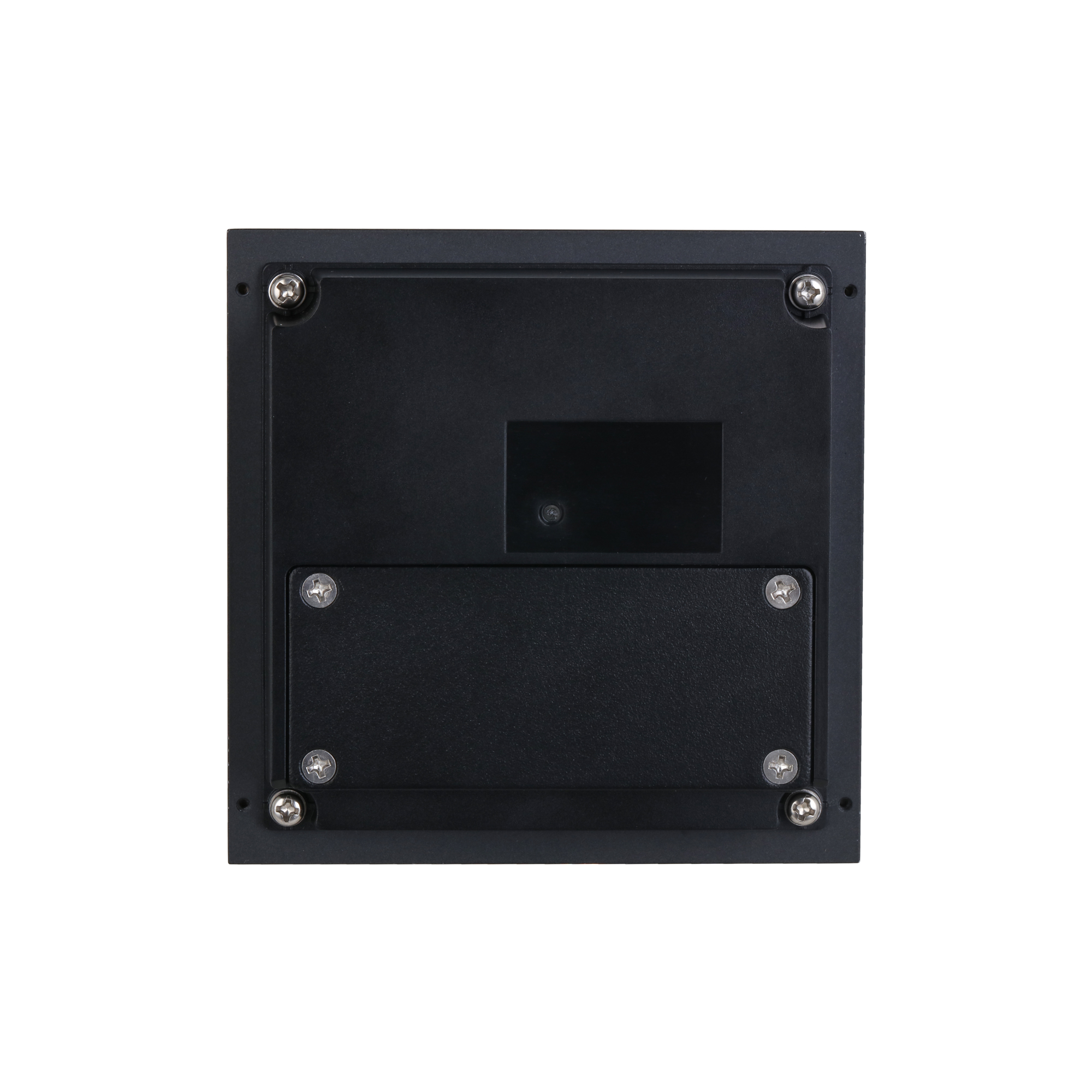

Adds a 10-button call panel to the modular door station
The call button module of the VTO4202FB series modular door stations. Its aluminum alloy body withstands the weather at an outdoor entrance, draws power from the other modules in the chain and passes it on to them.
10mechanical buttons
IP65Protection Grade
IK07impact rating
5 VDCPower Options
-30 °C to +60 °COperating Temperature
Key features
Call buttonsCarries 10 mechanical buttons; each button calls one indoor unit.
Casing MaterialThe aluminum alloy body and black finish keep their form at an outdoor door.
Protection GradeRated IK07 and IP65; installation calls for silicone sealant.
Power supplyRuns on 5 VDC, drawing 0.2 W or less on standby and 0.6 W or less at work.
InstallationAccepts flush and surface mounting; the body measures 100 mm x 100 mm.
