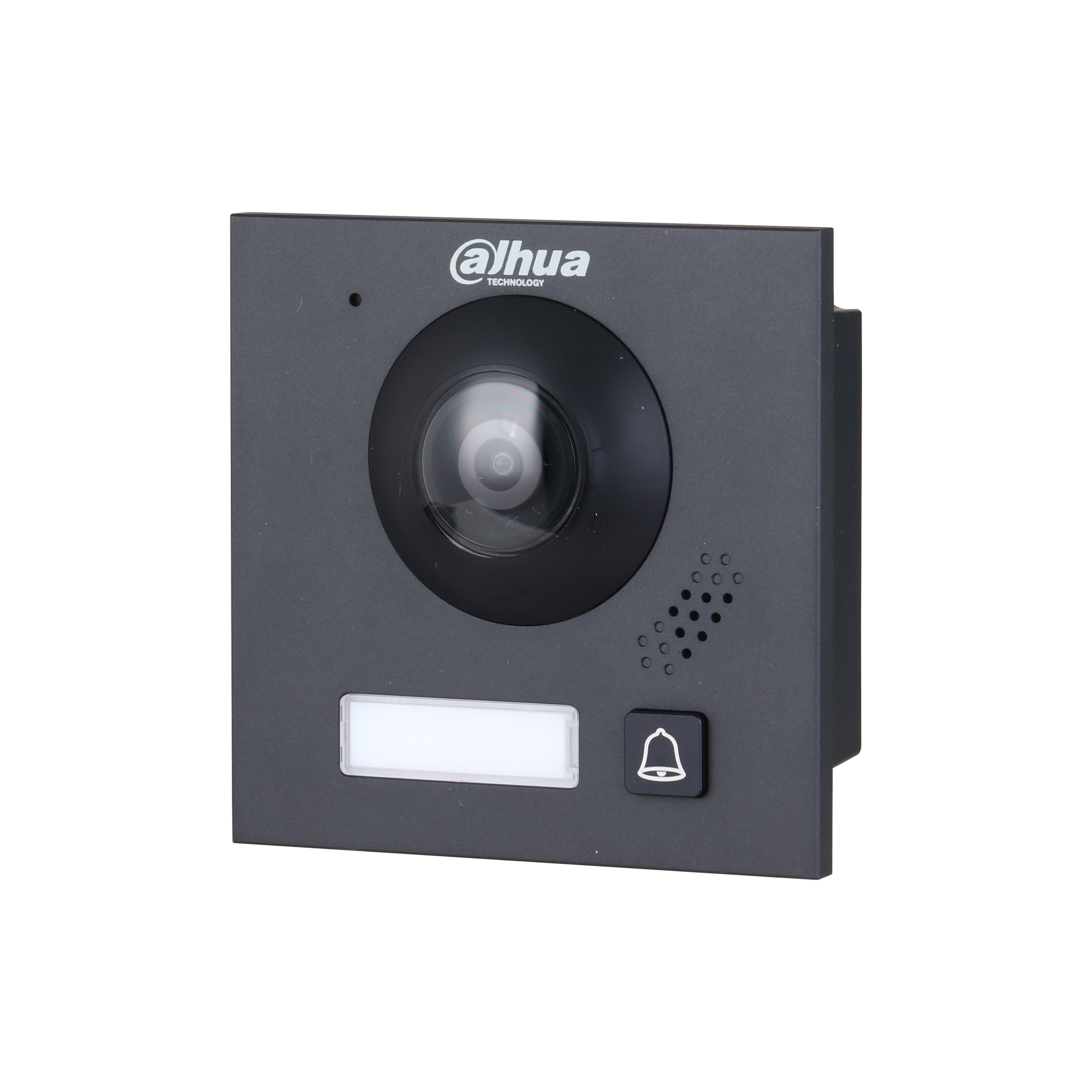

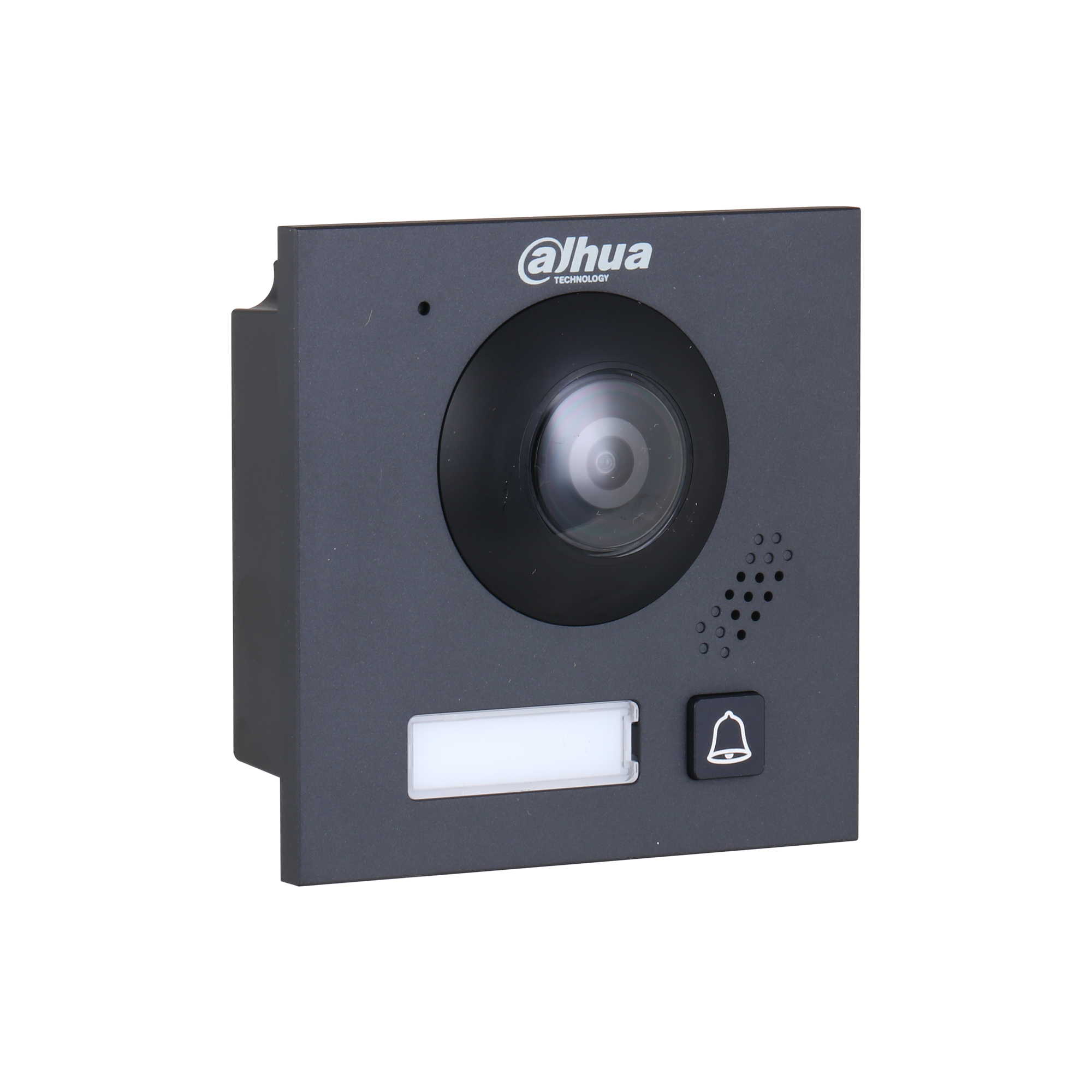

A modular apartment door station that keeps 3000 card records and 3000 fingerprint records in one housing. The video intercom works over SIP, ONVIF and RTSP, and a single PoE cable powers it. It carries lock control and an alarm output for door hardware.
CameraA 1/2.9-inch 2 MP CMOS sensor covers the doorway across a 168.6° horizontal angle, and 120 dB WDR separates a backlit face.
Video and audioH.265 and H.264 compression, 3D NR noise reduction, two-way audio and a built-in speaker come together.
Access capacityIt holds 3000 card records and 3000 fingerprint records, with one port each for lock control and alarm output.

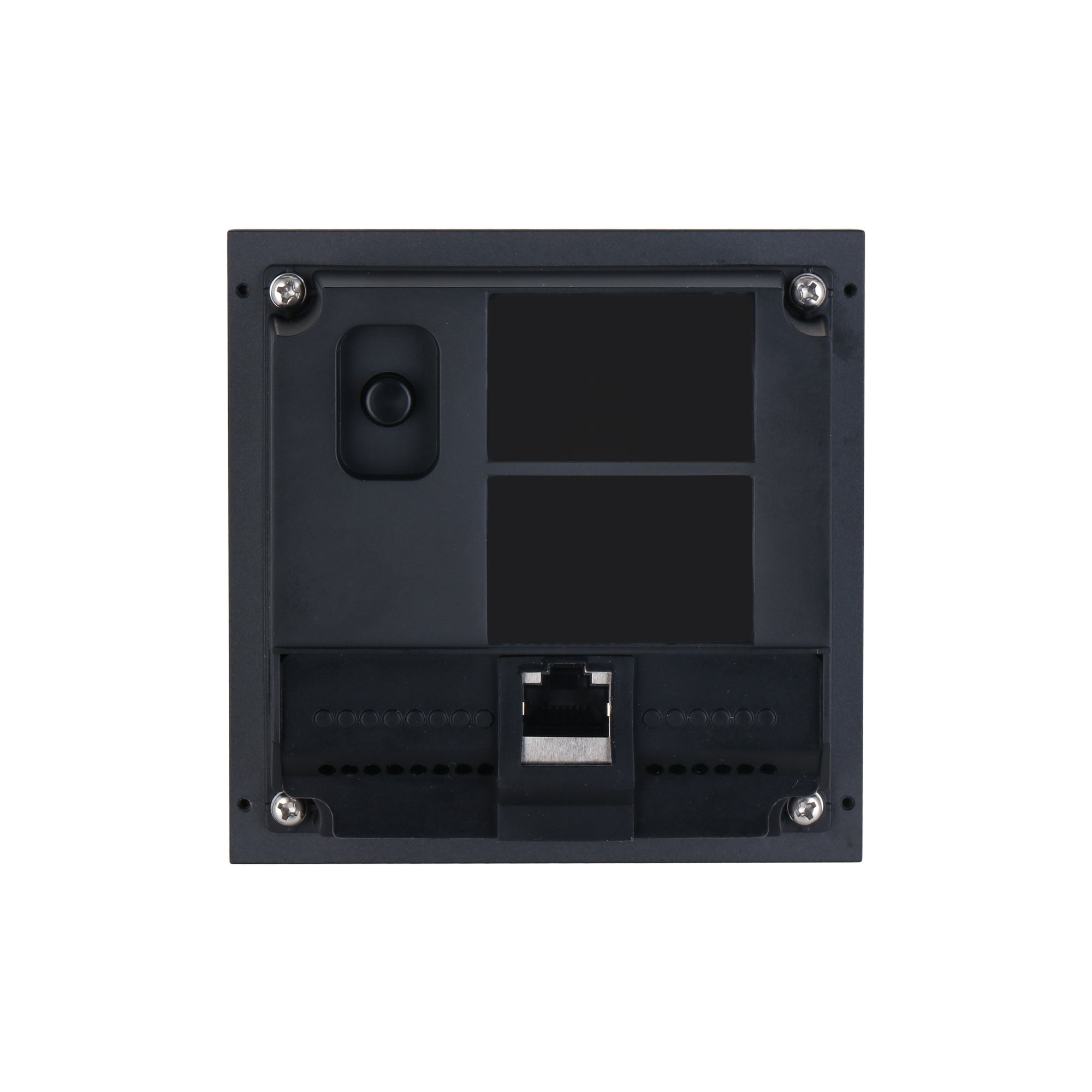

Connectivity1 RJ-45 port joins a 10/100 Mbps network and 1 RS-485 port serves peripherals, with CGI, ONVIF, SIP, P2P and RTSP support.
Storage and powerIt takes a micro SD card of up to 256 GB, runs on 48 VDC or 802.3af/at PoE, and provides a 12 V, 600 mA output.
Size and drawThe 100 mm × 100 mm × 49.4 mm housing stays under 4 W in standby and 5 W in operation.
Silicone sealant goes on the housing to reach the IK07 and IP65 ratings. If a load draws power from the 12 V output, the device must connect to an 802.3at compliant PSE switch.
