13 Multipin Male Cable Type Connector (MP-4101-13P) | Nokta Elektronik
›
Audio and Video Products
›
Audio
›
Multipin Connectors
›

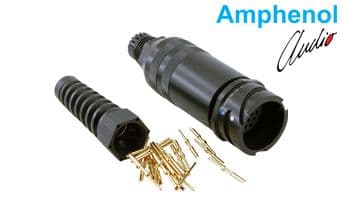

13 Multipin Male Cable Type Connector
Amphenol
13 Multipin Male Cable Type Connector
Stock Code: MP-4101-13P
Request Quote
Features
Technical
Downloads
Positions:
13
Current Carrying Capacity:
13A
Housing Material:
Aluminum Alloy / Black
Finish:
Black
IP Rating:
IP67 (when mated)
Termination:
Solder / Crimp “Combo”
Max Wire Gauge:
16AWG - 20AWG
Operating Temperature:
-55°C to +125°C (-67°F to +257°F)
Mating Cycles:
2000
Environmental:
Complies with EU RoHS 2 Directive 2011/65/EU
Application(s):
Audio & Lighting
