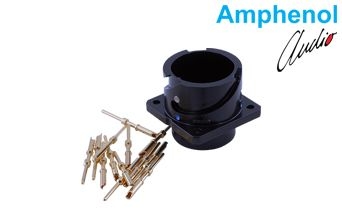

A 13 contact male chassis connector that seats on cabinet and equipment panels. The die cast aluminum alloy shell carries a black finish, and gold plated crimp pin contacts ship with the product.
Contact design13 gold plated crimp pin contacts ship with the product.
HousingThe die cast aluminum alloy shell carries a black finish, and the wear pins are stainless steel.
Panel mountingThe chassis style shell passes through the equipment panel and meets the plug on the cable side.
TerminationIt accepts solder and crimp termination together and takes 16-20 AWG cable.
Operating conditionsIt works from -55°C to +125°C and reaches IP67 protection when mated.
ComplianceThe connector complies with EU RoHS 2 Directive 2011/65/EU.
