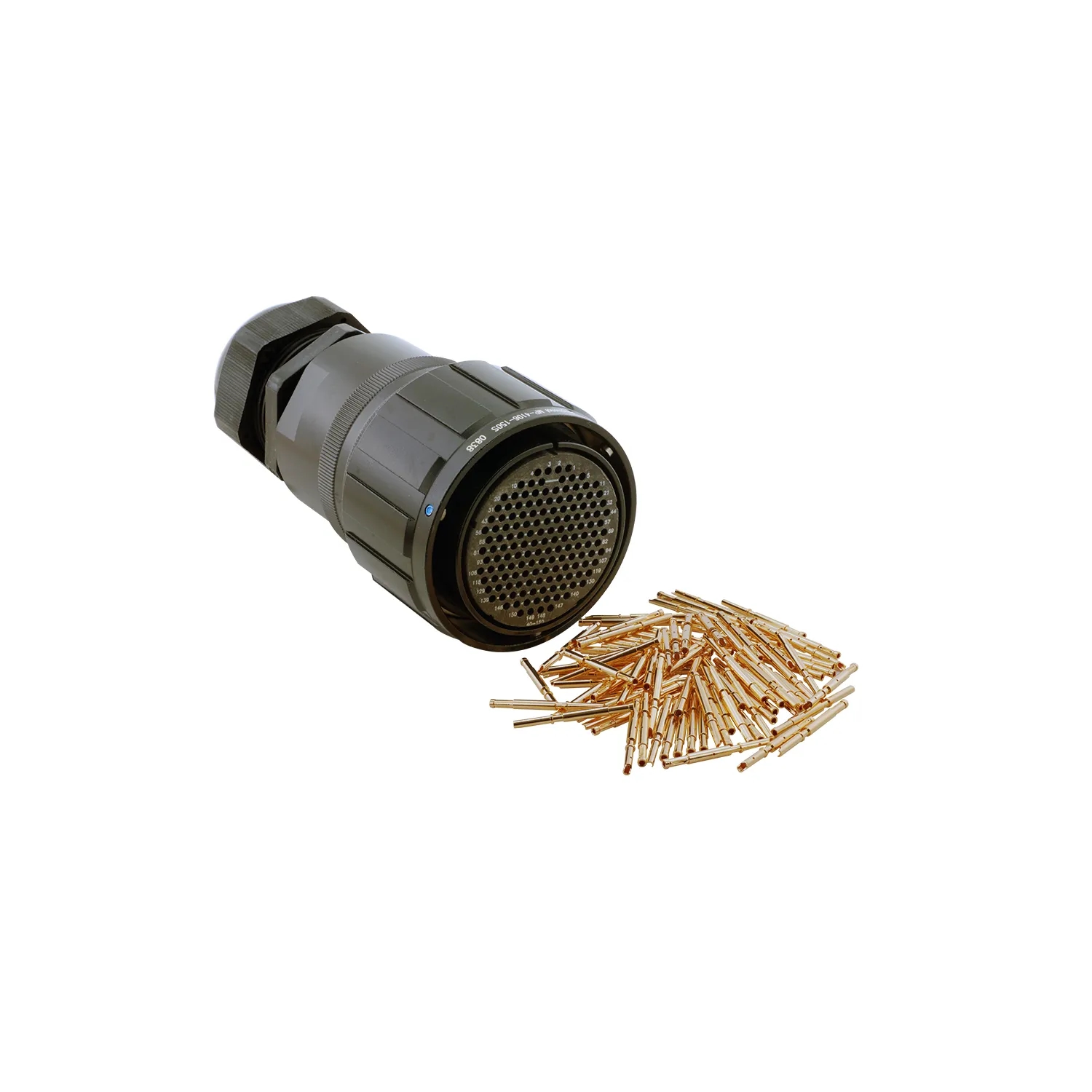

Stock Code: MP-4106-150S
| General Characteristics | |
|---|---|
| Number of Contacts | 13 / 19 / 25 / 37 / 54 / 85 / 150 |
| Number of Channels | 4 / 6 / 8 / 12 / 16 / 28 / 48 |
| Termination | Solder / Crimp "Combo" (13–85); Crimp (150) |
| Wire Gauge – Stranded Wire | 16AWG – 20AWG (13–85); 18AWG (150) |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Characteristics | |
| Operating Voltage at Sea level – DC Operating Voltage at Sea level – AC |
250V* 200V* |
| Test Voltage AC RMS | 1000V |
| Current Carrying Capacity | 13A (13–85); 7.5A (150) |
| Typical Contact Resistance | 3.46 mΩ (13–85); 11.25 mΩ (150) |
| Insulation Resistance | 5000 MΩ |
| Climatic Characteristics | |
| Protection Class | IP67 (when mated) |
| Operating Temperature | -55°C to +125°C (-67°F to +257°F) |
| Mechanical Characteristics | |
| Cable Retention | PG Gland |
| Mechanical Operations | 2000 mating cycles |
| Materials | |
| Connector / Shell Finish | Aluminium Alloy / Black |
| Insert | Synthetic Insert to MIL-R-3065 |
| Male pin contact / Plating | Brass / Gold plated |
| Female socket contact / Plating | Brass / Gold plated |
| Clamping Characteristics | |
| PG Gland | 11 / 13.5 / 16 / 21 / 29 / 36 |
| Cable Clamping range mm (inches) | 4-10 (0.15” – 0.39”); 5-12 (0.19” – 0.47”); 9-14 (0.35” – 0.55”); 13-18 (0.51” – 0.70”); 14-25 (0.55” – 0.98”); 19-32 (0.74” – 1.25”) |
