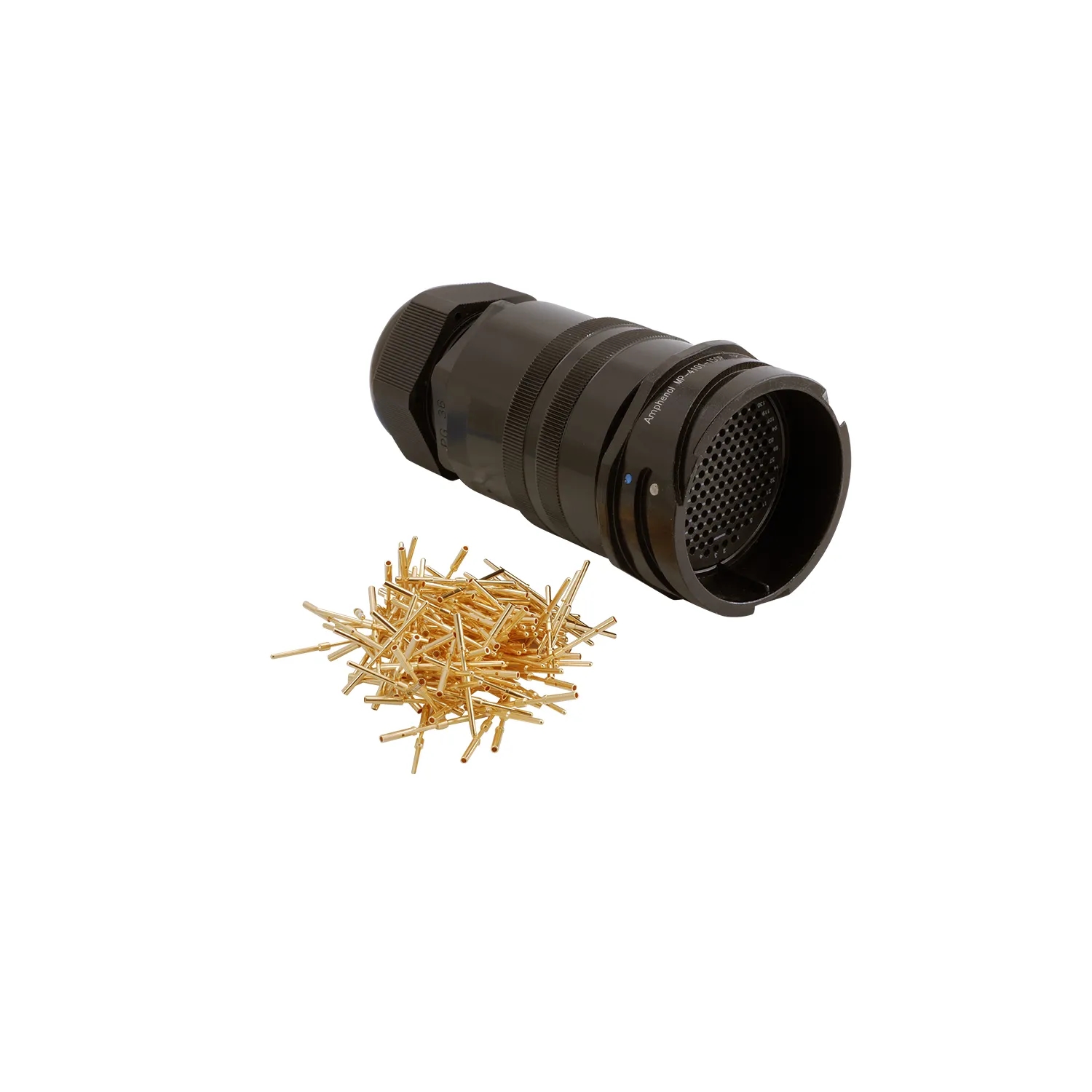

Stock Code: MP-4101-150P
| General Characteristics | |
|---|---|
| Number of Contacts | 13 / 19 / 25 / 37 / 54 / 85 / 150 |
| Number of Channels | 4 / 6 / 8 / 12 / 16 / 28 / 48 |
| Termination | Solder / Crimp "Combo" (13–85) — Crimp (150) |
| Wire Gauge - Stranded Wire | 16AWG - 20AWG (13–85) — 18AWG (150) |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Electrical Characteristics | |
| Operating Voltage at Sea Level - DC Operating Voltage at Sea Level - AC |
250V* 200V* |
| Test Voltage AC RMS | 1000V |
| Current Carrying Capacity | 13A (13–85) — 7.5A (150) |
| Typical Contact Resistance | 3.46mΩ (13–85) — 11.25mΩ (150) |
| Insulation Resistance | 5000MΩ |
| Climatic Characteristics | |
| Protection Class | IP67 (when mated) |
| Operating Temperature | -55°C to +125°C (-67°F to +257°F) |
| Mechanical Characteristics | |
| Cable Retention | PG Gland |
| Mechanical Operations | 2000 mating cycles |
| Materials | |
| Connector / Shell Finish | Aluminium Alloy / Black |
| Insert | Synthetic Insert to MIL-R-3065 |
| Male Pin Contact / Plating | Brass / Gold Plated |
| Female Socket Contact / Plating | Brass / Gold Plated |
| Clamping Characteristics | |
| PG Gland | 11 / 13.5 / 16 / 21 / 29 / 36 |
| Cable Clamping Range mm (inches) | 4-10 (0.15"- 0.39") / 5-12 (0.19"- 0.47") / 9-14 (0.35"- 0.55") / 13-18 (0.51"- 0.70") / 14-25 (0.55"- 0.98") / 19-32 (0.74"- 1.25") |
