Turns a cable end into a 19 line multi-core connection.

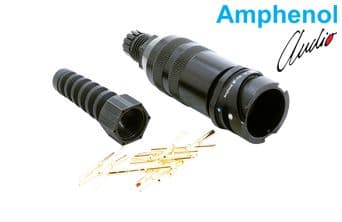

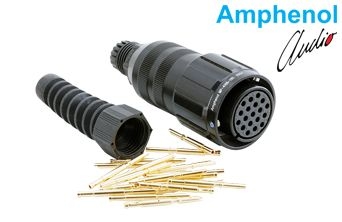

A straight cable plug with socket contacts. The PG threaded gland grips the cable, the plug mates with the matching chassis connector, and the mated pair reaches IP67 protection. Shell and adaptor are aluminum alloy, while the PG cable gland is black polyamide.
19Number of contacts
13 ACurrent carrying capacity
IP67Protection Grade
2000Mating cycles
PG13.5Cable gland size
Key features
Straight cable plugIt seats on the cable end and mates with the matching chassis connector.
Gold plated socket contacts19 socket contacts cover solder and crimp termination alike.
PG13.5 cable glandThe PG threaded gland grips the cable and keeps pulling force away from the contacts.
Wire gaugeIt terminates conductors in the 16 AWG – 20 AWG range.
DimensionsMaximum body diameter is 43.1 mm and the reference length is 171 mm.
