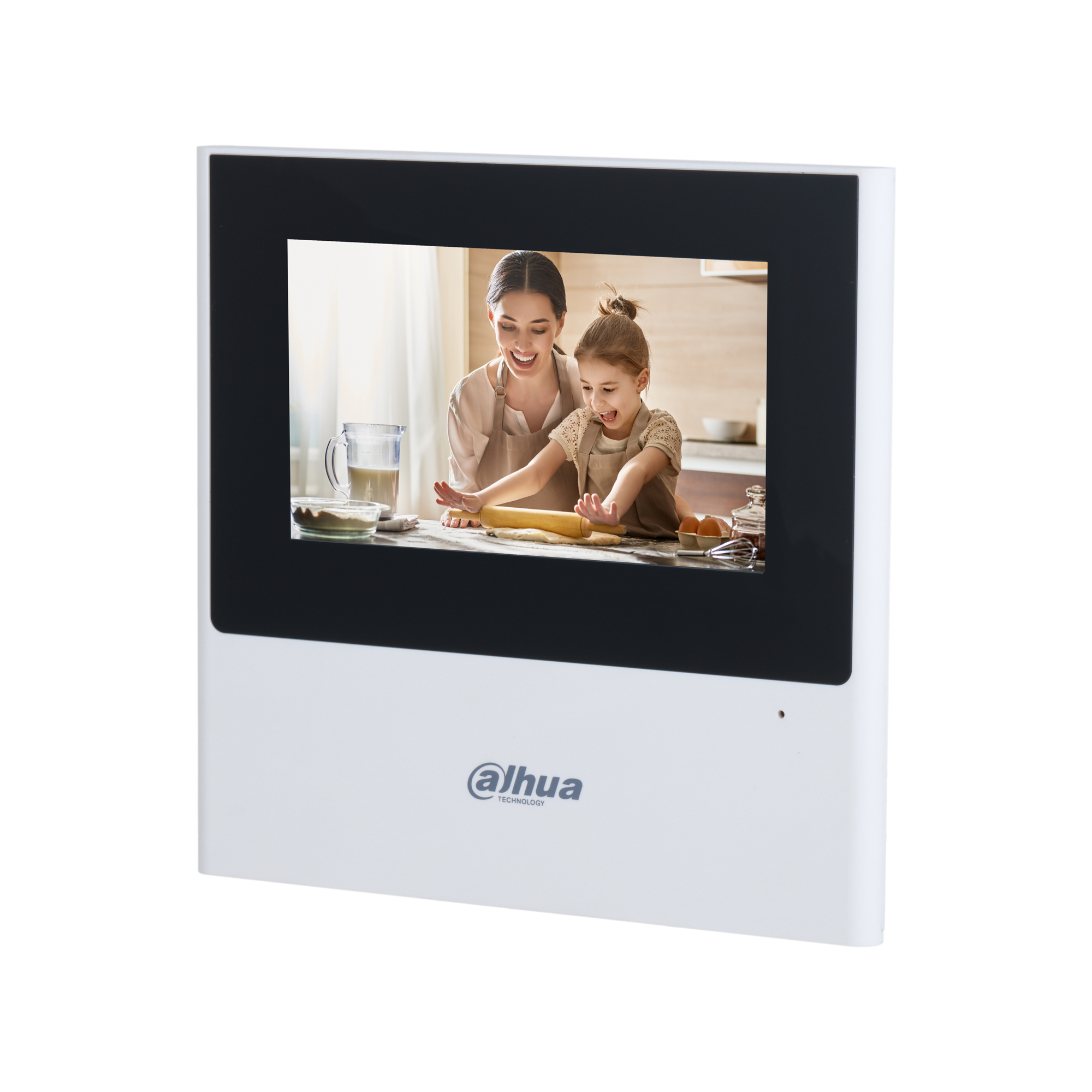

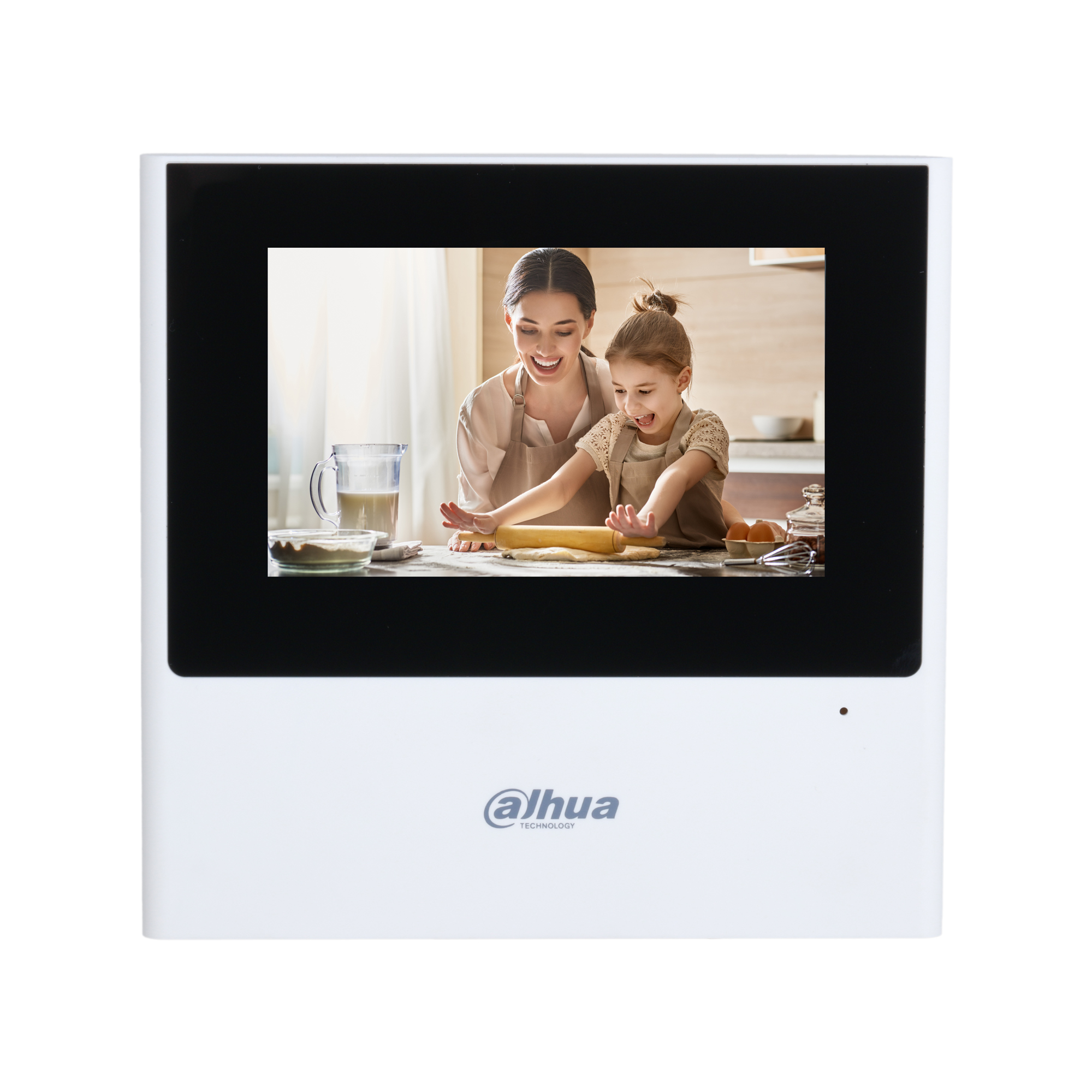

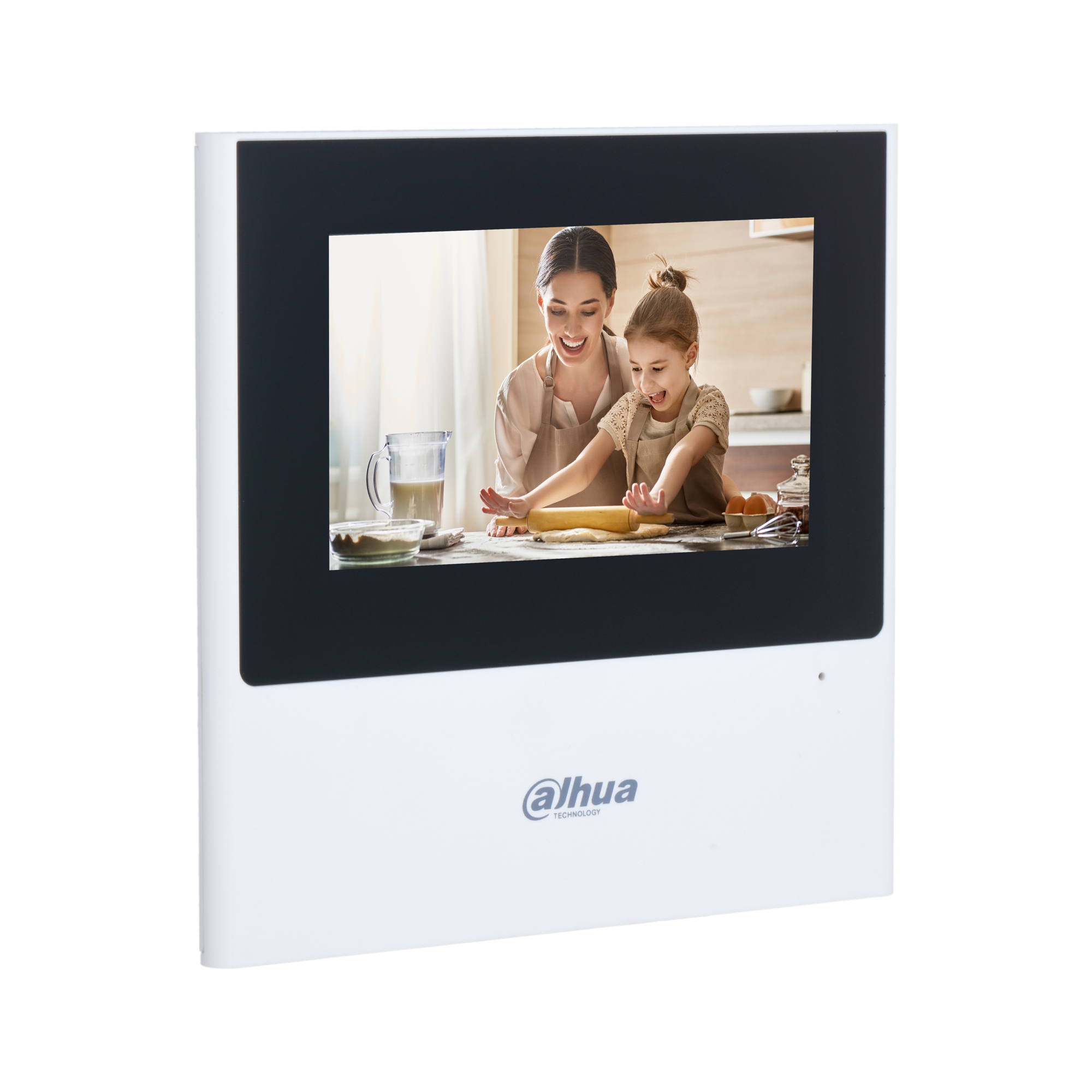

An indoor monitor that opens the door and links the flat to the entrance station
A 4.3-inch capacitive touchscreen shows the visitor and opens the door with a single tap. The unit runs over a 2-wire digital line or RJ-45 Ethernet, and the same cable carries both audio and video. Do Not Disturb mode silences the chime during selected hours.
4.3"Display
480 × 272Resolution
4 / 1Alarm I/O
48 V DCPower Supply
2-wireCommunication
Key features
TouchscreenA 4.3-inch TFT capacitive panel displays at 480 × 272 resolution.
Door releaseIt brings the call from the entrance station to the screen and releases the lock from the monitor.
IPC monitoringIt shows live video from cameras on the network on the same screen.
Alarm connectionFour inputs and one output connect peripherals such as a detector or a siren, and it also handles an SOS alarm.
Extensions9 extension units run in a villa setup and 4 in an apartment setup.
PowerIt draws from a 48 V DC line through the 2-wire switch and stays under 4 W on standby.
The 2-wire switch carries power over a maximum distance of 50 m.
