Shows the door call on a large touchscreen and gathers the home alarms.

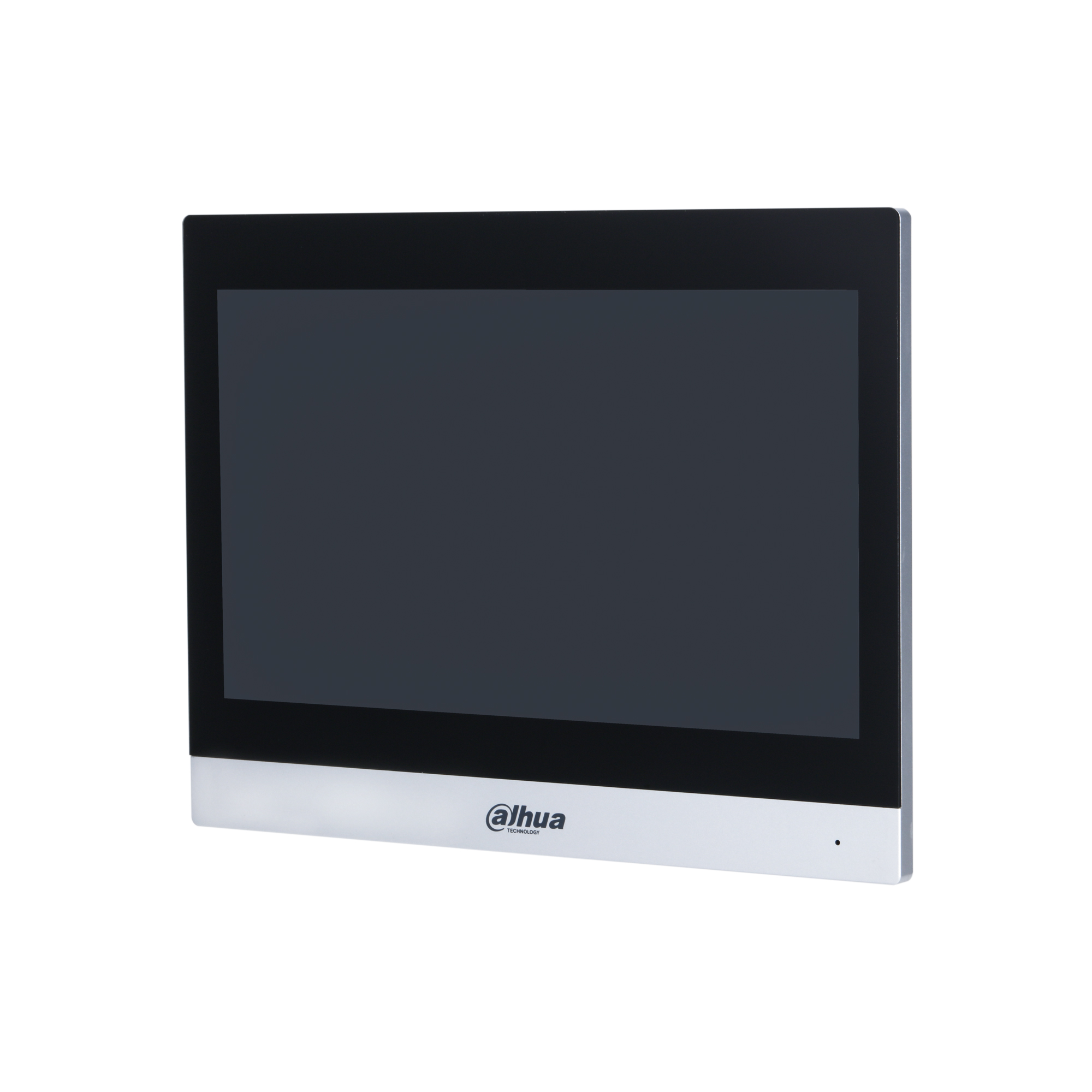

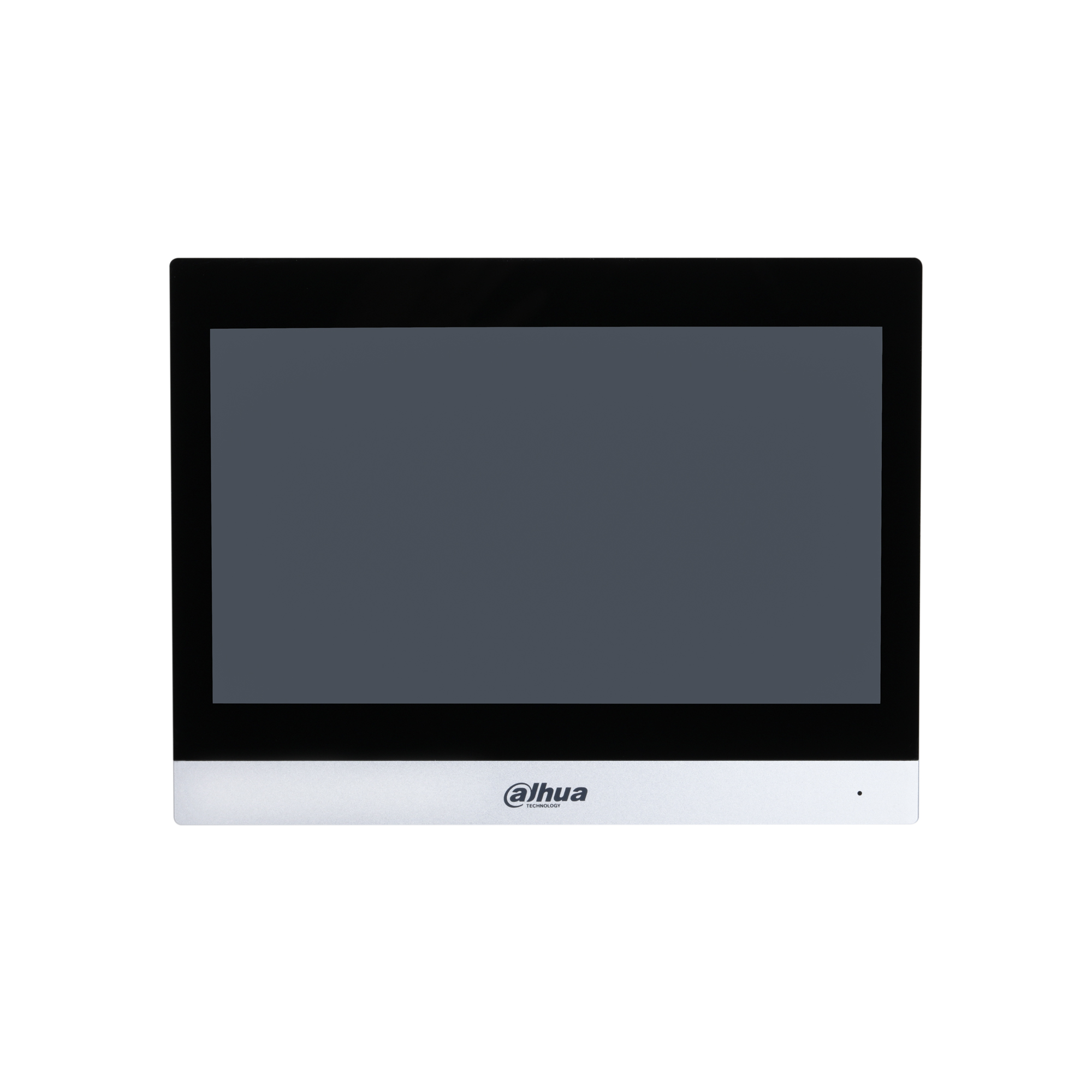

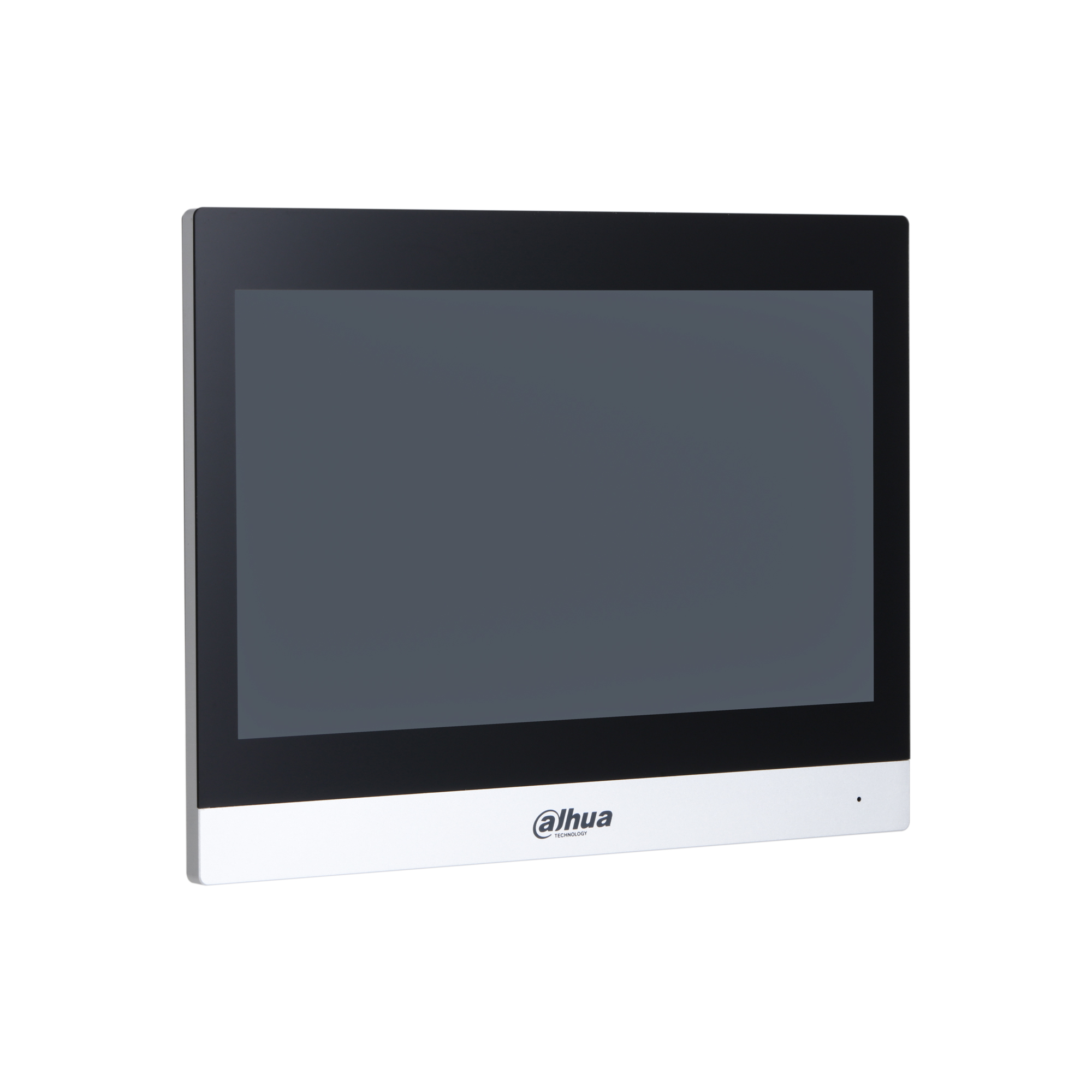

An indoor monitor with a 10" capacitive touchscreen for 2-wire IP intercom systems. It runs embedded Linux, opens the camera image when a call arrives from the door station, and supports both wired network and Wi-Fi.

10"Display

1024 × 600Resolution

6-channelAlarm Input

64 GBMemory Card Support

2-wire / RJ-45Link Type

48 V DCPower Options

Key features

10inch

Capacitive touchscreen

It shows the menu and the door image at 1024 × 600.

6channel

Wired alarm zones

It gathers the wired alarm zones in one place, and 1 output channel signals an external device.

2.4GHz

Wi-Fi connection

It uses the IEEE802.11b/g/n standard, and WPA/WPA2 encryption protects the traffic.

64GB

Micro SD card slot

A Micro SD card adds local storage on the device.

48V DC

Power over the 2-wire line

It runs on a 1.25 A supply and draws under 3 W in standby.

DAILY USE

SOS callIn an emergency it sends an SOS message to the management center with one tap.

Do Not DisturbThe user sets Do Not Disturb to fit their own routine.

Clear conversationA high-performance speaker and microphone carry the conversation with the door station, and echo suppression cleans up the sound.

Display & Audio Specifications

Display Type / Size

10" TFT Capacitive Touchscreen

Resolution

1024 × 600

Audio Mode

2-way Audio with Echo Suppression

Audio Compression

G.711a; G.711u; PCM (16 kHz, 16 bit)

Connectivity & Smart Functions

Communication Interface

Digital 2-wire and RJ-45 (10/100 Mbps) — one selectable

Wireless Standards

IEEE802.11b/g/n (2.4 GHz) / WPA/WPA2 Security

Alarm I/O

6-ch Input / 1-ch Output / SOS Support

Storage

Micro SD Card Slot (Up to 64 GB)

General & Physical Parameters

Casing Material / Color

Metal / Silver

Dimensions (W × D × H)

250 mm × 190 mm × 23.5 mm (9.84" × 7.48" × 0.93")

Net Weight

0.67 kg

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Power Supply / Consumption

48 VDC, 1.25 A / Standby ≤ 3 W, Working ≤ 7 W
