Shows the door call on the touchscreen and gathers the home alarms.

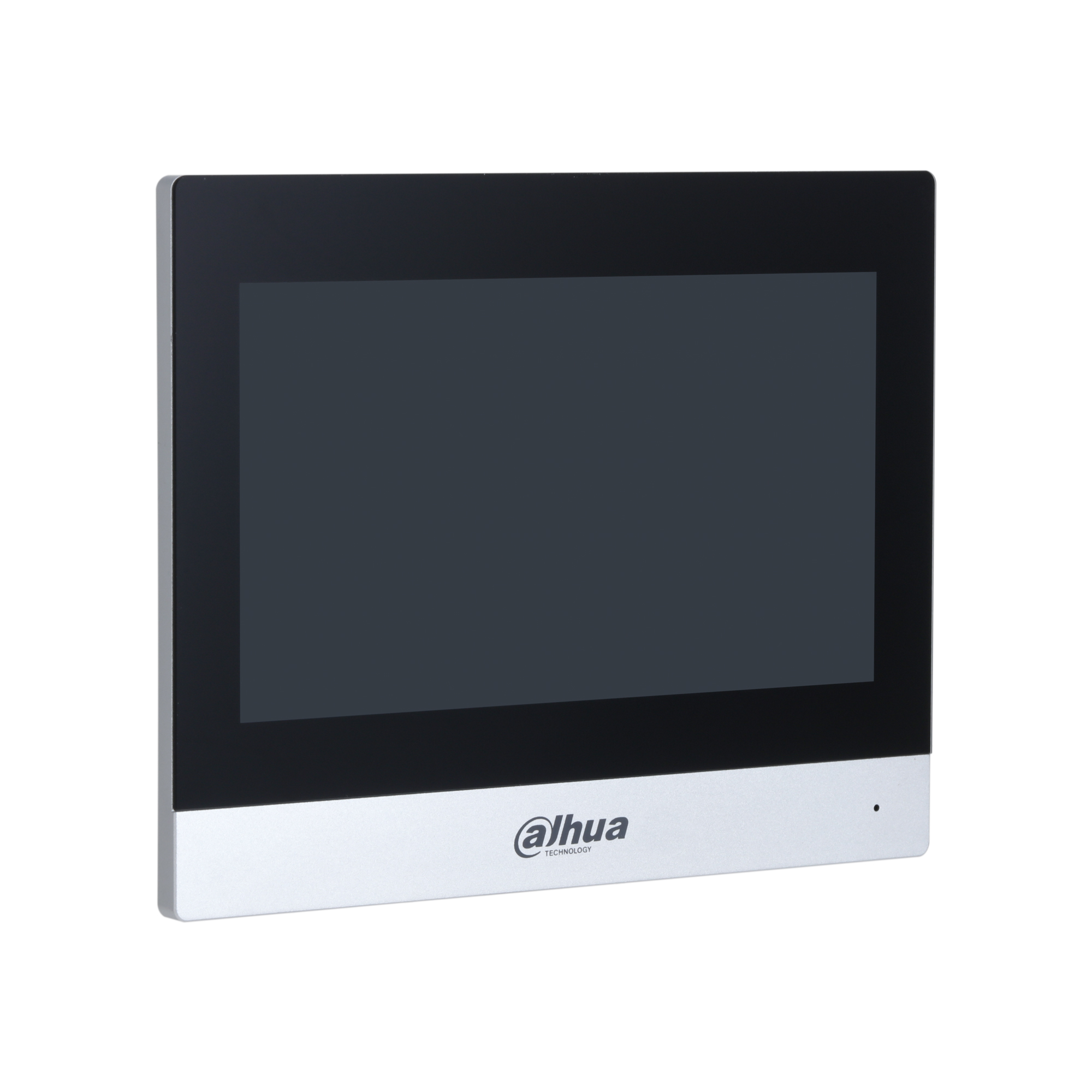

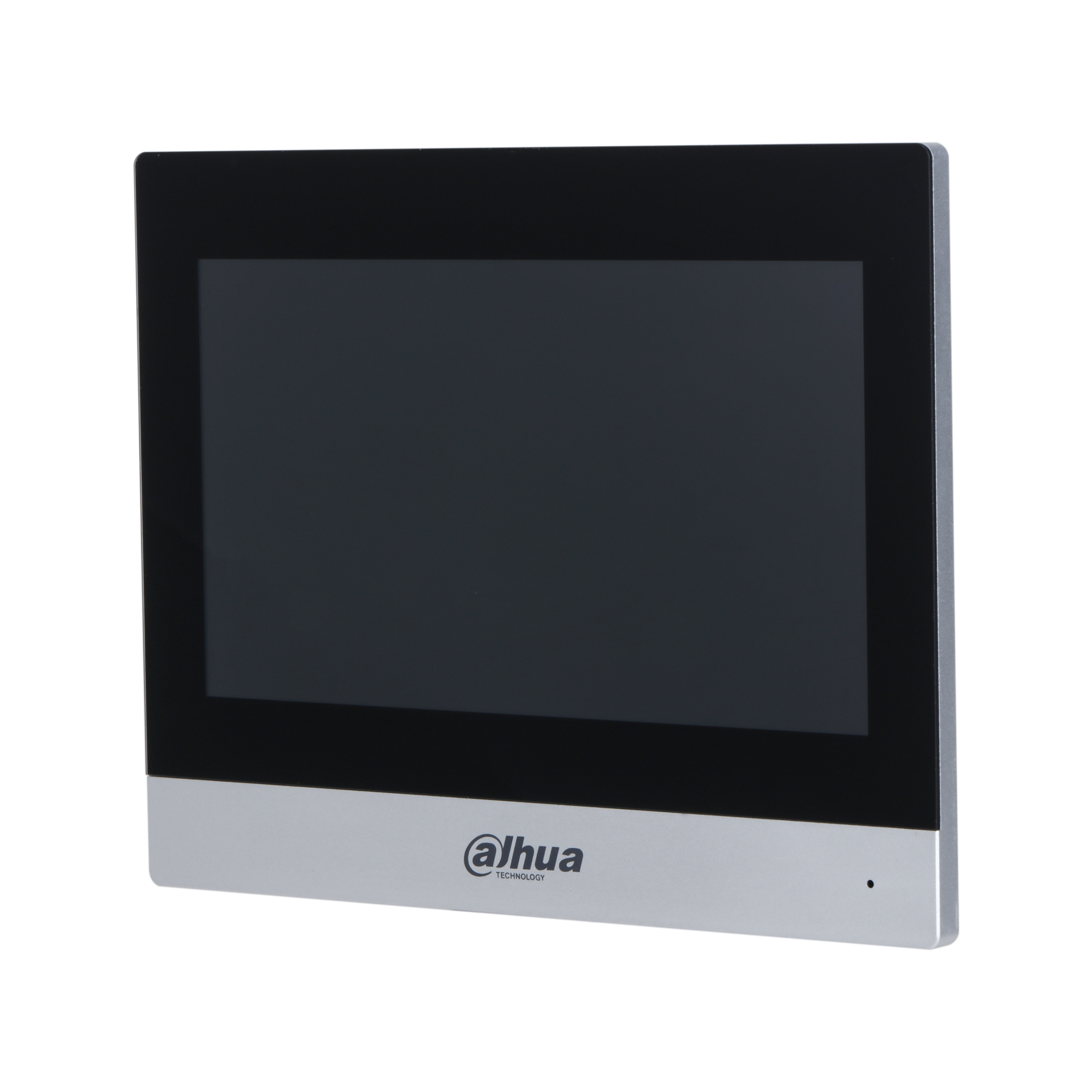

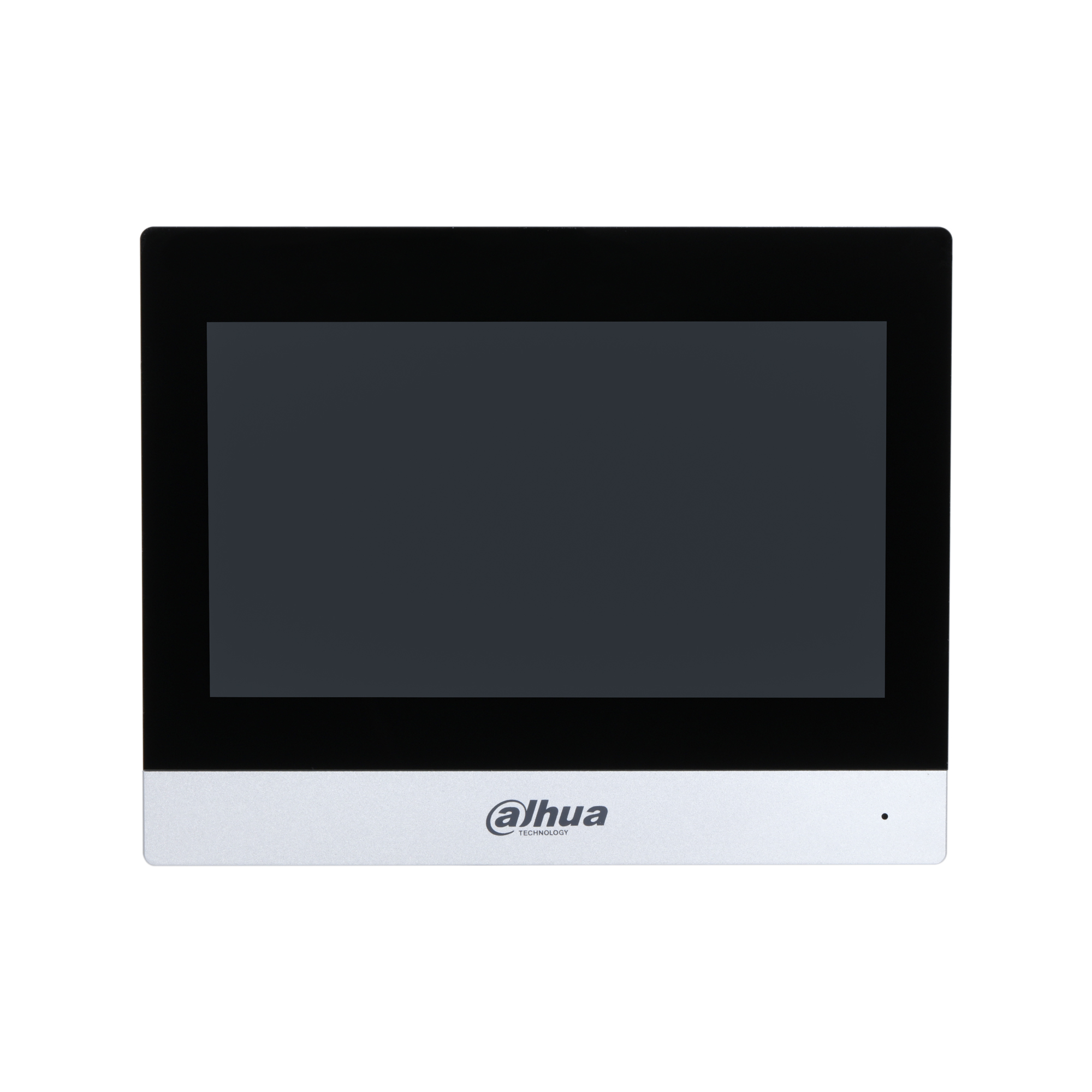

An indoor monitor with a 7" capacitive touchscreen for 2-wire IP intercom systems. It runs embedded Linux, opens the door camera when a call arrives, and supports both wired network and Wi-Fi.

7"Display

1024 × 600Resolution

6-channelAlarm Input

64 GBMemory Card Support

2-wire / RJ-45Link Type

48 V DCPower Options

Key features

7inch

Capacitive touchscreen

It shows the menu and the door image at 1024 × 600.

6channel

Wired alarm zones

It gathers the wired alarm zones in one place, and 1 output channel signals an external device.

2.4GHz

Wi-Fi connection

It uses the IEEE802.11b/g/n standard, and WPA/WPA2 encryption protects the traffic.

64GB

Micro SD card slot

A Micro SD card adds local storage on the device.

48V DC

Power over the 2-wire line

It runs on a 1.25 A supply and stays under 7 W in use.

DAILY USE

SOS callIn an emergency it sends an SOS message to the management center with one tap.

Do Not DisturbThe user sets Do Not Disturb to fit their own routine.

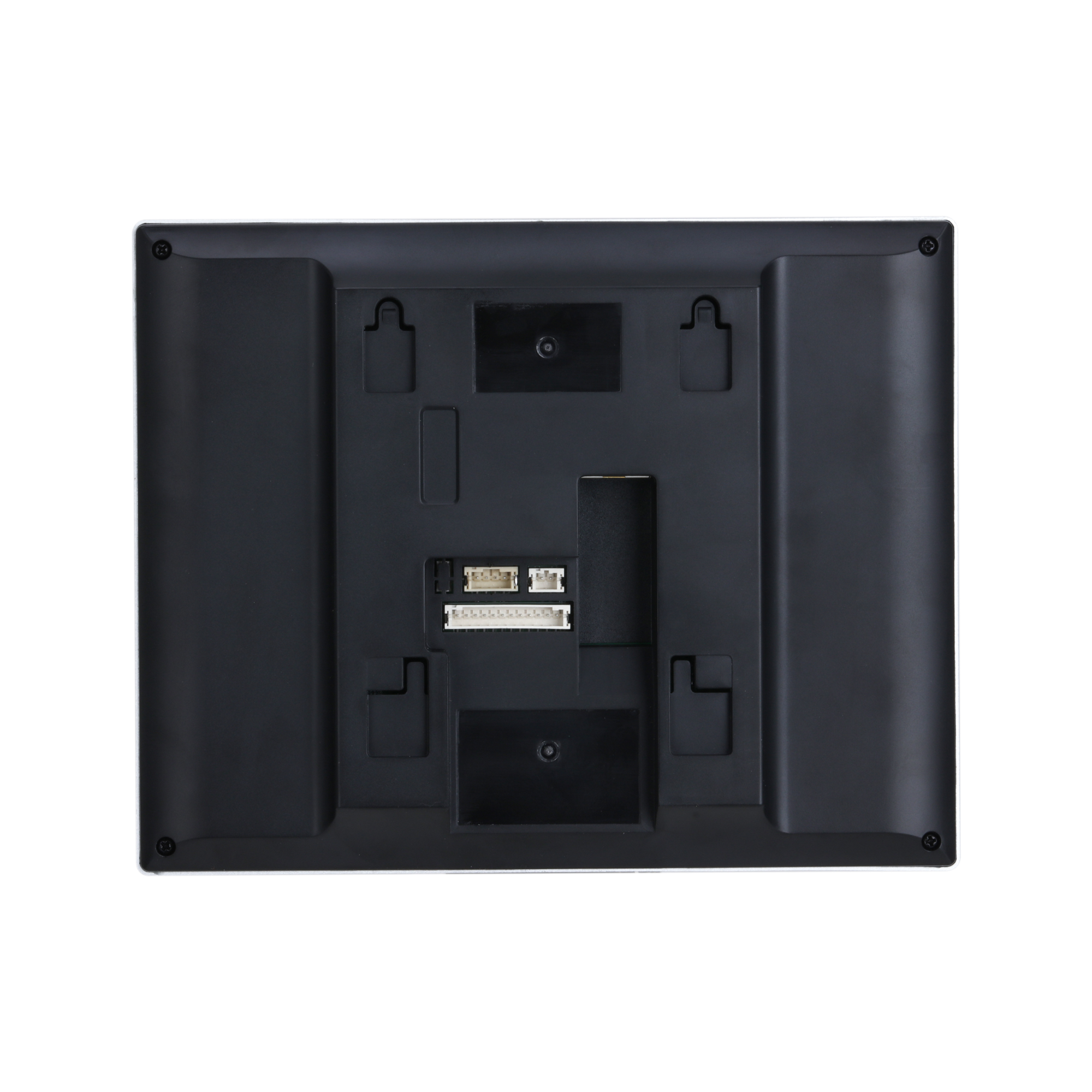

Design that fits the wallThe metal casing comes in black or white, and the slim body takes little space on the wall.

Display & Audio Specifications

Display Type / Size

7" TFT Capacitive Touchscreen

Resolution

1024 × 600

Audio Mode

2-way Audio with Echo Suppression

Audio Compression

G.711a; G.711u; PCM

Connectivity & Smart Features

Communication Interface

Digital 2-wire and RJ-45 (10/100 Mbps)

Wireless Standards

IEEE802.11b/g/n (2.4 GHz) / WPA/WPA2 Security

Alarm I/O

6-ch Input / 1-ch Output

Storage / Function

Micro SD Card (Up to 64 GB) / SOS Messaging, Do Not Disturb (DND) Mode

Physical & General Parameters

Casing Material / Color

Metal / Black or White

Dimensions (W × D × H)

147 mm × 185 mm × 23.5 mm

Net Weight

0.39 kg

Operating Temperature

–10 °C to +55 °C

Power Supply / Consumption

48 VDC, 1.25 A / Working ≤ 7 W
