Watches the door station and IP cameras from one screen.

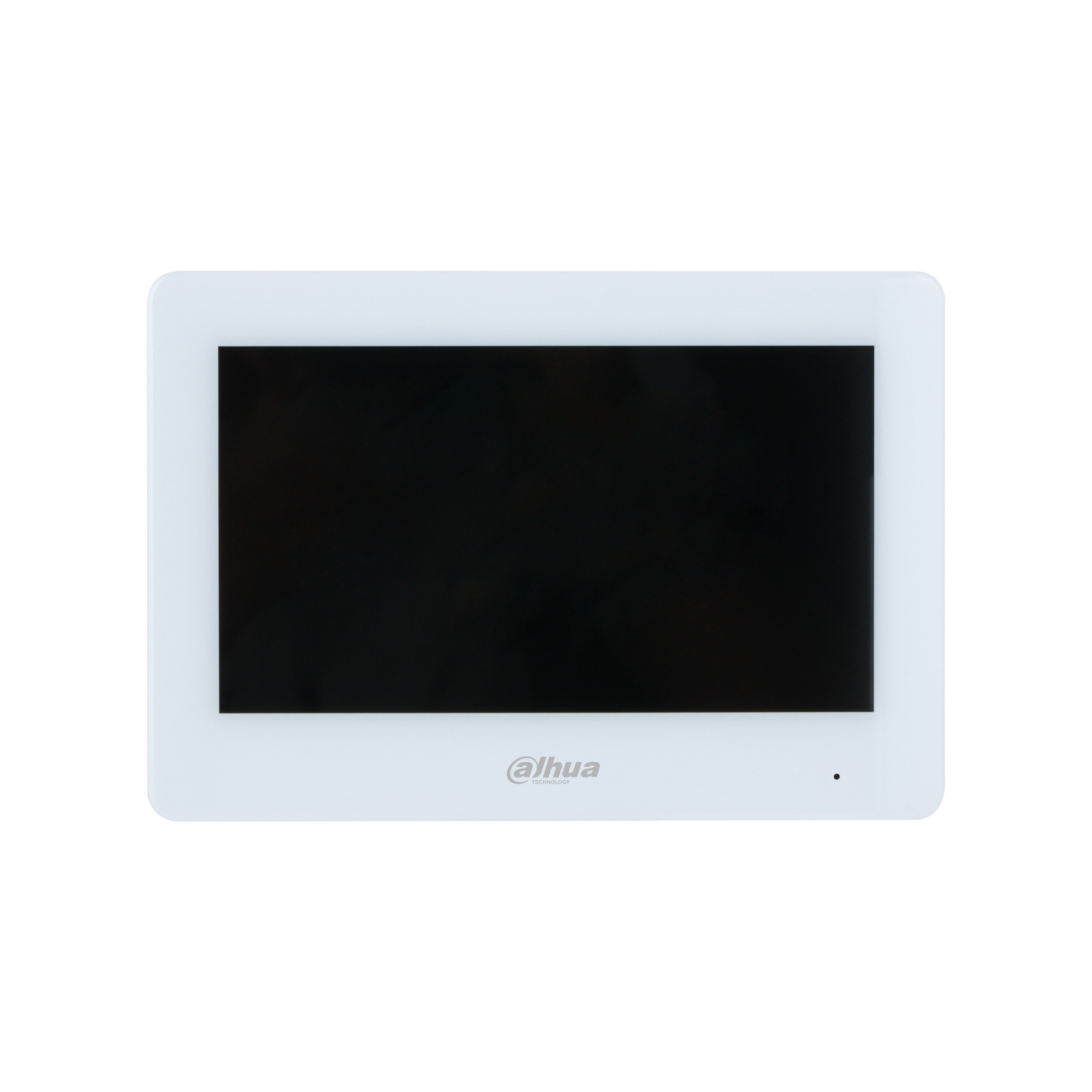

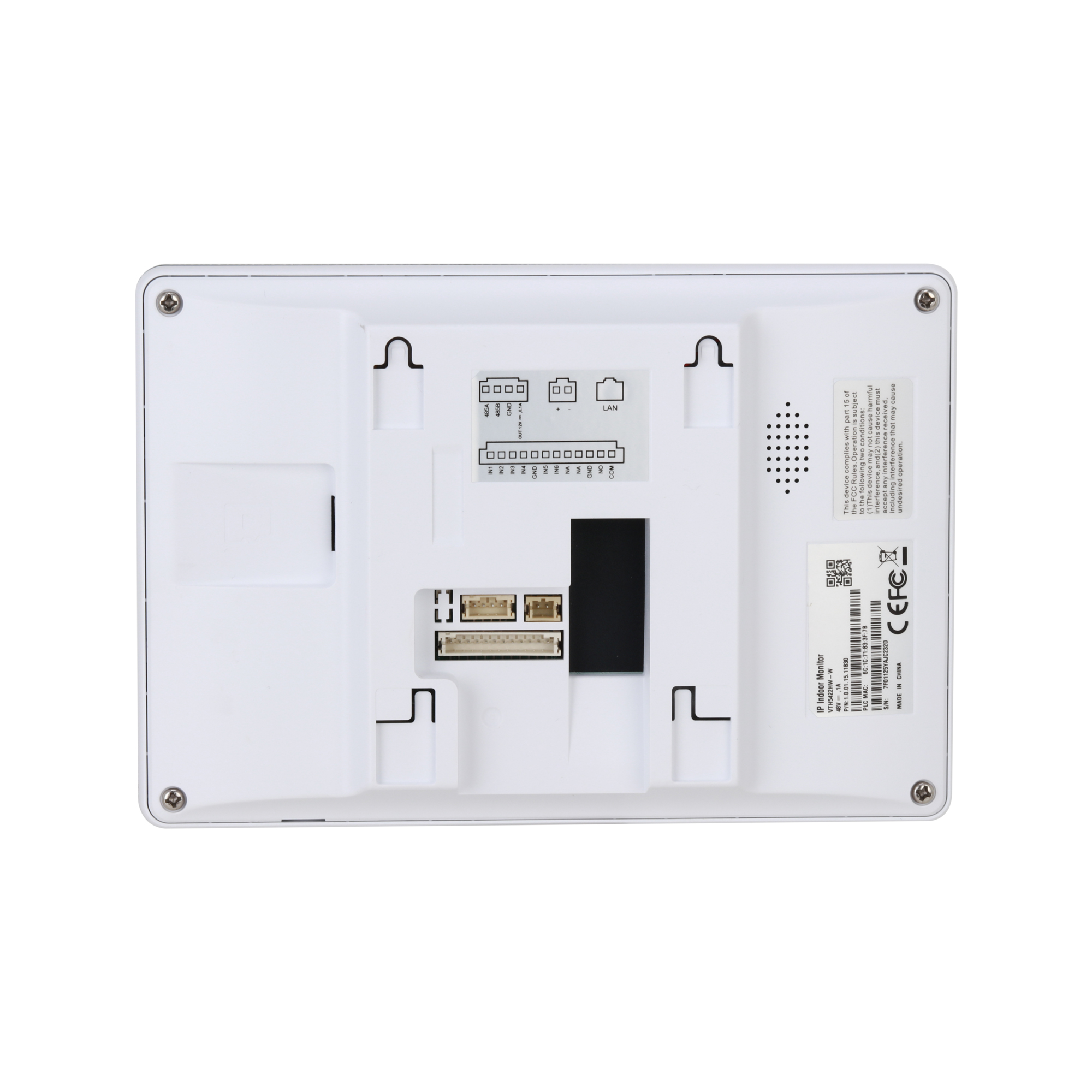

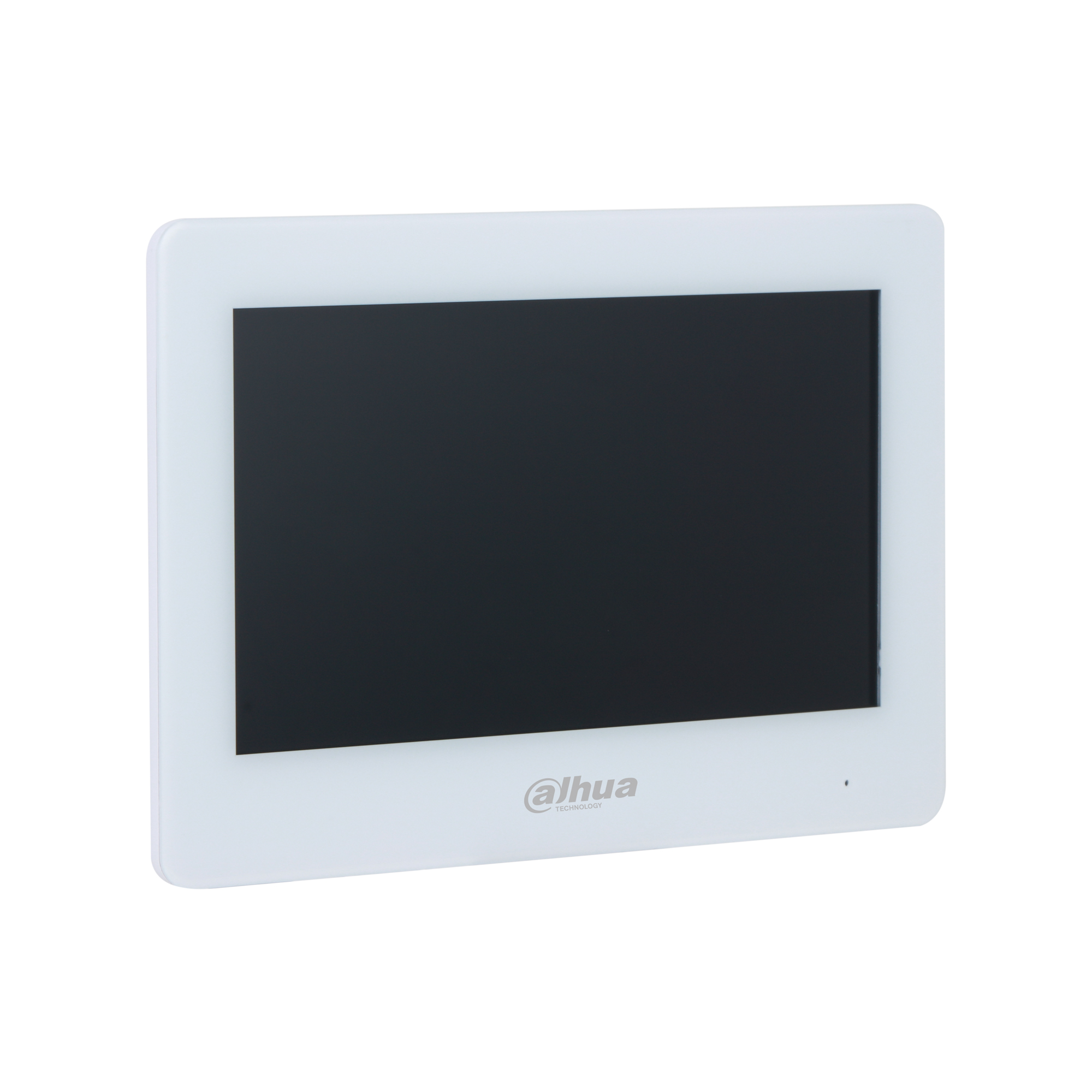

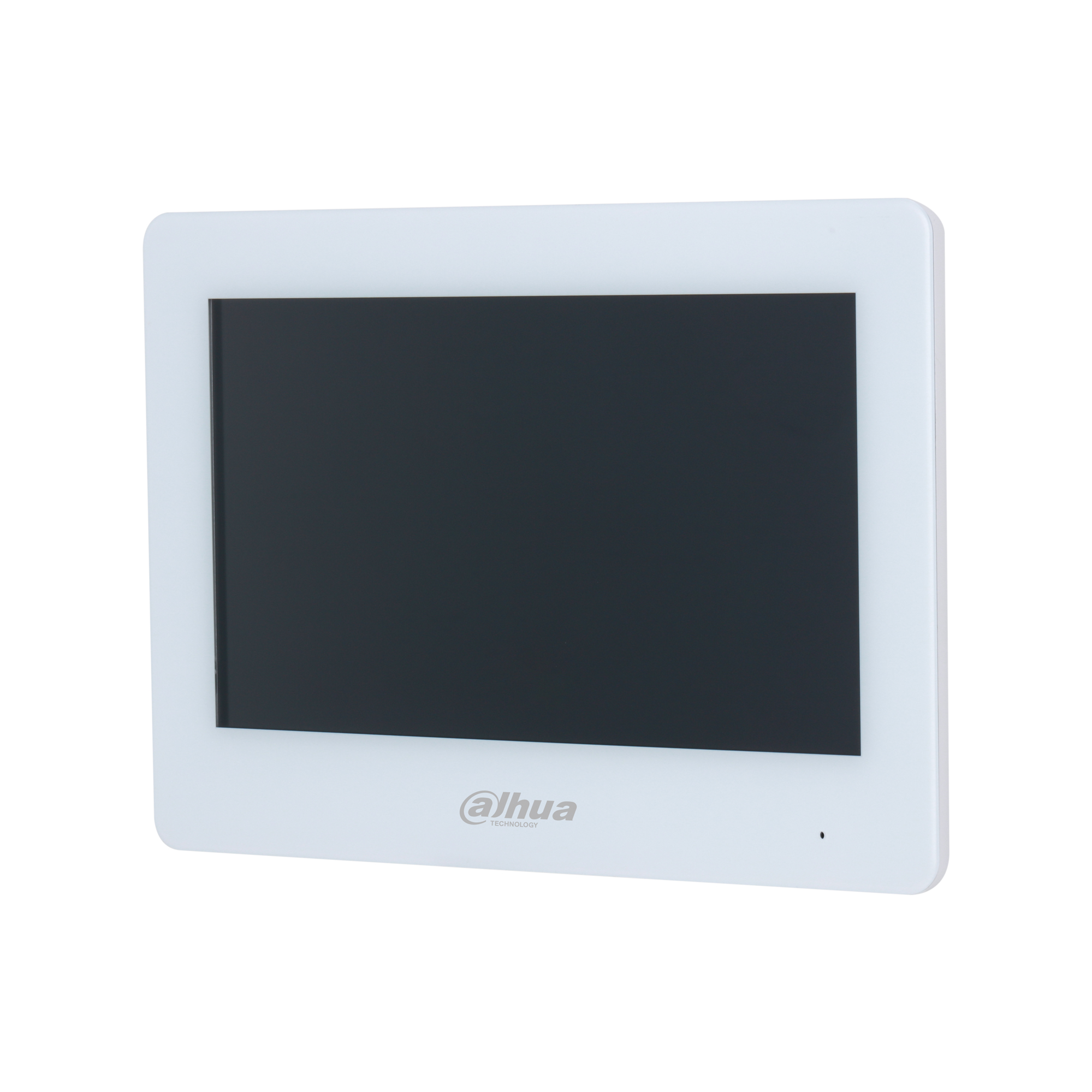

An indoor monitor with a 7" capacitive touchscreen for 2-wire IP intercom systems. Alongside the door station it also opens the view from IP cameras, and it supports the 2-wire line, wired network and Wi-Fi.

7"Display

1024 × 600Resolution

6-channelAlarm Input

64 GBMemory Card Support

2-wire / RJ-45 / Wi-FiLink Type

Key features

7inch

Capacitive touchscreen

It shows the door image and the menu at 1024 × 600.

6channel

Wired alarm zones

It gathers the wired alarm zones and takes the doorbell on the same port; 1 output channel signals an external device.

2.4GHz

Wi-Fi connection

It uses the IEEE802.11b/g/n standard, and WPA/WPA2 encryption protects the traffic.

16kHz

Clear voice conversation

16-bit audio processing and echo suppression keep speech clean.

64GB

Micro SD card slot

A Micro SD card adds local space for video messages.

DAILY USE

Camera viewingBesides the door station it also opens the view from connected IP cameras.

Do Not DisturbThe user sets Do Not Disturb to fit their own routine and still receives info messages.

Video messagesWhen nobody is home the visitor leaves a video message, and the user watches it on return.

Display & Audio Specifications

Display Type / Size

7" TFT Capacitive Touchscreen

Resolution

1024 × 600

Audio Performance

Two-way Audio / Echo Suppression

Audio Compression

G.711a; G.711u; PCM (16 kHz, 16 Bit)

Connectivity & Smart Functions

Communication Interface

Digital 2-wire, RJ-45 (10/100 Mbps) and Wi-Fi

Wireless Standards

IEEE802.11b/g/n (2.4 GHz) / WPA/WPA2 Support

Alarm Integration

6-ch Input / 1-ch Output / Doorbell Support

Smart Functions

DND Mode / Video Messaging / Info Reception

Storage / Memory

Micro SD Card Slot (Up to 64 GB)

Physical & General Parameters

Casing Material / Color

PC + ABS / White or Black

Dimensions (H × W × D)

189.0 mm × 130.0 mm × 26.9 mm

Power Consumption

Standby ≤ 2 W / Working ≤ 6 W
