Answers the door call, unlocks the door and watches connected cameras.

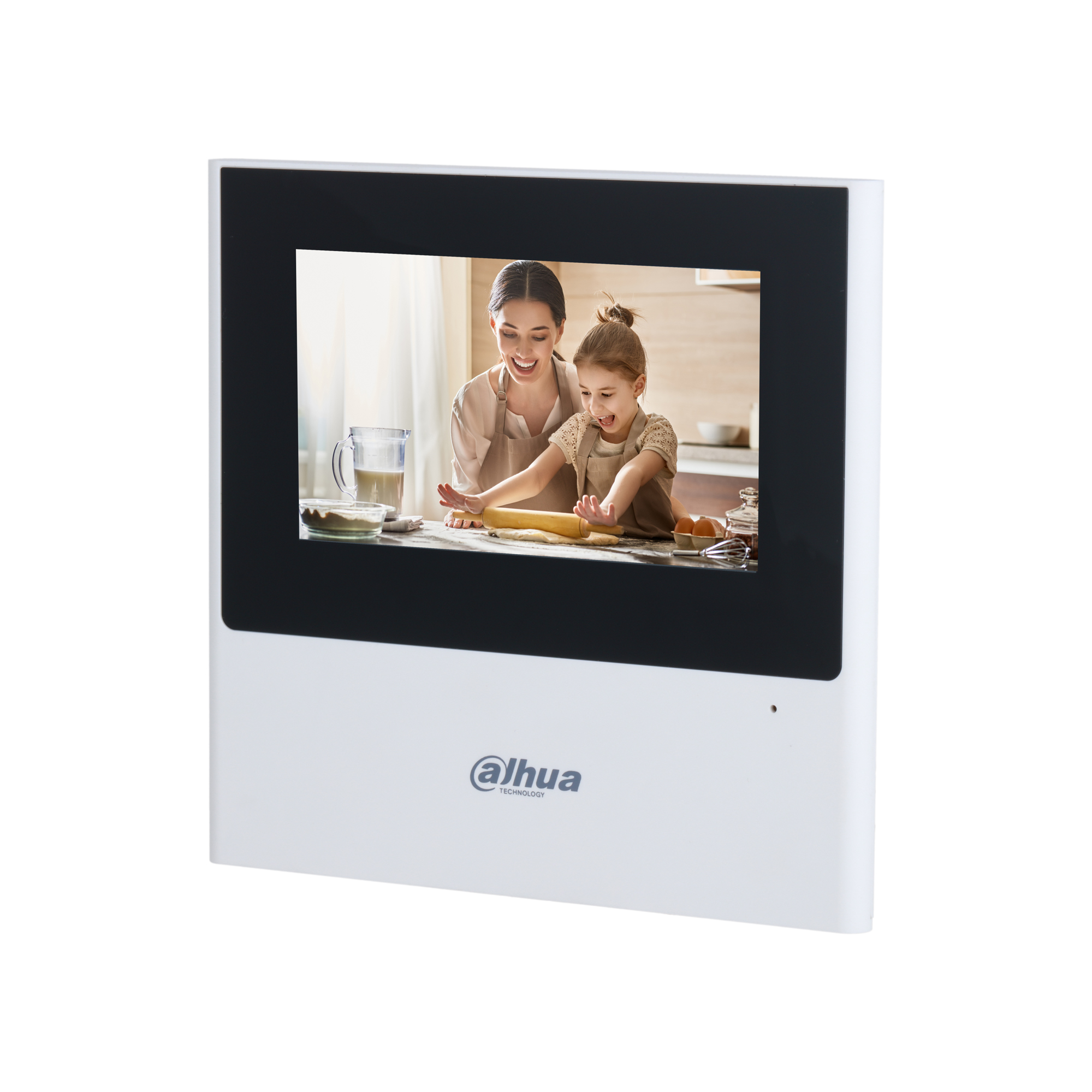

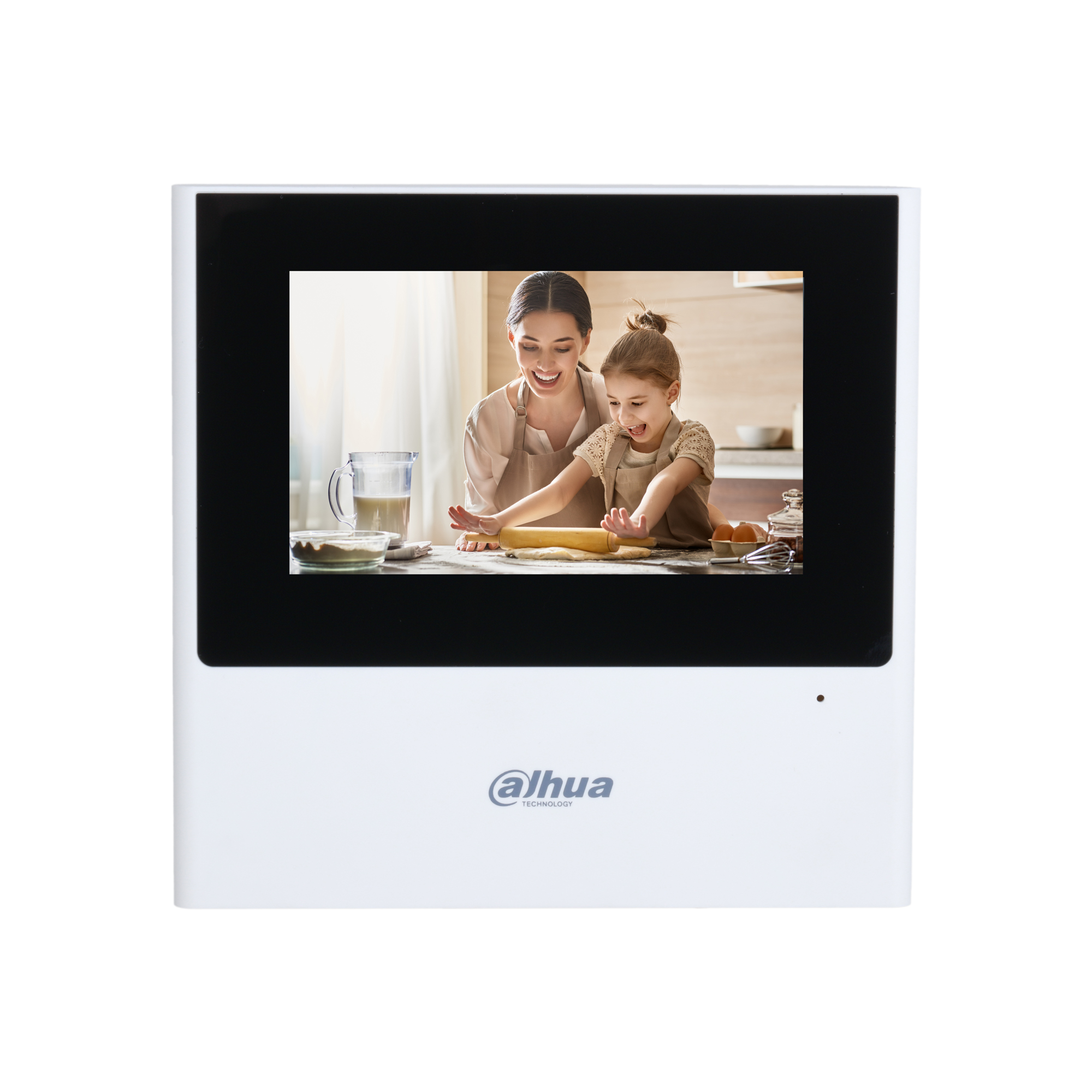

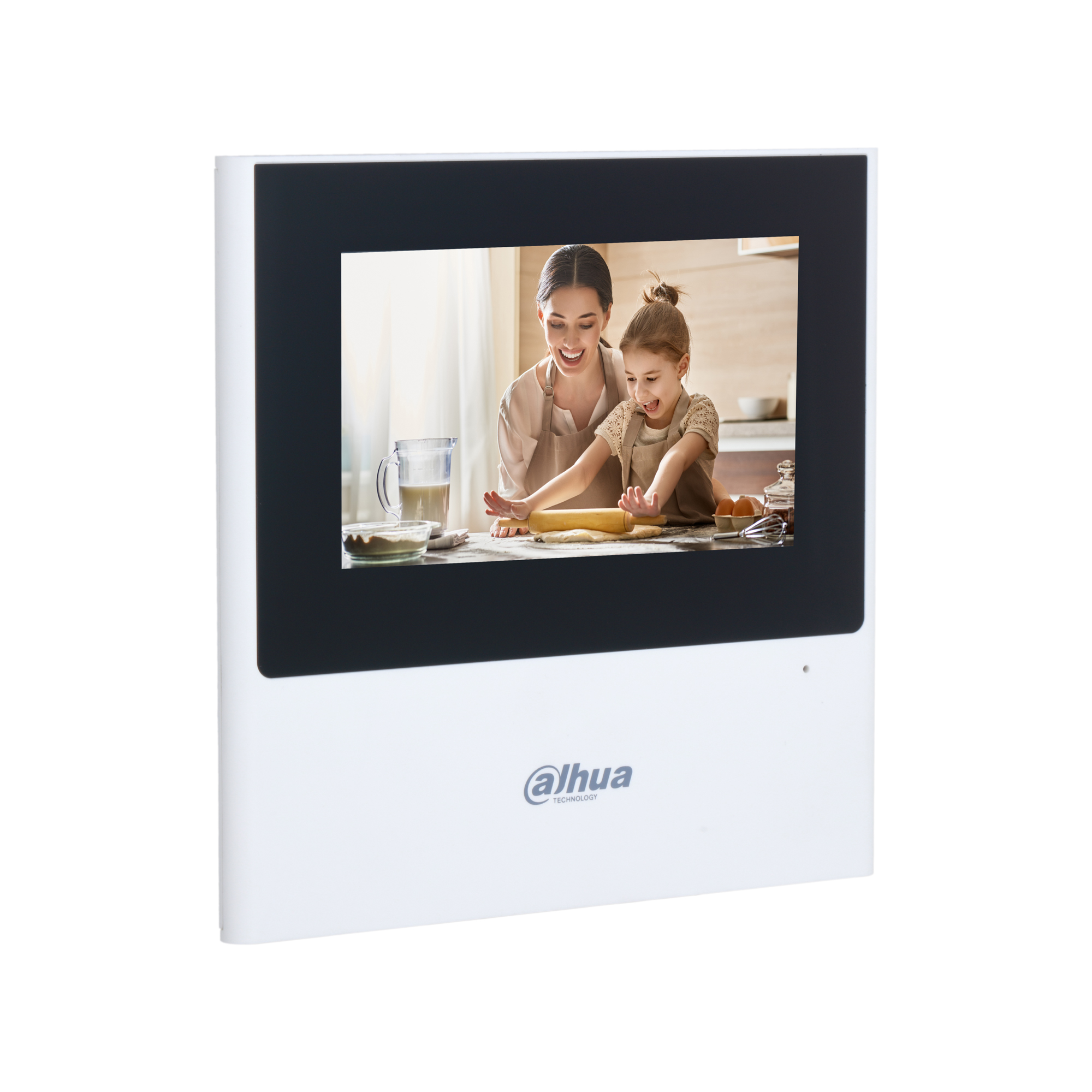

A compact indoor monitor for 2-wire IP intercom systems. Its 4.3" capacitive touchscreen runs at 480 × 272, and it supports both Ethernet and Wi-Fi.

4.3"Display

480 × 272Resolution

4-channelAlarm Input

2-wire / RJ-45 / Wi-FiLink Type

50 mTransmission Distance

48 V DCPower Options

Key features

4.3inch

Capacitive touchscreen

It shows the door image and the menu at 480 × 272.

4channel

Wired alarm zones

It gathers the wired alarm zones in one place, and 1 output channel signals an external device.

2.4GHz

Wi-Fi connection

It uses the IEEE802.11b/g/n standard, and a 10/100 Mbps Ethernet port carries the wired link.

50m

Reach of the 2-wire line

The 2-wire connection reaches the monitor over this distance.

48V DC

Power from a single source

It runs on a 1 A supply and stays under 6 W in use.

DAILY USE

SOS alarmIn an emergency it triggers the SOS alarm and passes on the call for help.

Do Not Disturb periodThe user sets Do Not Disturb to the hours they choose.

Camera viewingIt brings the view from connected IP cameras to the screen, so the user sees the visitor before opening the door.

Display & Audio Specifications

Display Type / Size

4.3" TFT Capacitive Touchscreen

Resolution

480 (H) × 272 (V)

Audio Input

1 channel

Audio Output

1 Built-in Speaker + 1 Receiver Speaker

Audio Enhancement

Two-way Audio; Echo Suppression / Digital Noise Reduction

Audio Compression

G.711a; G.711u; PCM

Connectivity & Smart Functions

Communication Protocol

UDP; TCP; IPv4; RTSP; SIP; RTP

2-wire Port

Yes (Max. 50 m transmission distance)

Ethernet

1 × 10/100 Mbps (RJ-45)

Wireless Standard

2.4 GHz Wi-Fi (IEEE802.11b/g/n)

Alarm I/O

4-ch Input / 1-ch Output

Advanced Features

SOS Alarm; DND (Do Not Disturb) Mode

Physical & General Parameters

Casing Material / Color

ABS Plastic / White

Dimensions (W × H × D)

136.0 mm × 140.0 mm × 25.5 mm

Weight

0.21 kg

Mounting

Surface Mount

Operating Temperature

-10°C ~ +55°C

Operating Humidity

10% ~ 90% (RH), non-condensing

Power Supply

48 VDC, 1A

Power Consumption

≤4 W (standby); ≤6 W (working)
