| General |
|---|
| Product Code | FO124S-6T-LSZH |

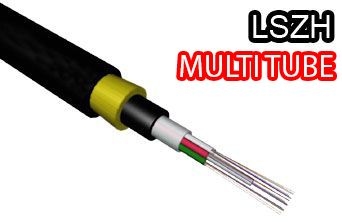

| Description | 24 Core 9/125 SM Armored 6 Tube Fiber Optical Cable with LSZH Jacket |
| Cable Type | Indoor/Outdoor Type Fiber Optic Cable (Single Mode Fibers) |
| Standards Conformance | ANSI/TIA/EIA-569B.3, ISO/IEC 11801, CENELEC EN 50173 |
| Cable Construction |
|---|
| Number of Fibers | 24 |
| Number of Loose Tubes × Number of Fibers per Tube | 6 × 4 |
| Central Strength Member (CSM) | | Diameter | 2,2 ± 0,05 mm | | Material | FRP | | CSM Oversheathing Diameter | --- |
|
| Loose Tube | | Material | PC+PBT | | Diameter | 2,15 ± 3% mm | | Type of Filling Compound | Thixotropic jelly |
|
| Filler (if required) – Material | PE |
| Core Filling Compound – Material | Petroleum gel for water blocking |
| Core Wrapping – Material | Polyester tape |
| Peripheral Strength Members – Material | Glass yarn |
| Inner Sheath | | Material | LDPE | | Thickness | 1,0 mm (nominal) |
|
| Armor & Rodent Protection | | Material | Two sides plastic clad and corrugated steel tape | | Thickness | 0,15 mm |
|
| Outer Sheath | | Material | UV stabilized LSZH thermoplastic material | | Thickness | 1,3 mm (nominal) |
|
| Cable Diameter | 13,2 mm ± 0,2 |
| Cable Weight (approx.) | 200 kg/km |
| Mechanical Characteristics (all optical measurements at 1550 nm) |
|---|
| Tensile Force | | Test Standard | IEC 60794-1-2-E1 | | Installation | Max. 2700 N | | Operation | Max. 1700 N | | Acceptance Criteria | Installation: Δα ≤ 0,05 dB, fiber strain ≤ 0,33 %; Operation: Δα ≤ 0,05 dB, no fiber strain, Δα reversible |
|
| Crush Resistance | | Test Standard | IEC 60794-1-2-E3 | | Specified Value | Max. 5000 N | | Acceptance Criteria | No fibers break; Δα ≤ 0,05 dB, no damage |
|
| Impact | | Test Standard | IEC 60794-1-2-E4 | | Specified Value | 10 Nm, 3 impacts at different points, R = 300 mm | | Acceptance Criteria | No damage |
|
| Torsion | | Test Standard | IEC 60794-1-2-E7 | | Specified Value | 100 N, ± 180°, 5 cycles | | Acceptance Criteria | Δα ≤ 0,05 dB, no damage |
|
| Repeated Bending | | Test Standard | IEC 60794-1-2-E6 | | Specified Value | R = 20 × D, 100 N load, 30 cycles |
|
| Cable Bend | | Test Standard | IEC 60794-1-2-E11 | | Specified Value | R = 20 × D (D: cable diameter), 4 turns, 3 cycles |
|
| Environmental Characteristics |
|---|
| Water Penetration | | Test Standard | IEC 60794-1-2-F5B | | Specified Value | 1 meter specimen, 1 m water altitude | | Acceptance Criteria | No leakage from the opposite end of the cable in 24 hours |
|
| Temperature Cycling | | Test Standard | IEC 60794-1-2-F1 | | Storage | -40 … +80 ºC | | Installation | -5 … +50 ºC | | Operation | -30 … +70 ºC | | Acceptance Criteria | Δα = <0,05 dB/km @ 1550 nm |
|
| Identification |
|---|
| Cable Marking | 1 m ±1% intervals in white color with hot print |
| Identification of Cable | ORingNetworking <year of manufacture> <number of fibers> F <fiber type> <length marking in meter> |
| Color of Filler (if required) | Black |
| Color of Loose Tubes | 1.Blue, 2.Orange, 3.Green, 4.Brown, 5.Grey, 6.White |
| Color of Fibers | 1.Blue, 2.Orange, 3.Green, 4.Brown |
| Color of Outer Sheath | Black |
| Note | This inscription is the standard imprint; it can be changed according to request. Other tube and fiber colors are optional. |
| Delivery Information |
|---|
| Drum Length / Tolerance | 2000 m ± 5% |
| Drum Flange Diameter | 1250 mm |
| Drum Core Diameter | 580 mm |
| Outside Width | 780 mm |
| Central Hole Diameter | 85 mm |
| Note | Drum dimensions can change depending on the cable length on the drum. Standard delivery length is 2 km; other lengths are optional. |
| Fiber Characteristics (Standard SM Fiber, ITU-T G652D) |
|---|
| Attenuation (max.) | 0.36 dB/km (1310 nm); 0.22 dB/km (1550 nm) |
| Mode Field Diameter (MFD) | 9.2±0.5 µm |
| Chromatic Dispersion (max.) | 3.5 ps/(nm×km) (1310 nm); 18 ps/(nm×km) (1550 nm) |
| Cladding Diameter | 125±1 µm |
| Core/Clad Concentricity Error (max.) | 1 µm |
| Zero Dispersion Wavelength | 1300 nm ≤ 1324 nm |
| Cladding Non-Circularity (max.) | 2% |
| Coating Diameter | 250±15 µm |
| Cut-Off Wavelength | 1150 nm ≤ 1330 nm |
| Proof Test | 8.4 N |
| Proof Test Strain | 1.00% |
| Standard Approval | IEC 793-1 |
| Note | ORingNetworking multi-core 6 tube fiber cables are compatible with the above technical specifications. |
