Stock Code: FO108S-2T-LSZH
| General | |
|---|---|
| Product Code | FO108S-2T-LSZH |

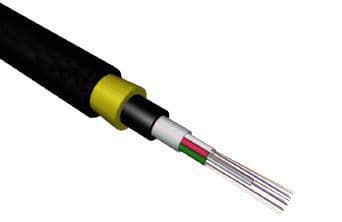

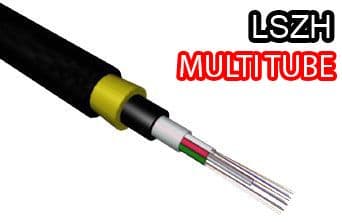

| Product Description | 8 Core 9/125 SM Armored 2 Tube Fiber Optical Cable with LSZH Jacket |
| Cable Type | Indoor/Outdoor type fiber optical cable |
| Fiber Type | Single mode (SM) 9/125 µm, ITU-T G652D |
| Standards Conformance | ANSI/TIA/EIA-569B.3, ISO/IEC 11801, CENELEC EN 50173 |
| Cable Construction | |
| Number of Fibers | 8 |
| Number of Loose Tubes × Fibers per Tube | 2 × 4 |
| Central Strength Member – Diameter | 2,2 ± 0,05 mm |
| Central Strength Member – Material | FRP |
| CSM Oversheathing Diameter | --- |
| Loose Tube – Material | PC+PBT |
| Loose Tube – Diameter | 2,15 mm ± 3% |
| Loose Tube – Type of Filling Compound | Thixotropic jelly |
| Filler (if required) – Material | PE |
| Core Filling Compound – Material | Petroleum gel for water blocking |
| Core Wrapping – Material | Polyester tape |
| Periphery Strength Members – Material | Glass yarn |
| Inner Sheath – Material | LDPE |
| Inner Sheath – Thickness | 1,0 mm (nominal) |
| Armor & Rodent Protection – Material | Two sides plastic clad and corrugated steel tape |
| Armor & Rodent Protection – Thickness | 0,15 mm |
| Outer Sheath – Material | UV stabilized LSZH thermoplastic material |
| Outer Sheath – Thickness | 1,3 mm (nominal) |
| Cable Diameter | 13,2 mm ± 0,2 |
| Cable Weight (approx.) | 200 kg/km |
| Mechanical Characteristics | |
| Tensile Force – Installation (IEC 60794-1-2-E1) | Max. 2700 N; Δα ≤ 0,05 dB, fiber strain ≤ 0,33 % |
| Tensile Force – Operation (IEC 60794-1-2-E1) | Max. 1700 N; Δα ≤ 0,05 dB, no fiber strain, Δα reversible |
| Crush Resistance (IEC 60794-1-2-E3) | Max. 5000 N; no fibers break, Δα ≤ 0,05 dB, no damage |
| Impact (IEC 60794-1-2-E4) | 10 Nm, 3 impacts at different points, R = 300 mm; no damage |
| Torsion (IEC 60794-1-2-E7) | 100 N, ± 180°, 5 cycles; Δα ≤ 0,05 dB, no damage |
| Repeated Bending (IEC 60794-1-2-E6) | R = 20 × D, 100 N load, 30 cycles |
| Cable Bend (IEC 60794-1-2-E11) | R = 20 × D (D: cable diameter), 4 turns, 3 cycles |
| Measurement Condition | All optical measurements at 1550 nm |
| Environmental Characteristics | |
| Water Penetration (IEC 60794-1-2-F5B) | 1 meter specimen, 1 m water altitude |
| Water Penetration Acceptance Criteria | No leakage from the opposite end of the cable in 24 hours |
| Temperature Cycling Test Standard | IEC 60794-1-2-F1 |
| Storage Temperature | -40 °C ~ +80 °C |
| Installation Temperature | -5 °C ~ +50 °C |
| Operating Temperature | -30 °C ~ +70 °C |
| Temperature Cycling Acceptance Criteria | Δα < 0,05 dB/km (1550 nm) |
| Identification and Marking | |
| Cable Marking | 1 m ± 1% intervals in white color with hot print |
| Cable Identification Imprint | ORingNetworking <year of manufacture> <number of fibers> F <fiber type> <length marking in meter> |
| Marking Note | This inscription is the standard imprint; it can be changed according to request. |
| Color of Filler (if required) | Black |
| Color of Loose Tubes | 1. Blue, 2. Orange, 3. Green, 4. Brown, 5. Grey, 6. White |
| Color of Fibers | 1. Blue, 2. Orange, 3. Green, 4. Brown |
| Color of Outer Sheath | Black |
| Color Note | The other tube and fiber colors are optional. |
| Delivery Information | |
| Drum Length / Tolerance | 2000 m ± 5% |
| Drum Flange Diameter | 1250 mm |
| Drum Core Diameter | 580 mm |
| Outside Width | 780 mm |
| Central Hole Diameter | 85 mm |
| Delivery Note | Drum dimensions can change depending on the cable length on the drum. Standard delivery length is 2 km; other lengths are optional. |
| Fiber Characteristics (Standard SM Fiber, ITU-T G652D) | |
| Fiber Standard | Standard single mode fiber, ITU-T G652D |
| Attenuation (max.) | 0.36 dB/km (1310 nm); 0.22 dB/km (1550 nm) |
| MFD (Mode Field Diameter) | 9.2 ± 0.5 µm |
| Chromatic Dispersion (max.) | 3.5 ps/(nm×km) (1310 nm); 18 ps/(nm×km) (1550 nm) |
| Cladding Diameter | 125 ± 1 µm |
| Core-Clad Concentricity Error (max.) | 1 µm |
| Zero Dispersion Wavelength | 1300 nm ≤ λ ≤ 1324 nm |
| Cladding Non-circularity (max.) | 2% |
| Coating Diameter | 250 ± 15 µm |
| Cut-off Wavelength | 1150 nm ≤ λ ≤ 1330 nm |
| Proof Test | 8.4 N |
| Proof Test Strain | 1.00% |
| Fiber Test Standard | IEC 793-1 |
