Meets 25 lines on the panel with female socket contacts.

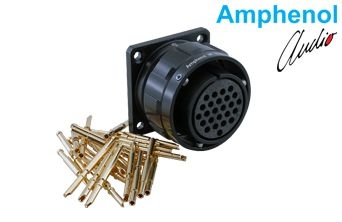

A female chassis connector that seats into cabinet and rack panels. Gold plated socket contacts come with the product, the mated pair reaches IP67 protection, and it receives the cable-side plug in fixed installations.
Chassis mountingIt seats on the panel surface and gathers the in-cabinet lines at a single point.
Gold plated socket contactsThe female socket contacts cover solder and crimp termination alike.
Die cast aluminum shellThe die cast aluminum alloy shell finishes in black.
Wire gaugeIt terminates conductors in the 16 AWG – 20 AWG range.
DimensionsPer the technical drawing, dimension A is 44.5 mm, B is 34.9 mm, diameter D is 48.5 mm and dimension E is 41.0 mm.
