Brings 25 lines together in a single panel connector.

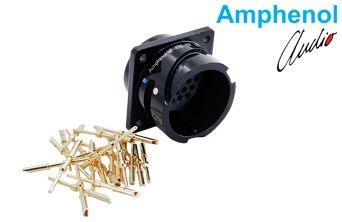

A male chassis connector that seats into racks, cabinets and amplifier panels. Gold plated crimp pin contacts come with the product, the mated pair reaches IP67 protection, and it carries the multi-line runs that studio and stage setups connect and disconnect often.
25Number of contacts
13 ACurrent carrying capacity
IP67Protection Grade
2000Mating cycles
-55 / +125 °COperating Temperature
Key features
Chassis mountingIt seats on the panel surface and gathers the in-cabinet lines at a single point.
Gold plated contactsCrimp pin contacts come with the product and cover solder and crimp termination alike.
Die cast aluminum shellThe die cast aluminum alloy shell finishes in black.
Wire gaugeIt terminates conductors in the 16 AWG – 20 AWG range.
DimensionsPer the technical drawing, dimension A is 44.5 mm, B is 34.9 mm, diameter D is 40.9 mm and the mounting hole diameter is 3.73 mm.
