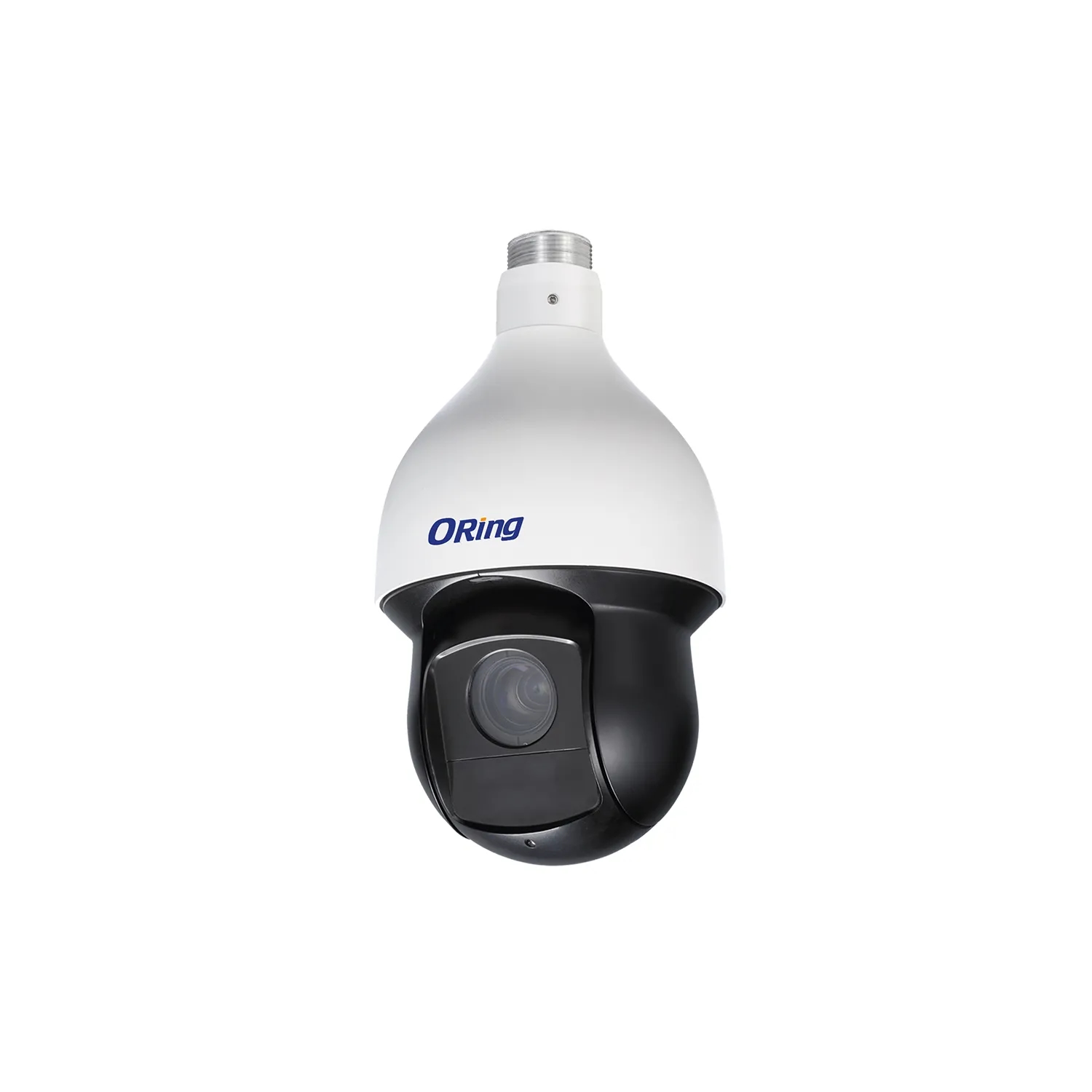

    2MP 25x Starlight IR PTZ HDCVI Kamera
    ORing

    2MP 25x Starlight IR PTZ HDCVI Kamera

    Stock Code: OR-SD5223IC

    Options

    2 options
    Zoom25x2
    Currently viewing: OR-SD5223IC · 25x
    Reaches distant scenes with 25x optical zoom and sees up to 150 meters in the dark.
    A 2MP starlight PTZ camera for outdoor sites. Its 1/2.8" STARVIS sensor produces color images at 0.005 lux, and the 4.8–120 mm lens brings the scene 25x closer. The IP66 housing works between -40°C and +70°C.
    1920×1080Max. Resolution
    1/2.8" STARVIS CMOSSensor
    4.8–120 mmFocal Length
    150 mIR LED Distance
    IP66Protection Grade
    AC 24VPower supply
    Key features
    Optical zoomThe 4.8–120 mm lens zooms 25x, and the horizontal angle of view ranges from 59.2° to 2.4°.
    Pan and tiltPans 360° endlessly and tilts between -15° and 90°.
    Preset speedMoves to a preset at 400°/s on the pan axis and 300°/s on the tilt axis.
    Wide dynamic range120 dB true WDR keeps detail in high-contrast scenes.
    Frame rateRecords 30 fps at 1080P and 30/60 fps at 720P.
    Power consumptionDraws at most 25 W on an AC 24V supply.
    Specifications
    Image Sensor 1/2.8" 2MP STARVIS™ CMOS
    Min. Illumination 0.005 Lux/F1.6 (Color)
    0 Lux/F1.6 (IR on)
    Focal Length 4.8~120 mm
    (25x Optical Zoom)
    Angle of View (Horizontal) 59.2° ~ 2.4°
    Day/Night ICR
    Max. IR Distance 150 m (492 ft)
    OSD Menu Support
    WDR 120 dB True WDR
    Noise Reduction 2D/3D
    Frame Rate 30 fps@1080P
    30/60 fps@720P
    Video Output HD/SD Switchable
    Pan/Tilt Pan: 0° ~ 360° endless;
    Tilt: -15° ~ 90°
    Preset Speed Pan: 400°/s
    Tilt: 300°/s
    Audio Input 1
    Alarm Input/Output 2/1
    Ingress Protection IP66
    Operating Temperature -40°C ~ +70°C (-40°F ~ +158°F)
    Power Supply AC 24V
    Max. 25 W

    Datasheet

    OR-SD5223IC

    1.0pdf3/1/2018
