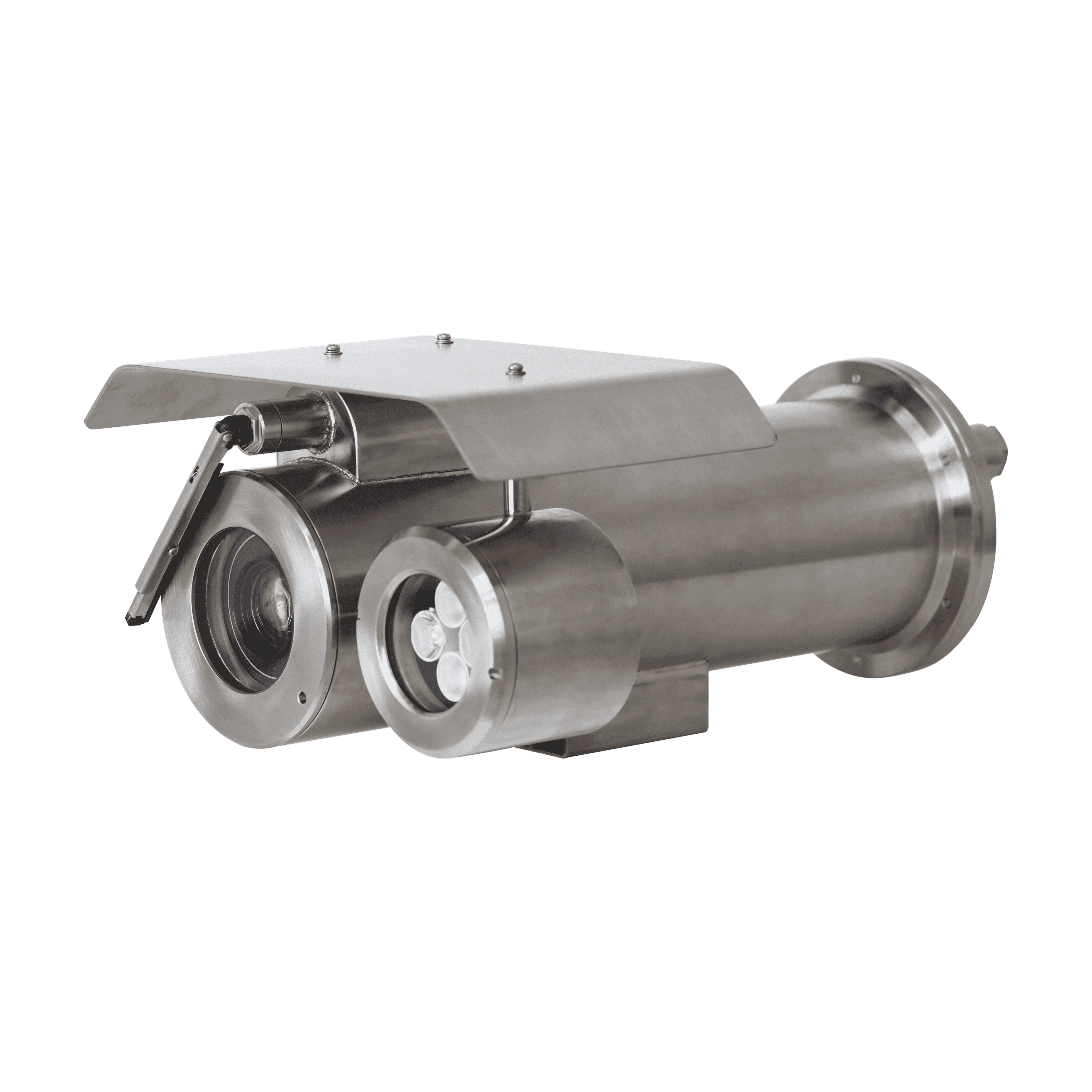

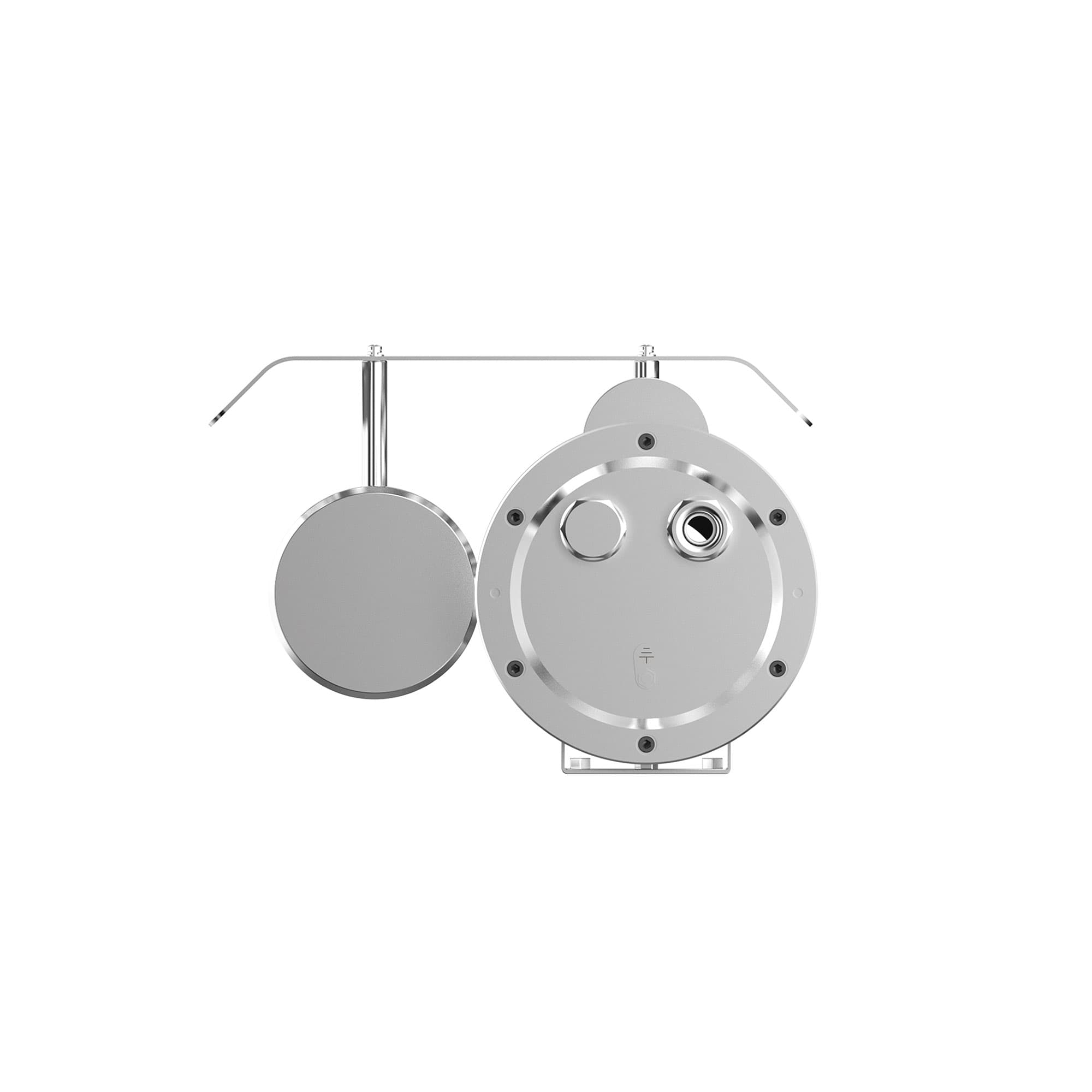

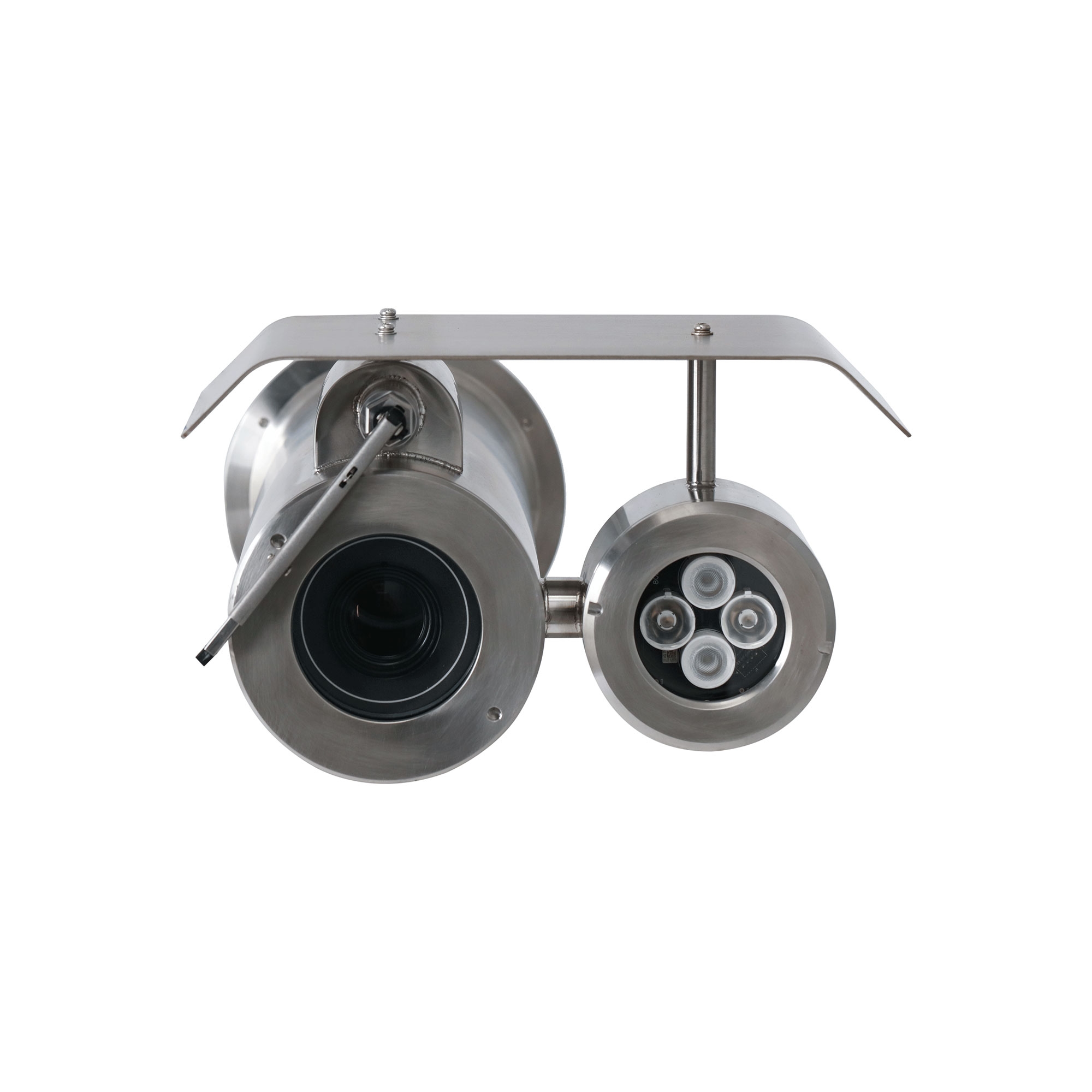

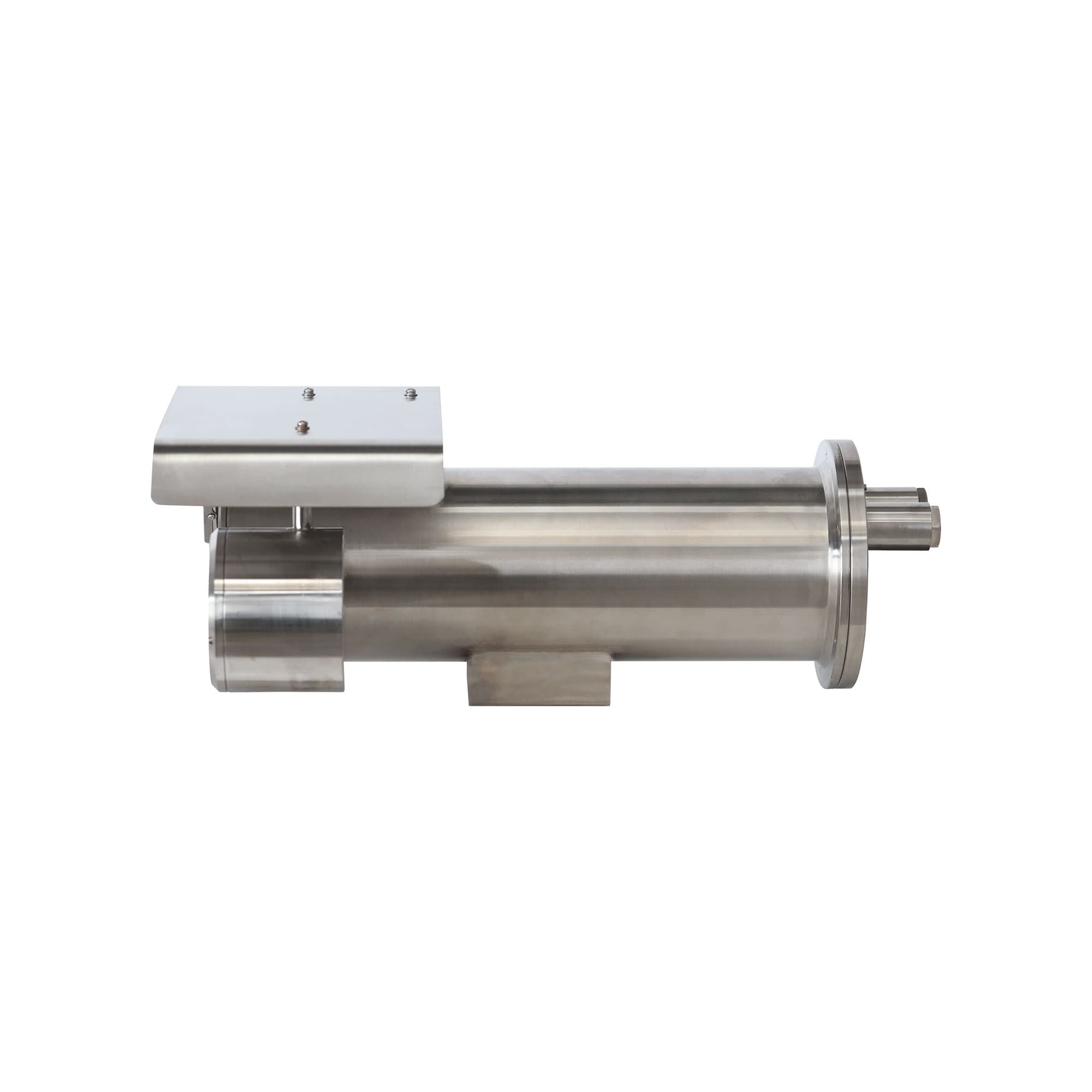

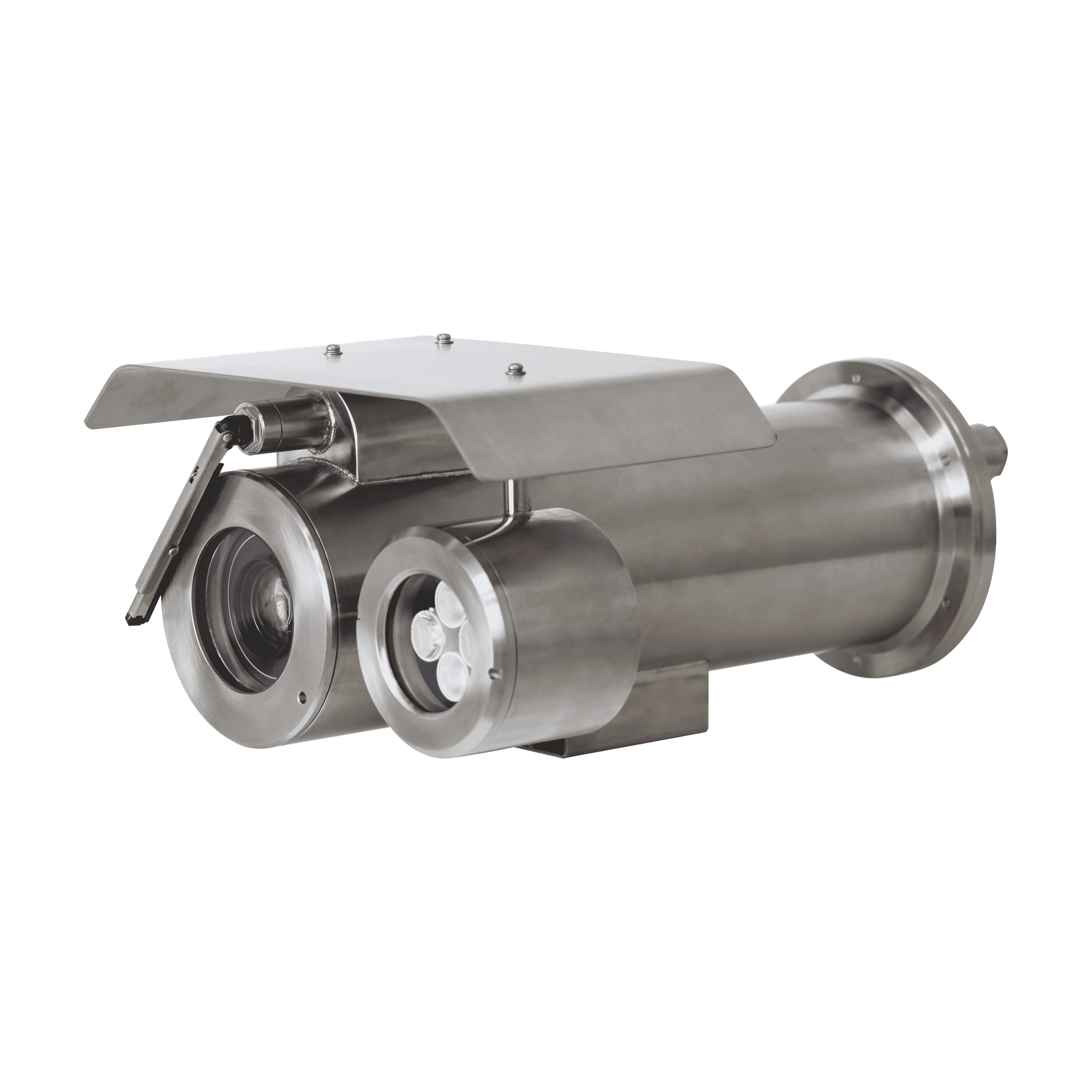

Stock Code: ECA7B1231-HNP-XA-F
| Camera | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s – 1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.001 lux@F1.6 B/W: 0.0001 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 100 m (328.08 ft) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number | 4 (IR) |
| Wiper | Yes |
| Lens | |
| Focal Length | 6 mm – 186 mm |
| Max. Aperture | F1.6 – F4.0 |
| Field of View | H: 59.8° – 2.8°; V: 33.7° – 1.9°; D: 63.3° – 4° |
| Optical Zoom | 31× |
| Focus Control | Auto; semi-auto; manual |
| Iris Control | Auto; semi-auto; manual |
| PTZ | |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour |
| Intelligence | |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face detection, optimization, face bounding box, capturing pictures, uploading high-quality face snapshots, and face enhancement; Supports attributes extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, scary, surprise, calm, happy and confused), mask, mustache; Supports face cutout: Face, one-inch photo. Capturing strategies include real-time capturing, optimization, and quality first |
| Job Monitoring | Helmet detection; helmet color recognition |
| SMD | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264B; MJPEG (Sub Stream); Smart H.264; Smart H.265 |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704×576/704×480); CIF (352×288/352×240) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p (1 – 25/30 fps) Sub stream 1: D1/CIF (1 – 25/30 fps) Sub stream 2: 1080p/1.3M/720p (1 – 25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 2816 – 8192 kbps H.265: 1024 – 7936 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 140 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view. It also supports multiple color blocks and mosaics. |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G.711a; G.711Mu; G726; MPEG2-Layer2; G722.1; G729; PCM; G723 |
| Network | |
| Network Port | 1 (crystal head, 10/100 Base-T) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMPv1/v2c/v3; IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; SMB; NFS |
| Interoperability | ONVIF Profile S&G&T; 35114 A level; CGI |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (256 GB); NAS |
| Browser | IE 7 and later versions; Chrome 42 and earlier versions; Firefox 52 and earlier versions; Safari |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android; iPhone; iPad |
| Certification | |
| Certifications | FCC: 47 CFR FCC Part15, Subpart B, ClassA CE: EN55032/EN55024/EN55035/EN50130-4/EN 61000-3-3/EN IEC 61000-3-2/EN 62368-1 IECEx: IEC 60079-0/IEC 60079-1/IEC 60079-31 ATEX: IEC 60079-0/IEC 60079-1/IEC 60079-31 |
| Port | |
| RS-485 | 1 (baud rate: 1200 – 9600 bps) |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Alarm Linkage | Capture; preset; tour; pattern; recordings on SD card; alarm digital input; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Optical Fiber | 100 M single fiber port 1310 nm TX/1550 nm RX Transmission Distance: 20 km (12.43 mi) |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 100 – 240 VAC |
| Power Consumption | Basic: 10 W Max.: 19 W (IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP68 |
| Structure | |
| Casing Material | Stainless steel |
| Product Dimensions | 192 mm × 488 mm × 284 mm (7.56" × 19.21" × 11.18") |
| Net Weight | 10 kg (22.05 lb) |
| Gross Weight | 16 kg (35.27 lb) |
