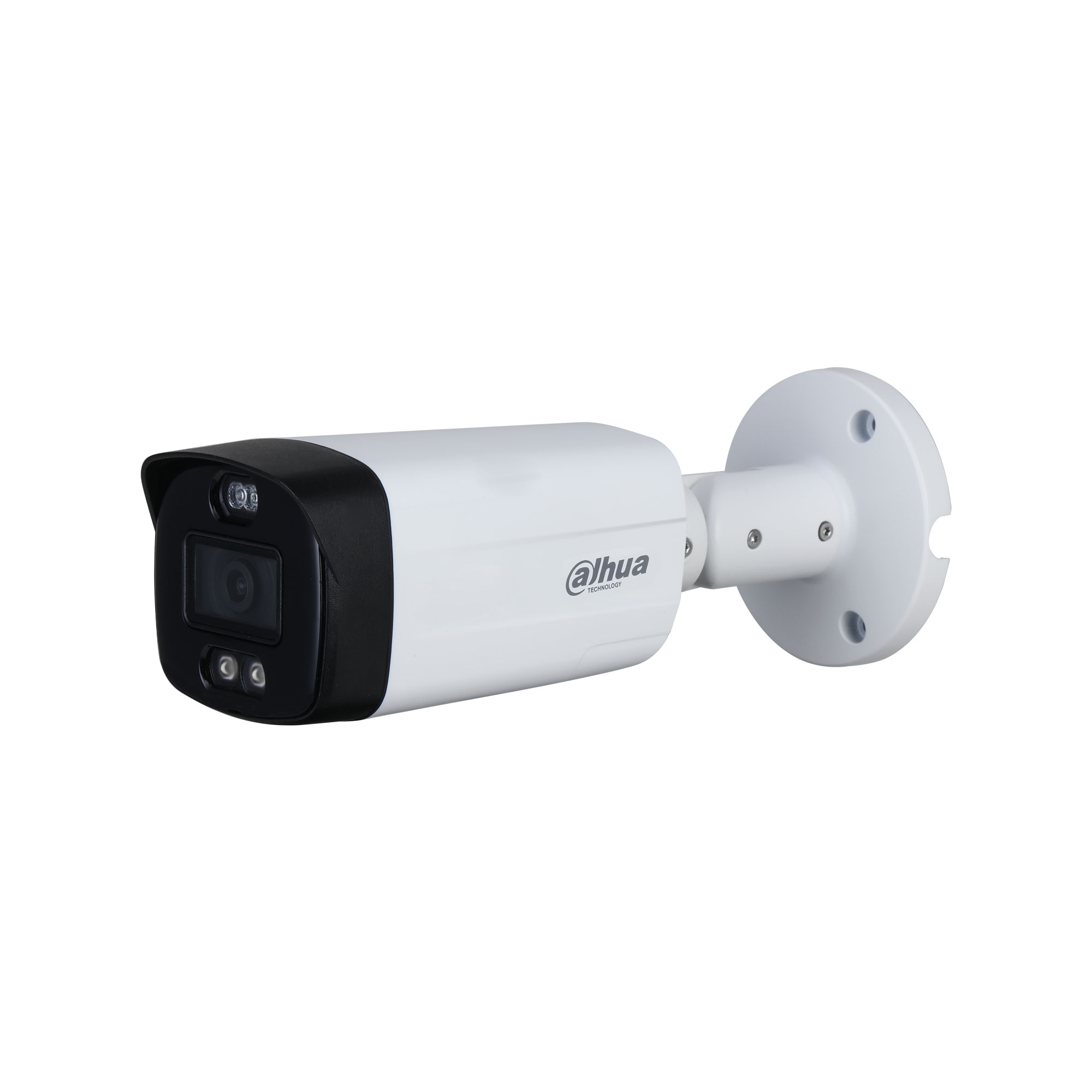

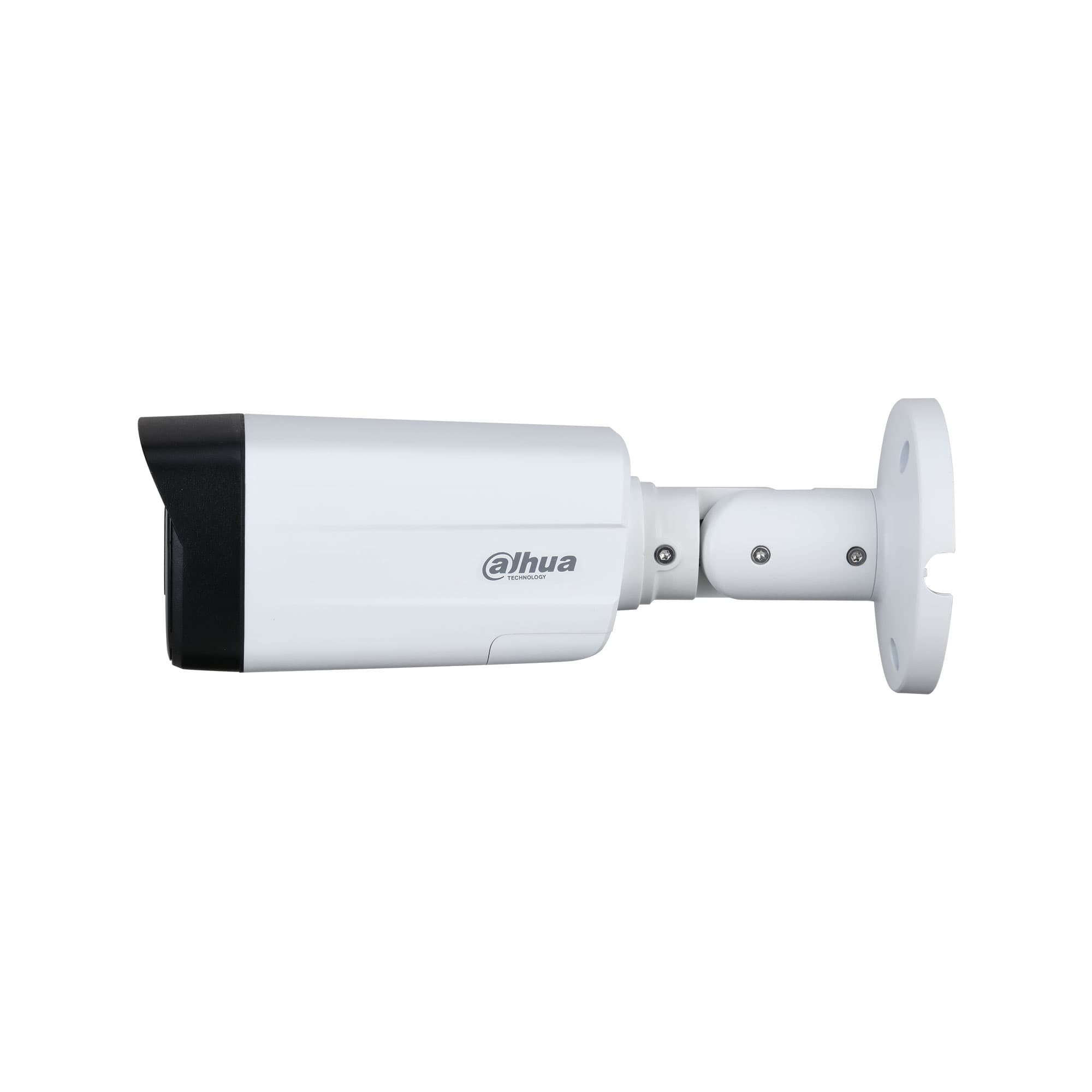

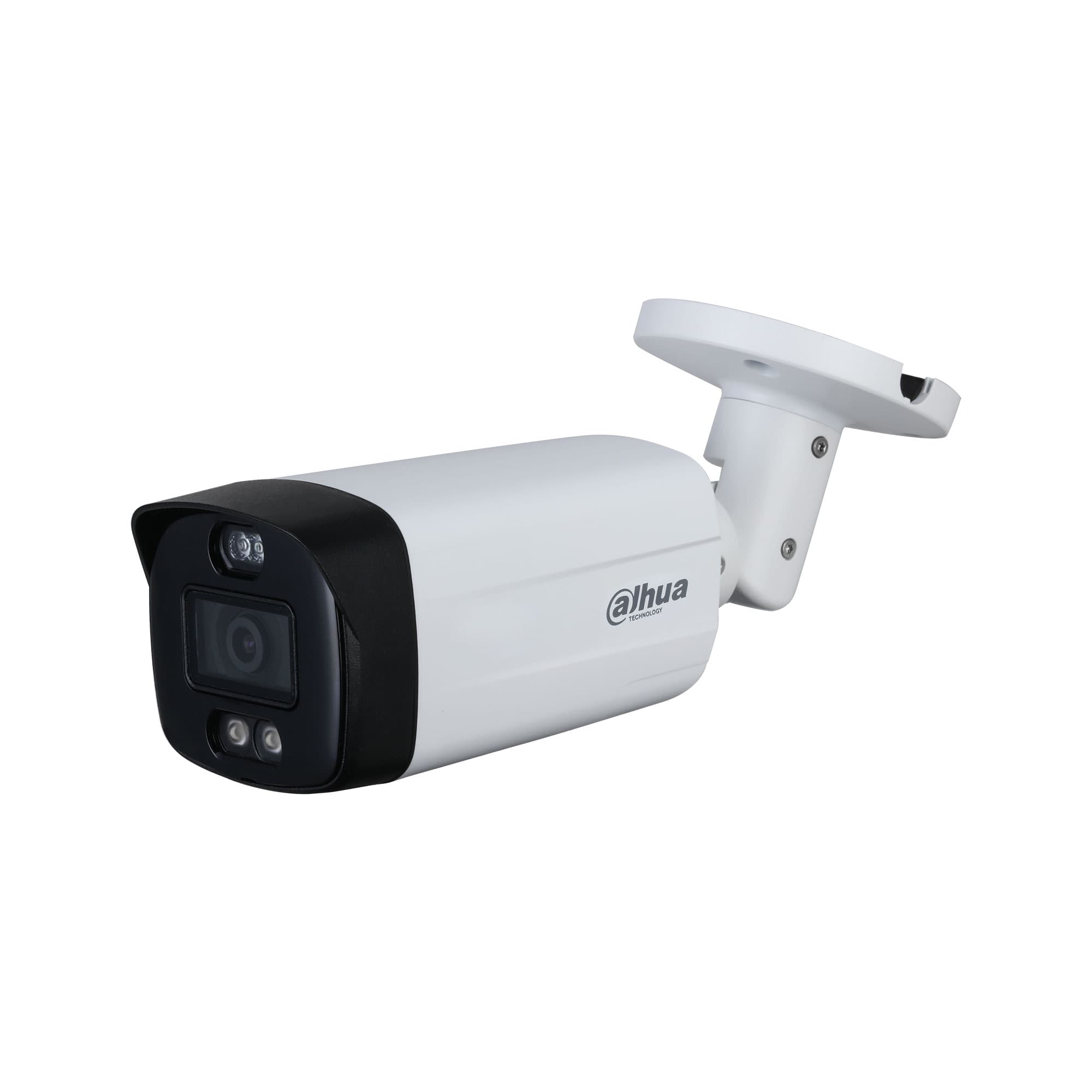

| Camera |
|---|
| Pixel | 2 MP |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.001 lux@F1.6 (Color, 30 IRE); 0.0001 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 40 m (131.23 ft); Warm light: 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR light); 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens |
|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 108°; V: 58°; D: 127° | 3.6 mm: H: 86°; V: 46°; D: 101° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.7 m (2.29 ft); 3.6 mm: 1.1 m (3.61 ft) |
| DORI Distance | | Lens | Detect | Observe | Recognize | Identify |
|---|
| 2.8 mm | 42.2 m (138.45 ft) | 16.9 m (55.45 ft) | 8.4 m (27.56 ft) | 4.2 m (13.78 ft) | | 3.6 mm | 53.7 m (176.18 ft) | 21.5 m (70.54 ft) | 10.7 m (35.10 ft) | 5.4 m (17.72 ft) |
|
| Video |
|---|
| Video Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps | AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps | CVBS: PAL: 960 × 576H; NTSC: 960 × 480H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto (ICR)/Color/B/W |
| Backlight Compensation | BLC; HLC |
| WDR | 130 dB |
| White Balance | Auto; Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Smart Illumination | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Illuminator Mode | Smart IR&WL; WL Mode; IR Mode |
| Active Deterrence |
|---|
| Sound Warning | Audio1: alarm; Audio2: No parking here; Audio3: Private land, no entry; Audio4: Warning zone, keep off; Audio5: Welcome; Volume: high/medium/low; Duration: 5 s–60 s; 110 dB |
| Red/Blue Light Warning | Flash: 5 s–60 s; Frequency: high/medium/low |
| Certifications |
|---|
| Certifications | CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017); FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014); UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
| Port |
|---|
| Video Output | CVI/TVI/AHD/CVBS via one BNC port |
| Audio Input | One channel built-in MIC (-A) |
| Power |
|---|
| Power Supply | 12 V DC ± 30% (A power adapter is recommended to power the camera) |
| Power Consumption | Max. 7.6 W (12 V DC, IR on) |
| Environment |
|---|
| Operating Temperature | –40 °C ~ +60 °C (–40 °F ~ +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C ~ +60 °C (–40 °F ~ +140 °F) |
| Ingress Protection | IP67 |
| Construction |
|---|
| Casing Material | Metal front cover + plastic rear barrel + metal bracket |
| Product Dimensions | 240.7 mm × Φ90.7 mm (9.48" × Φ3.57") |
| Packaging Dimensions | 299 mm × 119 mm × 111 mm (11.77" × 4.69" × 4.37") |
| Net Weight | 0.44 kg (0.97 lb) |
| Gross Weight | 0.70 kg (1.54 lb) |
| Mounting | Wall mount; ceiling mount; vertical pole mount |
