Adds a 3-pin Mini XLR connection to the device panel

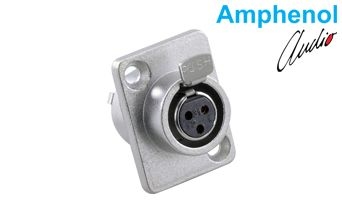

A female Mini XLR connector that sits on the device panel with its square chassis body. It carries the signal connection on the panel in professional audio and lighting systems.
3Pin Count
FemaleGender
ChassisMounting Type
StampedContact Type
5 ACurrent Capacity
5000Mating Cycles
Key features
Series and equivalentBelongs to the Mini XLR, D type series; the comparable part number is TY3F.
TerminationSupports vertical PCB mounting and solder bucket cable termination.
Wire gaugeAccepts conductors up to 24 AWG – 0.5 mm².
Electrical ratingsCarries a rated current of 5 A at 40°C and a rated voltage of 50 V.
Shell and contactsThe nickel plated diecast shell and the stamped contacts withstand 5000 mating cycles.
Temperature and complianceOperates between -30°C and +80°C, holds a UL94V-HB flammability rating and complies with the EU RoHS 2 (2011/65/EU) directive.
Usage areasRadio and TV broadcasting·Professional studios·Sound reinforcement and PA systems·Musicians and DJs·Audio and lighting applications
The mated protection grade is IP00; it gives no protection against dust or water ingress.
