Stock Code: AG3M
| General Characteristics | |
|---|---|

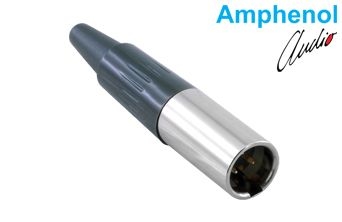

| Product Description | 3 Pole Mini XLR Cable Connector, G Type, Male, Machined Contacts, Nickel Finish |
| Number of Contacts | 3 |
| Gender | Male (pin contacts) |
| Contact Type | Machined |
| Comparable Part No. | TA3M |
| Termination | Printed Circuit Board (PCB) or Solder Bucket |
| Max. Wire Gauge (Stranded Wire) | AWG 24 - 0.2 mm² |
| Flammability | UL94V-HB |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | Radio and TV Broadcasting; Professional Studios; Sound Reinforcement and PA; Musicians and DJs; Special Applications |
| Electrical Characteristics | |
| Current Carrying Capacity | 5 A |
| Typical Contact Resistance | ≤ 10 mΩ |
| Insulation Resistance (Initial) | ≥ 510 MΩ |
| Insulation Resistance (After Damp Heat Test) | ≥ 10 MΩ |
| Dielectric Strength | 1000 V DC |
| Voltage Warning | Not suitable for voltages over 50 V. |
| Climatic Characteristics | |
| Protection Class | IP00 |
| Operating Temperature | -30°C ~ +80°C (-20°F ~ +176°F) |
| Mechanical Characteristics | |
| Insertion Spring Separating Force | ≥ 20 N |
| Cable O.D. (Standard) | 2 mm ~ 3.5 mm (0.078" ~ 0.137") |
| Cable Entry Grommet | 3.5 mm diameter |
| Mechanical Operations | 5000 mating cycles |
| Coupling Nut Thread | 32-3/8" UNF |
| Shell Diameter | Ø10.5 mm |
| Overall Length | 52.5 mm |
| Weight | 13.5 g (0.029 lb) — approximate, excluding packaging |
| Materials | |
| Connector Shell | Bronze & Zinc |
| Connector Shell Finish | Nickel Plated |
| Insulators | PPS - Black |
| Male Contact | Material: Brass C3604 / Plating: Gold over Silver Plated |
| Latch Lock and Spring | SUS (AISI-301) - Nickel Plated |
| Adaptor | PPS - Black |
| Cable Clamp | Bronze - Nickel Plated |
| Boot / Backshell | ABS - Black |
| Grommet | PU - Black |
