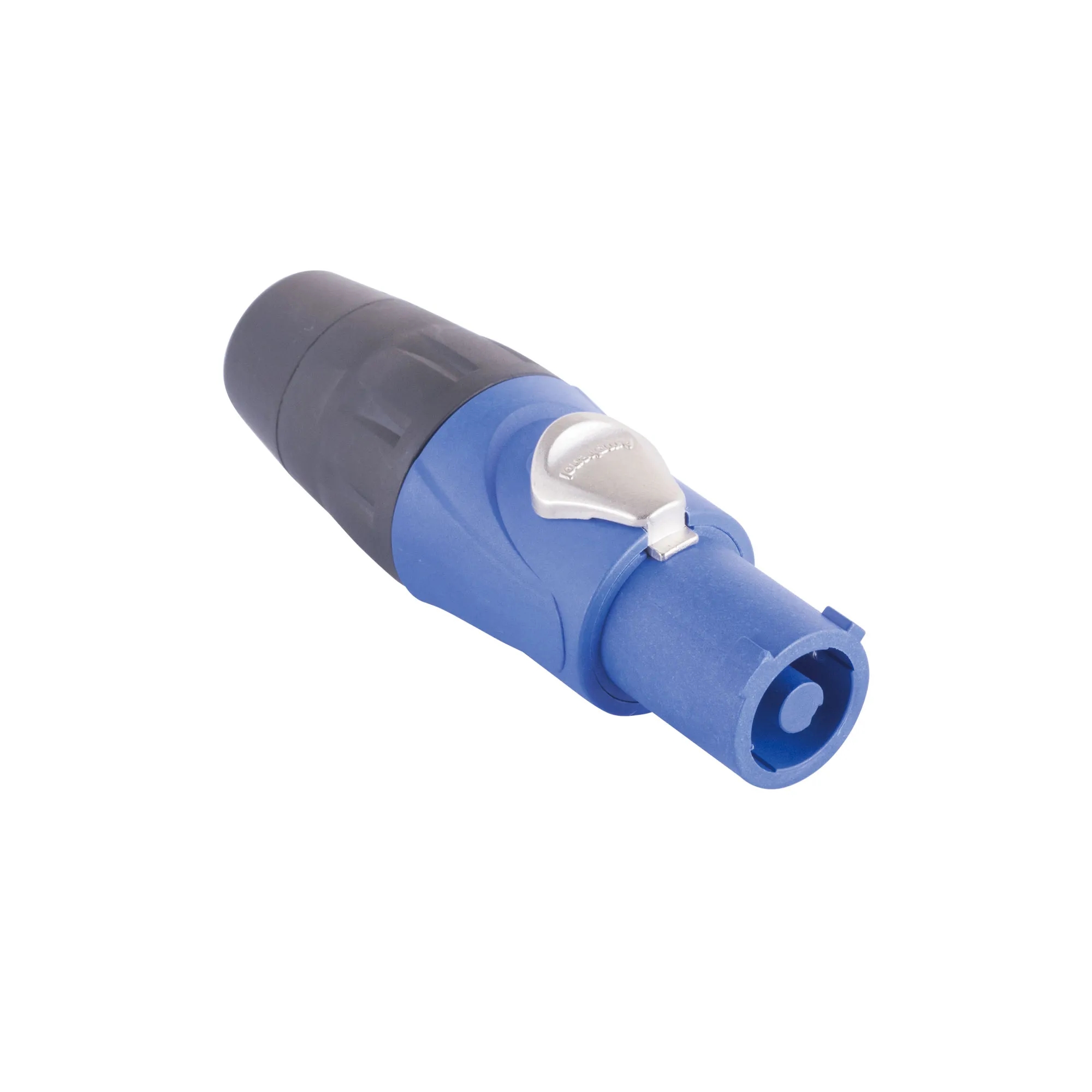

Terminates the power line in a locking cable plug

Three-pole cable plug for industrial power connections. The quick-release lock keeps the mating in place in vibrating environments, while the screw terminal and the 3/16 inch solder tab leave two separate termination paths.

3pin count

25 Acurrent carrying capacity

250 VACrated operating voltage

IP20protection grade

2.5 mm²conductor size

-25 °C ~ +75 °Coperating temperature

Key features

Locking systemThe quick-release lock holds the plug locked to the chassis connector under vibration.

Contact designTwo power contacts and one PE contact sit on silver-plated brass, and typical contact resistance stays at ≤3 mΩ.

TerminationThe screw terminal accepts a 2.5 mm² (AWG 14) conductor and the 3/16 inch solder tab opens the second path.

Cable connectionThe blue chuck clamp grips a 5 mm - 7.5 mm cable outer diameter and the black clamp 7.5 mm - 15 mm, while typical retention force reaches 200 N.

Housing and materialsThe PA66 GF30 shell and insulators form the thermoplastic body, while the cable boot uses Santoprene, the backshell PBT and the chuck clamp P.O.M. The cable plug weighs 32 g.

Electrical enduranceInsulation resistance measures ≥2 GΩ initially and ≥1 GΩ after the damp heat test, and the test voltage reaches 3200 V.

The typical cable retention force varies with the cable material and outer diameter. The housing material is rated UL94V-0 for flammability and the product complies with EU RoHS 2 Directive 2011/65/EU. The components used are UL and cUL certified.

General Characteristics

Number of Contacts

2 + PE

Termination

Screw or Solder Tab 3/16"

Flammability

UL94V-0

Environmental

Complies with EU RoHS 2 Directive 2011/65/EU

Electrical Characteristics

Rated Operating Voltage

250VAC

Test Voltage (AC RMS)

3200V

Current Carrying Capacity

25A

Typical Contact Resistance

≤3mΩ

Insulation Resistance (initial)

≥2GΩ

Insulation Resistance (after damp heat test)

≥1GΩ

Climatic Characteristics

Protection Class

IP20

Operating Temperature

-25°C ~ +75°C (-13°F ~ +167°F)

Mechanical Characteristics

Weight**
- Chassis Connector
- Cable Plug

12g (0.026lb)
32g (0.070lb)

Typical Cable Retention Force

200N
(Subject to cable material and O.D.)

Cable O.D. Range
- Blue Chuck Clamp
- Black Chuck Clamp

5mm - 7.5mm (0.19" - 0.29")
7.5mm - 15mm (0.29" - 0.59")

Conductor Size
- Screw Terminals

2.5mm² (AWG14)

Materials

Connector Shell / Finish

PA66 GF30 / Black

Insulators

PA66 GF30

Cable Boot / Backshell

Santoprene / PBT

Cable Clamp (Chuck)

P.O.M

Contact Plug
- Material / Plating

Brass / Silver

Contact Chassis
- Material / Plating

Phosphor Bronze / Silver
