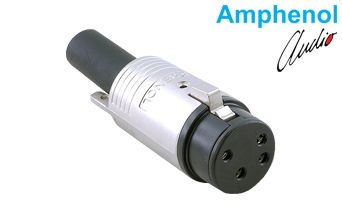

Terminates the loudspeaker line in a four-pole metal connector
Female metal connector that carries loudspeaker cable in professional sound installations. Machined contacts and a diecast zinc alloy housing suit stage and studio links that are plugged and unplugged often.
4number of contacts
20 Acurrent carrying capacity
IP40protection grade
-25 °C ~ +75 °Coperating temperature
Key features
Contact designMachined contacts hold the connection through 1000 mating cycles.
TerminationSolder termination accepts loudspeaker cable up to 12 AWG.
Housing and materialsThe diecast zinc alloy housing carries a nickel finish.
DimensionsThe connector measures 86 mm in overall length with a 66.5 mm body length as reference values.
Standards and complianceThe product is rated UL94V-0 for flammability and complies with EU RoHS 2 Directive 2011/65/EU.
Usage areasRadio and TV broadcasting·Professional studios·Sound and PA·Musicians and DJs
