Sets up a locking power connection on the panel

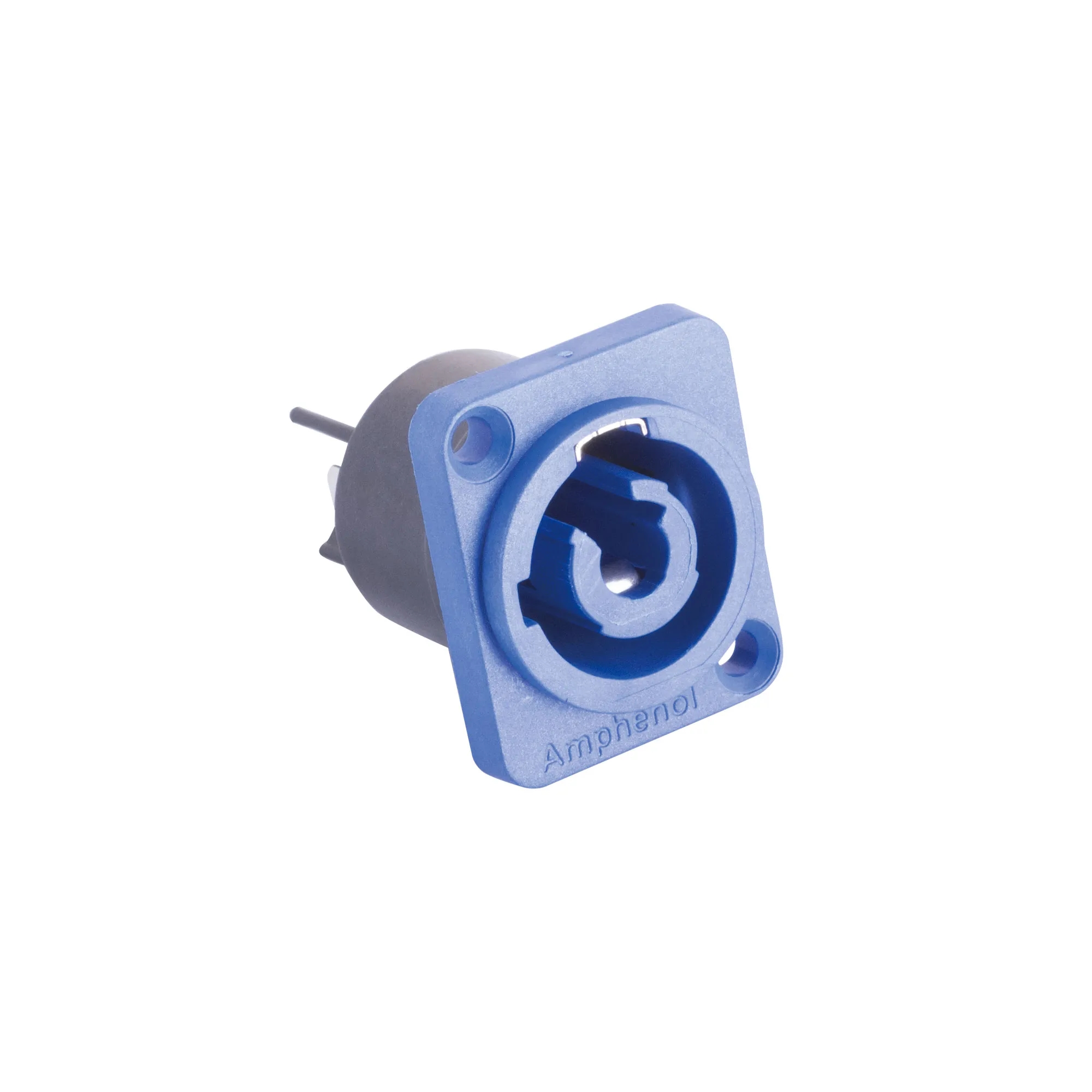

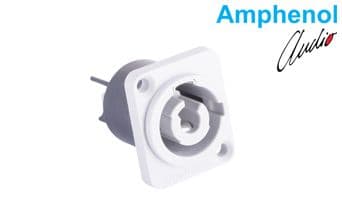

Three-pole chassis connector that mounts on the panel in industrial power distribution. It grips the cable plug with the quick-release lock and keeps the connection in place in vibrating environments.

3pin count

25 Acurrent carrying capacity

250 VACnominal working voltage

IP20protection grade

Panelmounting type

-25 °C ~ +75 °Coperating temperature

Key features

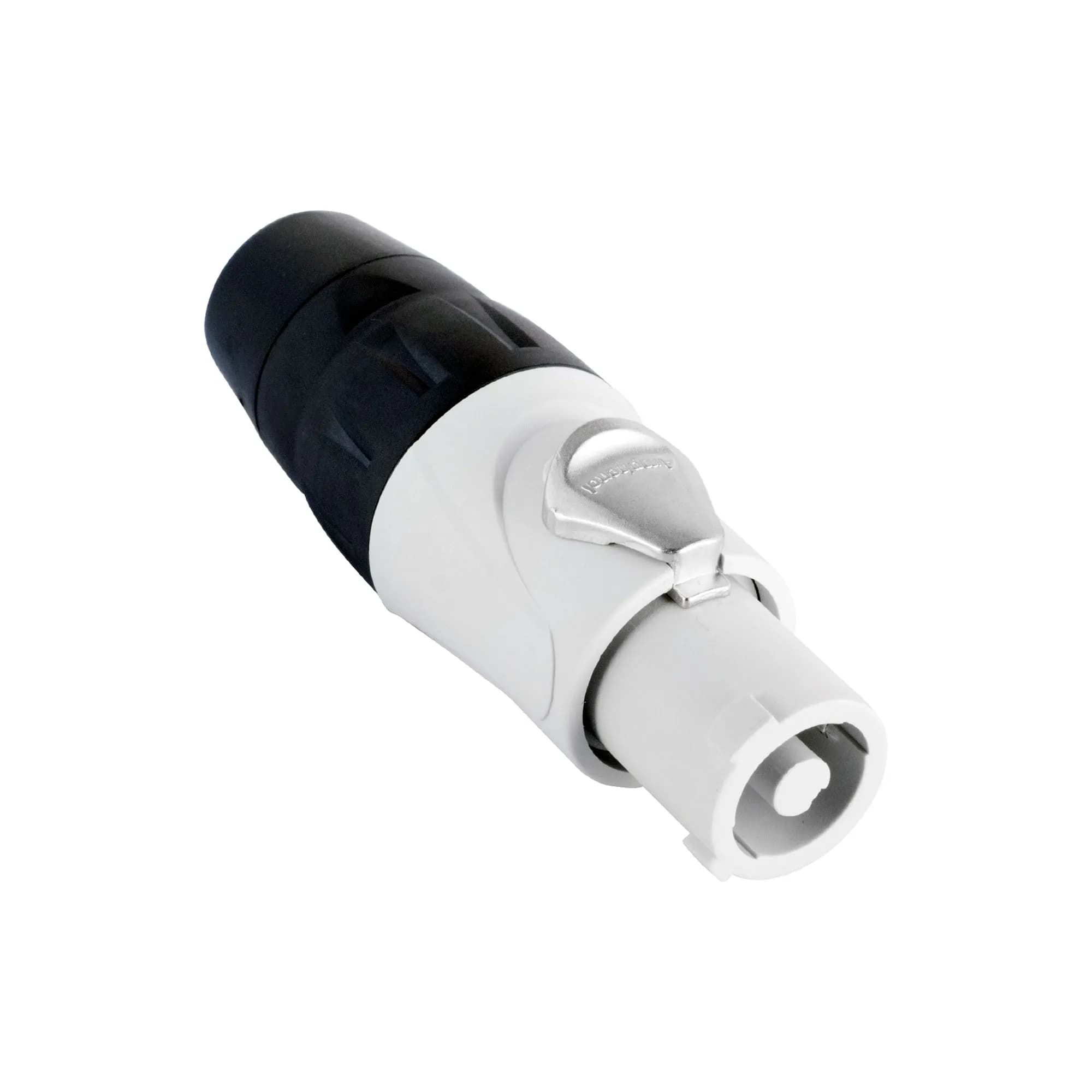

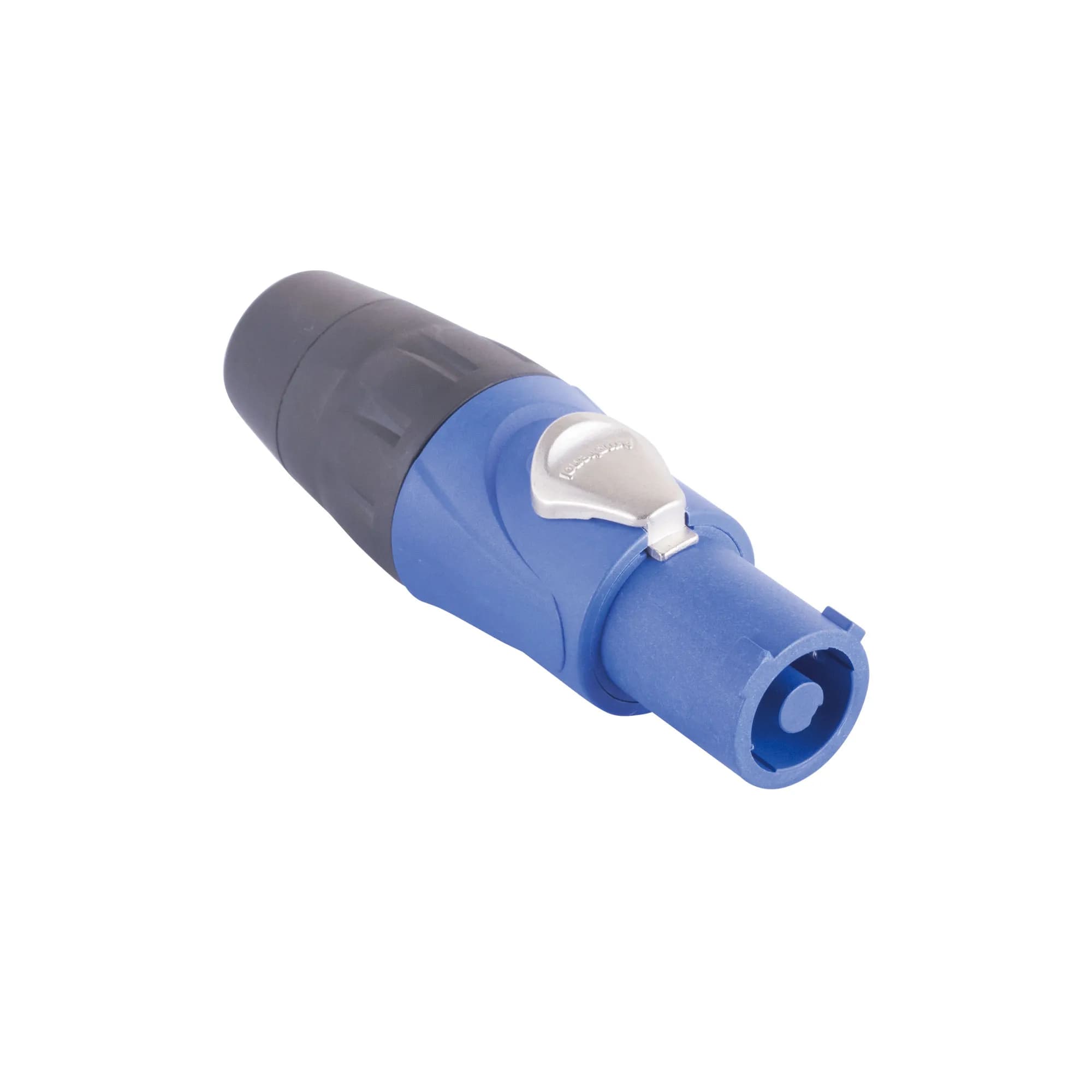

Locking systemThe quick-release lock holds the cable plug in place under vibration.

Contact designTwo power contacts and one PE contact sit on silver-plated phosphor bronze, and typical contact resistance stays at ≤ 3 mΩ.

TerminationThe screw terminal accepts a 2.5 mm² (AWG 14) conductor and the 3/16 inch solder tab opens the second path.

Housing and materialsThe PA66 GF30 shell and insulators form the thermoplastic body, and the chassis connector weighs 12 g.

Electrical enduranceInsulation resistance measures ≥ 2 GΩ initially and ≥ 1 GΩ after the damp heat test, and the test voltage reaches 3200 V.

The housing material is rated UL94 V-0 for flammability and the product complies with EU RoHS 2 Directive 2011/65/EU. The components used are UL and cUL certified.

General Specifications

Number of Contacts

2 + PE

Termination

Screw or 3/16" Solder Tab

Flammability Rating

UL94 V-0

Environmental

Compliant with EU RoHS 2 Directive 2011/65/EU

Electrical Specifications

Nominal Working Voltage

250 VAC

Test Voltage (AC RMS)

3200 V

Current Carrying Capacity

25 A

Typical Contact Resistance

≤ 3 mΩ

Insulation Resistance (initial)

≥ 2 GΩ

Insulation Resistance (after damp heat test)

≥ 1 GΩ

Climatic Specifications

Protection Class

IP20

Operating Temperature

-25°C ~ +75°C (-13°F ~ +167°F)

Mechanical Specifications

Weight
- Chassis Connector
- Cable Plug

12 g (0.026 lb)
32 g (0.070 lb)

Typical Cable Retention Force

200 N
(Depends on cable material and O.D.)

Cable O.D. Range
- Blue Chuck
- Black Chuck

5 mm - 7.5 mm (0.19" - 0.29")
7.5 mm - 15 mm (0.29" - 0.59")

Conductor Size
- Screw Terminals

2.5 mm² (AWG14)

Materials

Connector Shell / Colour

PA66 GF30 / Black

Insulators

PA66 GF30

Cable Boot / Backshell

Santoprene / PBT

Cable Chuck

P.O.M

Contact (Plug)
- Material / Plating

Brass / Silver

Contact (Chassis)
- Material / Plating

Phosphor Bronze / Silver
