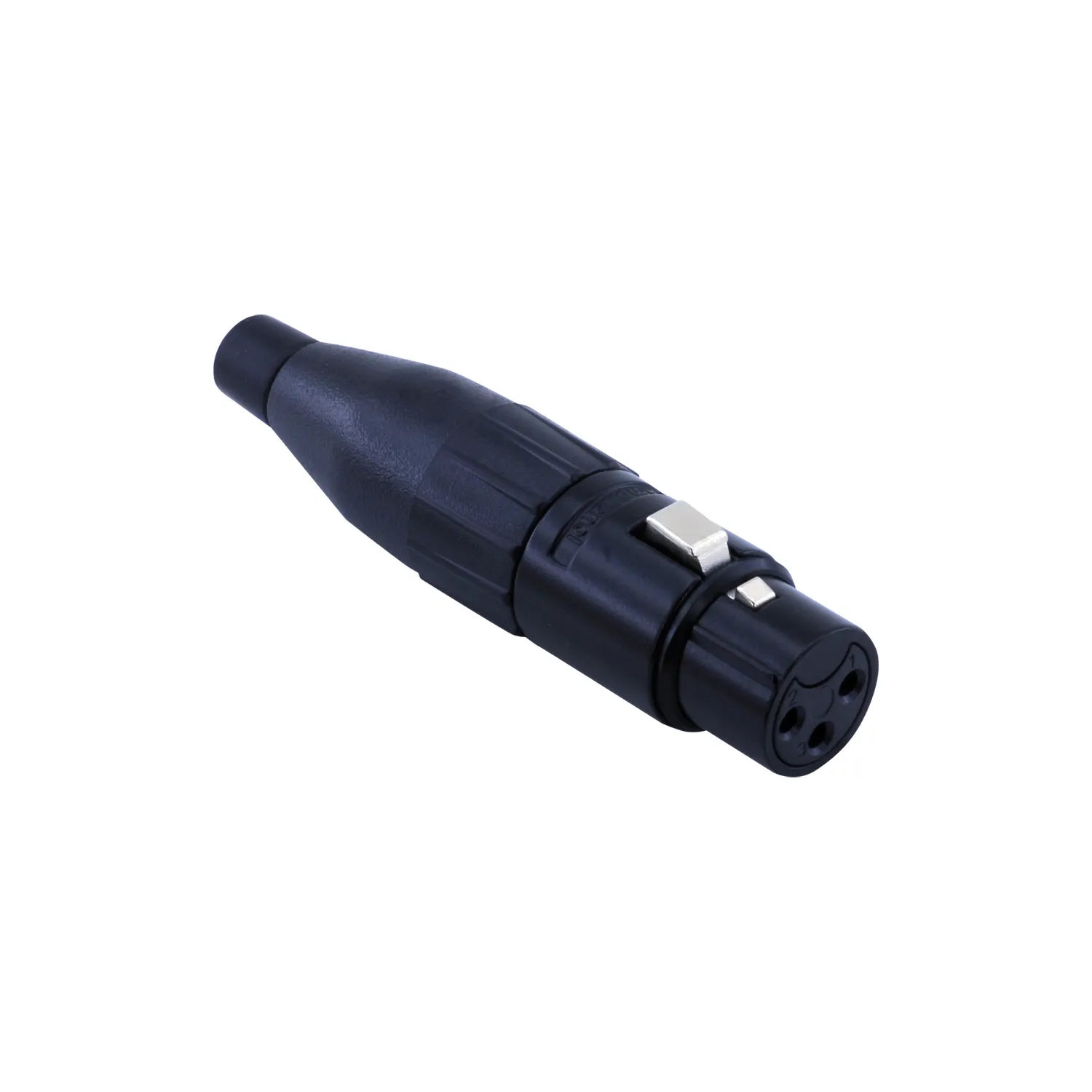

Stock Code: AC3FB
| General Specifications | |
|---|---|
| Number of Contacts | 3 / 4 / 5 / 6A / 7 |
| AC Series Contact Arrangements (front view of pin inserts) |      |
| Termination | Solder |
| Max. Wire Gauge – Stranded wire: Solder | 14AWG / 16AWG / 18AWG / 20AWG |
| Flammability rating (insulating plastics and housings) | UL94V-0 |
| Environment | Compliant with EU RoHS 2 Directive 2011/65/EU |
| Electrical Specifications | |
| Service Voltage RMS | 133V 1 |
| Test Voltage AC RMS | 1400V |
| Current rating: Solder | 15A / 10A / 7.5A / 5A |
| Typical Contact Resistance | ≤3mΩ |
| Insulation Resistance | ≥1GΩ |
| Climatic Specifications | |
| Protection Class | IP40 |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| Mechanical Specifications | |
| Insertion and Withdrawal force | ≥10N – ≤30N |
| Weight – Metal 2 | 36g (0.080lb) / 37g (0.081lb) / 38g (0.083lb) |
| Weight – Thermoplastic 2 | 18g (0.039lb) / 19g (0.041lb) / 20g (0.044lb) |
| Typical Cable retention force | 22Kg to 44Kg (50lb to 100lb) – Depends on cable material and diameter. |
| Cable O.D. range – JAWS clamp (Standard) | 3mm to 6.5mm (0.118" to 0.255") |
| Cable O.D. range – JAWS clamp (Large) | 6.5mm to 8mm (0.255" to 0.314") |
| Mechanical Operations | 1000 mating cycles |
| Materials | |
| Connector shell – Metal shell plating | Diecast Zinc Alloy; Satin nickel or Black polyester |
| Connector shell – Thermoplastic shell finish | Thermoplastic, UL94V-0 Modified PPE Resin, Black |
| Insulators | UL94V-0 PBT Resin or Modified PPE Resin |
| Boot / Backshell finish | UL94V-0 Modified PPE Resin or Machined Brass, Black; other colours available |
| Cable clamp (JAWS) | UL94V-0 Modified PPO Resin (Black) |
