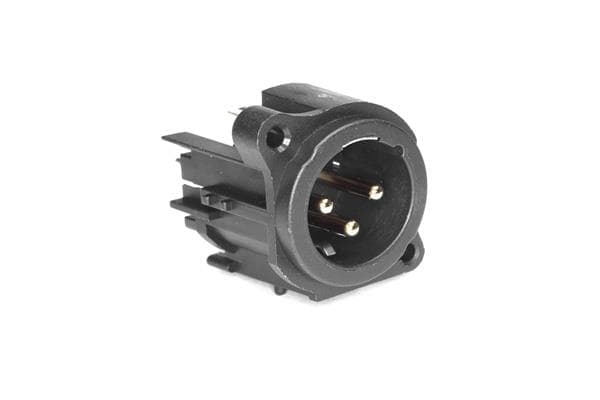

Stock Code: AC3MAV2-AU-B
| General Characteristics | |
|---|---|
| Part Number | AC3MAV2-AU-B |
| Series | AC Series – XLR PCB Chassis Mount Connector |
| No. of Contacts | 3 |
| Gender | Male (pin contacts) |
| Shell Series | A Type |
| Termination | Vertical Printed Circuit Board (PCB) |
| Ground Link | Mating connector shell to chassis, Pin 1 separate ground (ground link option 2) |
| Contact Plating | Gold (gold over nickel) |
| Finish / Colour | Black |
| Packaging | Bulk packed – "B" suffix |
| Comparable Part No. | NC3MAV |
| Electrical Characteristics | |
| Service Voltage (RMS) | 133 V (not suitable for domestic applications above 50 V) |
| Test Voltage (AC RMS) | 1500 V |
| Current Carrying Capacity | 6 A |
| Typical Contact Resistance | 5 mΩ |
| Insulation Resistance (initial) | 2 GΩ |
| Insulation Resistance (after damp heat test) | 1 GΩ |
| Mechanical and Environmental Characteristics | |
| Protection Class | IP40 |
| Operating Temperature | -25°C ~ +75°C (-13°F ~ +167°F) |
| Mechanical Operations | 1500 mating cycles |
| Retention Spring Separating Force | 20 N |
| Max. Mounting Screw Torque | 1.5 Nm |
| Fastening (A Type) | Self-tapping PT screw, thread 2.9 × 1.06, tri-rondular configuration |
| Weight | 14 g (0.030 lb) – approximate, packaging not included |
| Materials | |
| Insulators | PA6.6 + 25% glass fibre reinforced, UL94V-0 |
| Male Contact Material | Brass |
| Male Contact Plating | Gold over nickel |
| Ground Element | Spring steel |
| Flammability Rating of Plastics | UL94V-0 |
| Compliance | |
| Environmental | Complies with EU RoHS 2 Directive 2011/65/EU |
| Applications | |
| Areas of Use | Radio and TV broadcasting Professional studios Sound reinforcement and PA Musicians and DJs Special applications |
